HERCULES 531-SWH FOOT SWITCH
Quick Overview
Manufactured By: HERCULES
Manufacturer Part Number: 531-SWH
IMS Product Code: 1997336
Packaging: Sold Individually
Description:

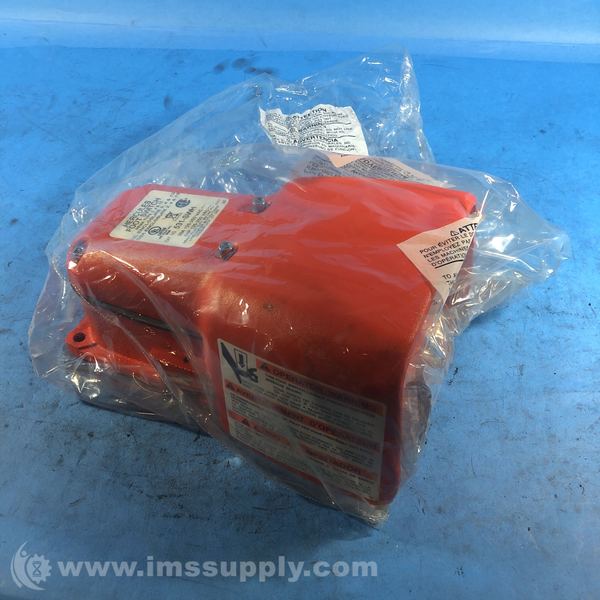

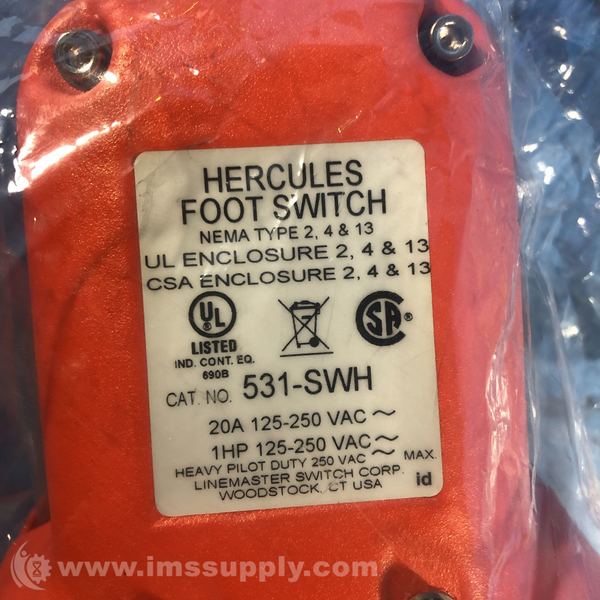

HERCULES 531-SWH Foot Switch
Heavy duty foot switch with momentary action, SPDT contact configuration, and cast iron housing.
Specifications
- Switch Type: Electrical
- Actions: Single Stage Momentary
- Circuitries: SPDT (Form "C")
- Cable Entries: 3/4"-14 NPT threaded entry
- Housing Colors: Orange
- Housing Materials: Cast Iron
- Shields & Guards: Full shield
- Switch Connections: Screw terminal
- Electrical Ratings: 20 A 125-250 VAC, 1 H.P. 125-250 VAC, Heavy Pilot Duty 250 VAC Max.
- Series: Hercules
- AC Contact Rating: 20 A @ 125 to 250 V
- Contact Form: SPDT
- Horsepower: 1 HP @ 125 to 250V AC
- NEMA Enclosure Rating: 2; 4; 13
- Number of Pedals: 1
- Overall Depth: 9 in
- Overall Height: 4.37 in
- Overall Width: 5.88 in
- Power Source: Electrically Corded
- Standards: CSA; RoHS; UL Listed
- Switch Action: Momentary
- Termination Connection Type: Screw Terminal
- Country of Origin: USA
- Type: Heavy Duty
- Voltage Rating: 125/250 VAC
- Power Rating: 1 hp
- Enclosure: NEMA 2/4/13/IP56
- Actuator: Pedal
- Dimensions: 4.37 in H x 5.88 in W x 9 in D
- Amperage Rating: 20 A
