HIGHLY ELECTRIC CO. Z15G1307 SNAP ACTION LIMIT SWITCH
Quick Overview
Manufactured By: HIGHLY ELECTRIC CO.
Manufacturer Part Number: Z15G1307
IMS Product Code: 2136154
Packaging: Sold Individually
Description:

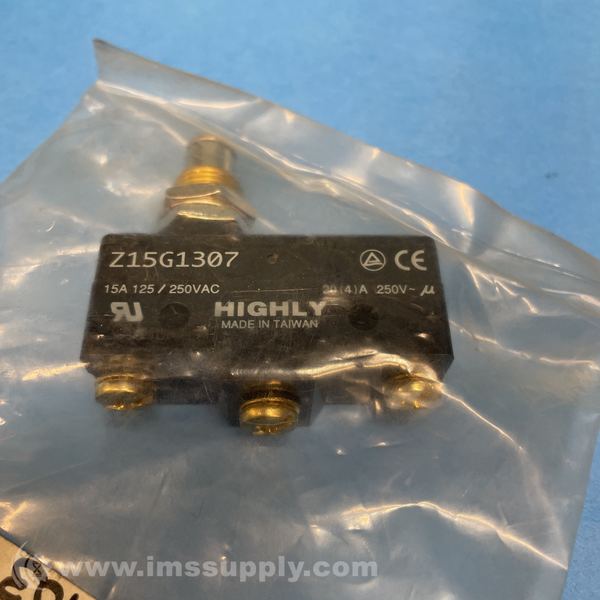

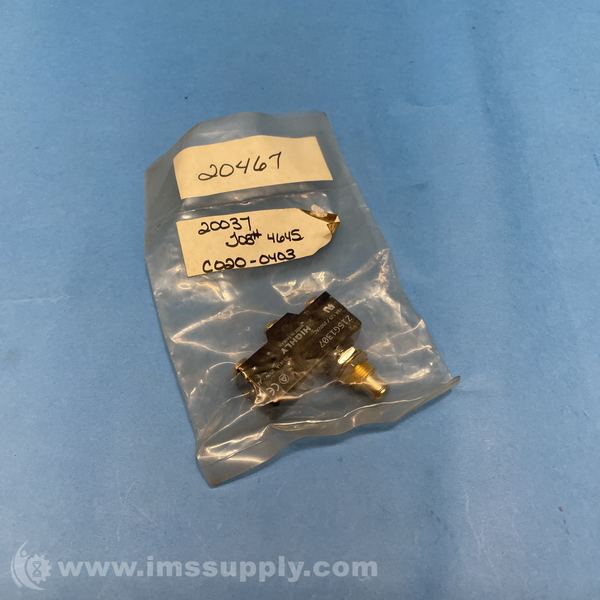

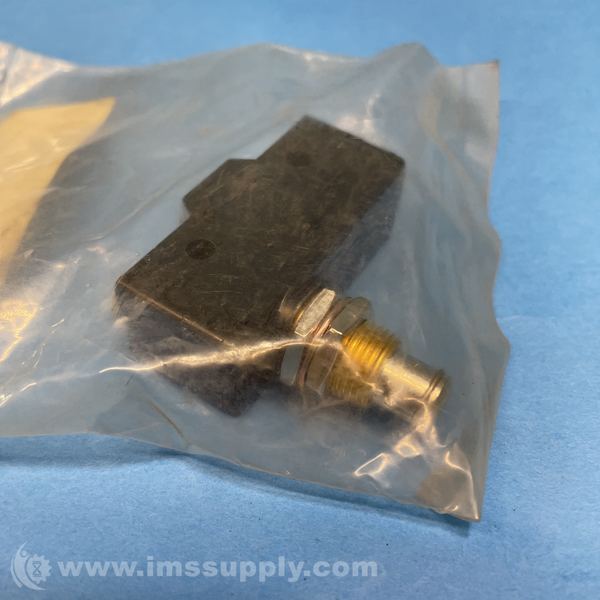

Highly Electric Co. Z15G1307 Snap Action Limit Switch
Snap action limit microswitch rated for 15A at 125/250VAC with SPDT configuration and pin terminal.
Specifications
- Maximum Amperage: 15A
- Type: Limit Microswitch Snap Action
- AC Contacts Rating (Resistive): 20A / 250V AC
- AC Contacts Rating (Inductive): 4A / 125V AC
- Contacts Configuration: SPDT
- Switching Method: ON-(ON)
- Number of Positions: 2
- Stable Positions: 1
- IP Rating: IP40
- Leads: M4 screws
- Body Dimensions: 49.2x17.45x24.2mm
- Operating Temperature: 0...55°C
- Operating Force: 3.5N
- Mechanical Durability: 1000000 cycles
- Electrical Life: 100000 cycles
- Min. Insulation Resistance: 0.1GO
- Max. Contact Resistance: 15mO
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
