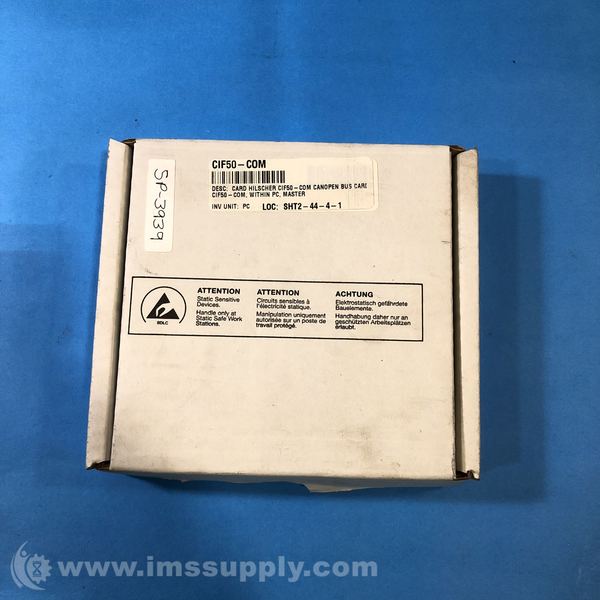

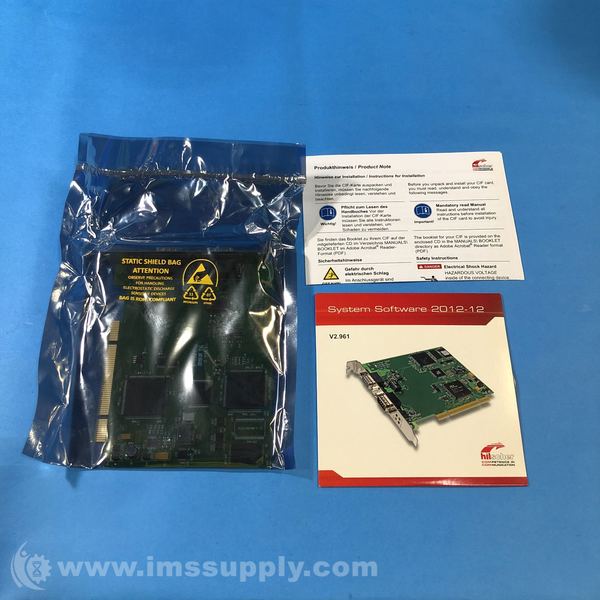

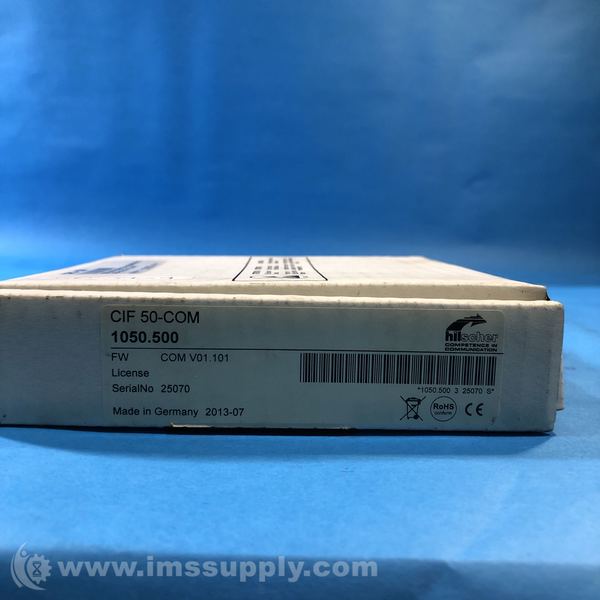

HILSCHER CIF50-COM PCI CANOPEN MASTER CARD
Quick Overview
Manufactured By: HILSCHER
Manufacturer Part Number: CIF50-COM
IMS Product Code: 1942125
Packaging: Sold Individually
Description:
Hilscher CIF50-COM PCI CANopen Master Card
PCI CANopen Master Communication Interface Card
Specifications
- Card format: PC
- Bus interface: PCI
- Dual-Port-Memory: 8 KByte
- Interrupt: 3-7, 9-12, 14, 15 via plug and play
- CANopen interface: CiA DS-102
- Transmission rate: 10 kBaud to 1 MBaud
- Controller: SJA 1000
- Interface: ISO 11898, optically isolated
- Connector: DSub-male connector 9-pin
- Diagnostic Interface: RS232C, non-isolated
- Display: RDY, RUN, STA, ERR
- Operating voltage: 5 V ±5% / 500 mA +12 V ±5% / 50 mA -12 V ±5% / 50 mA
- Operating temperature: 0 degrees C - 55 degrees C
- Dimensions (LxWxH): 134 x 107 x 20 mm
- Weight approx.: 130 g
- CE sign: Yes
- Product series: CIF
- PC-buses: PCI
