HIOKI 2103HL METER RELAY
Quick Overview
Manufactured By: HIOKI
Manufacturer Part Number: 2103HL
IMS Product Code: 1810521
Packaging: Sold Individually
Description:

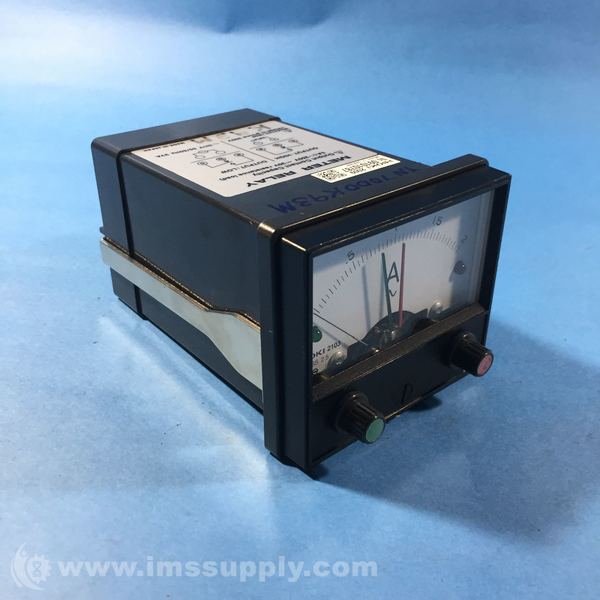

Hioki 2103HL Meter Relay
Specifications:
- Indicator shape: φ 0.3 mm (0.01 in) pin
- Accuracy class: [2103H/L/HL]: 2.5 %
- Setting accuracy: Within 1.5 % of the full scale value (Independent of meter section)
- Dead-zone width: Within 0.5 % of the scale length
- Indicator operating range: Within the scale (passing indicator needle system)

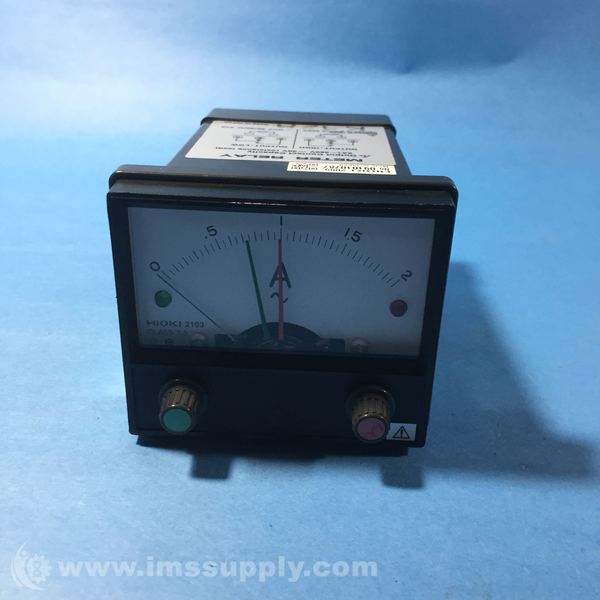

- Setting indicator (shape and color): Spear shape
- H indicator (upper-limit side): Red, L indicator (lower-limit side): Green
- Setting indicator setting range: Within the all range of scale for both H and L
- Minimum H/L space: Within 3 % of the scale length
- Delay time from power on: Approx. 2 s

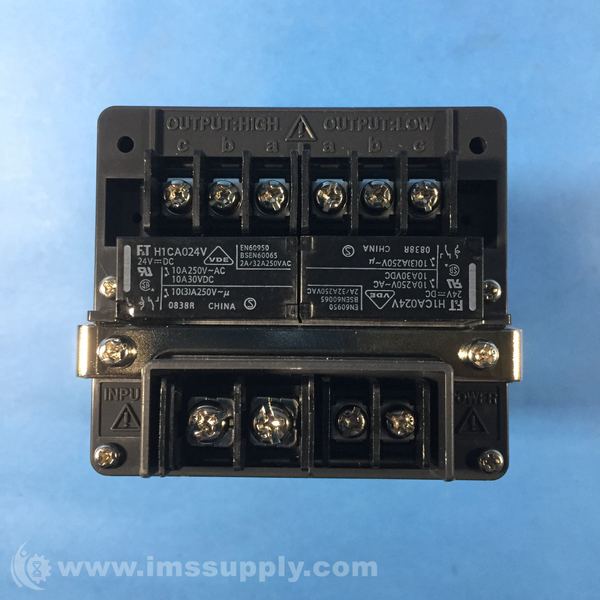

- Relay contact structure: One transfer for both H and L
- Relay output response: Approx. 0.5 s (time constant)

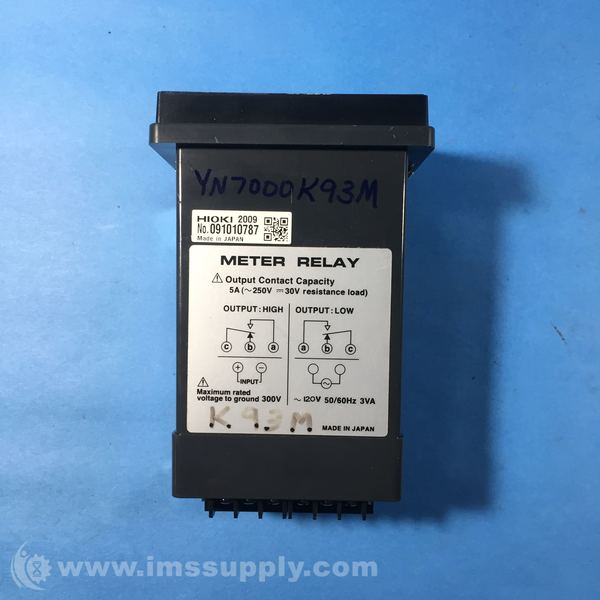

- Max. current of relay contact: 5 A (Under condition of 250 V AC, 30 V DC, resistance load)
- Power supply: 100 V/200 VAC (to be specified at the time of ordering) 50/60 Hz,
- 3 VA max.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
