HIRSCHMANN 8TX RAIL SWITCH
Quick Overview
Manufactured By: HIRSCHMANN
Manufacturer Part Number: 8TX
IMS Product Code: 2034220
Packaging: Sold Individually
Description:

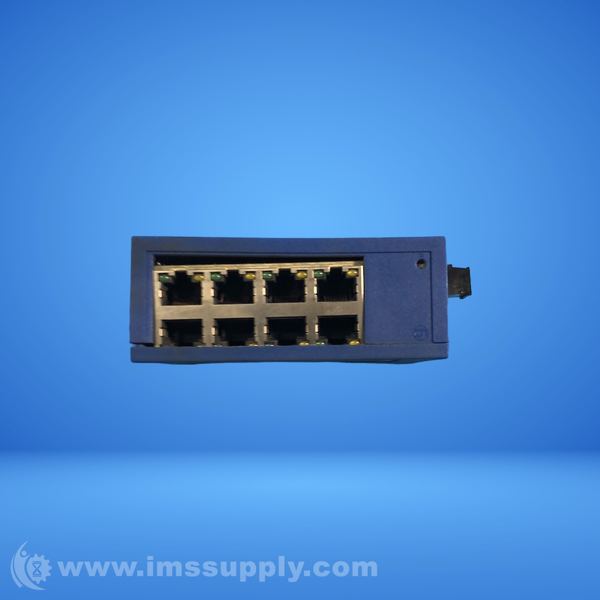

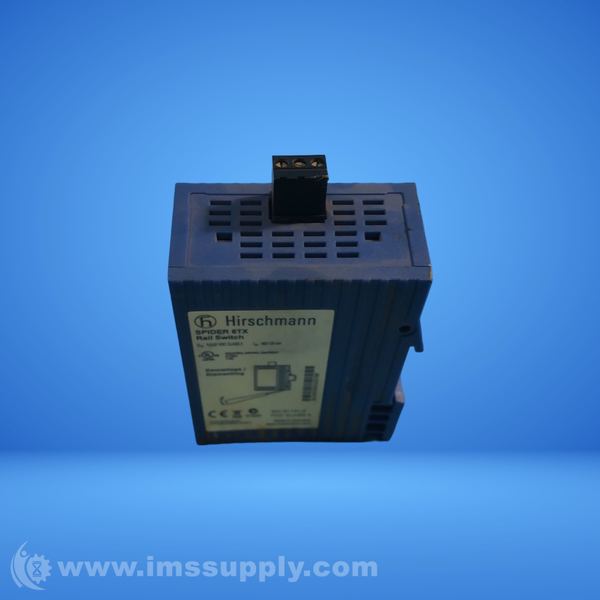

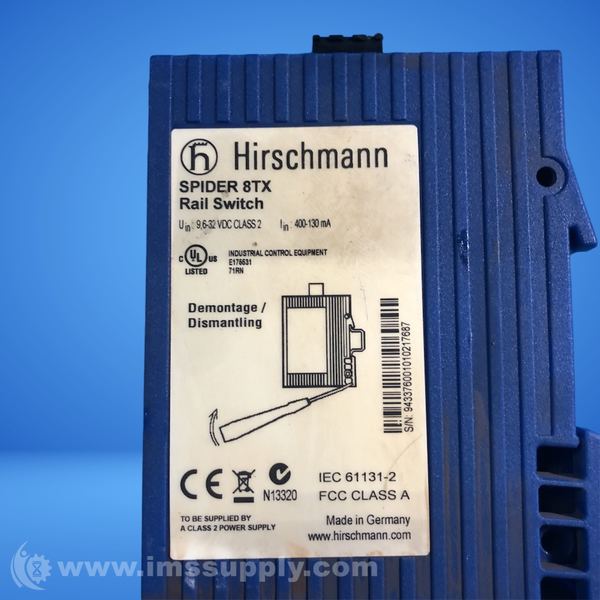

Hirschmann 8TX Rail Switch
Unmanaged Industrial Ethernet Rail Switch with 8 x 10/100BASE-TX ports
Specifications
- Dimensions (W x H x D): 25 mm x 114mm x 79 mm
- Weight: 177 g
- Operating Voltage: 9.6 VDC - 32 VDC
- Current Consumption at 24 V DC: max. 160 mA
- Power Consumption: max. 3.9 W; 13.3 Btu(IT)/h at 24 VDC
- Operating Temperature: 0 C to +60 C
- Storage/Transport Temperature: -40 C to +70 C
- Relative Humidity (non-condensing): 10% to 95%
- MTBF: 105.7 years
- Protection Class: IP 30
- Network Size - Length of Cable: 0 - 100 m
- Type: ETHERNET SWITCH (UNMANAGED)
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
