HIRSCHMANN 933029-100 SOLENOID VALVE CONNECTOR
Quick Overview
Manufactured By: HIRSCHMANN
Manufacturer Part Number: 933029-100
IMS Product Code: 1810295
Packaging: Sold Individually
Description:

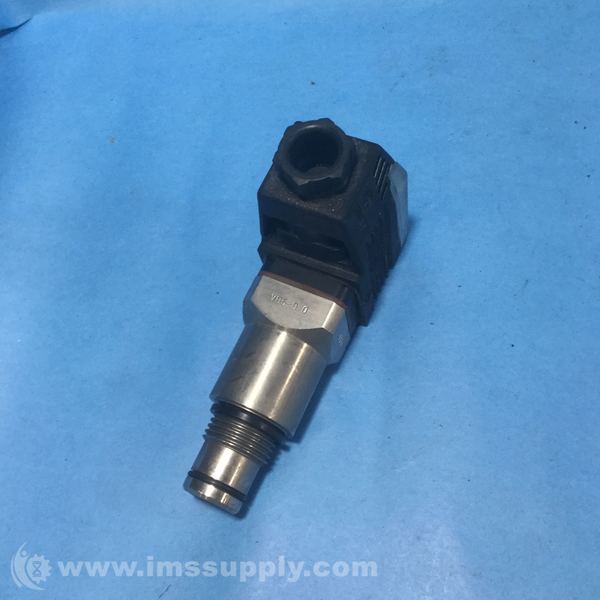

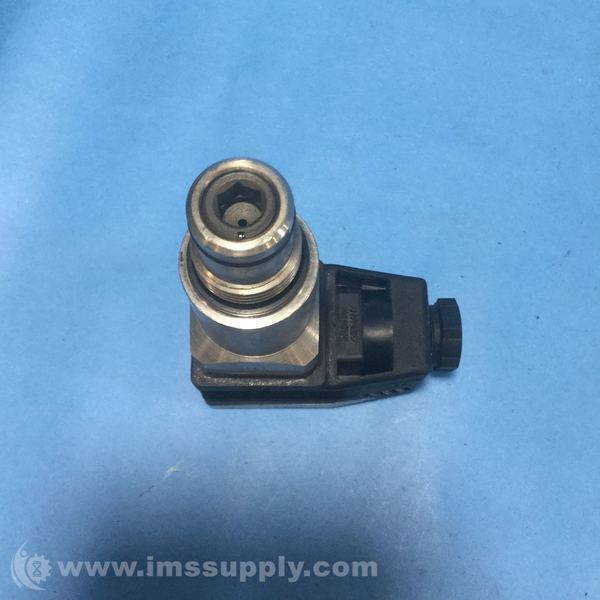

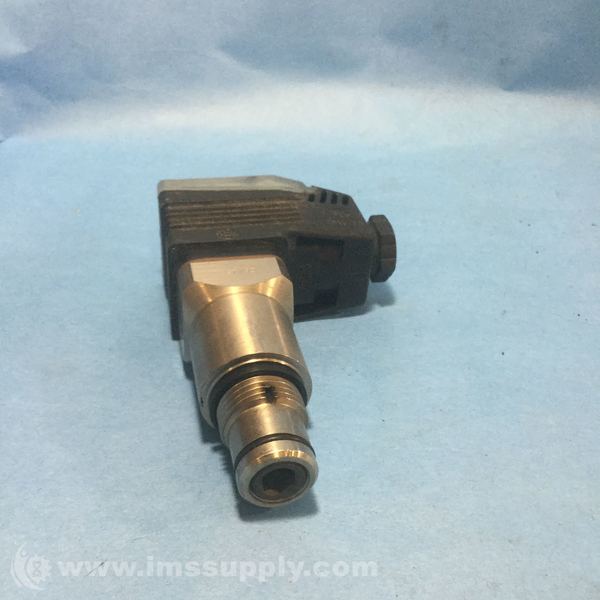

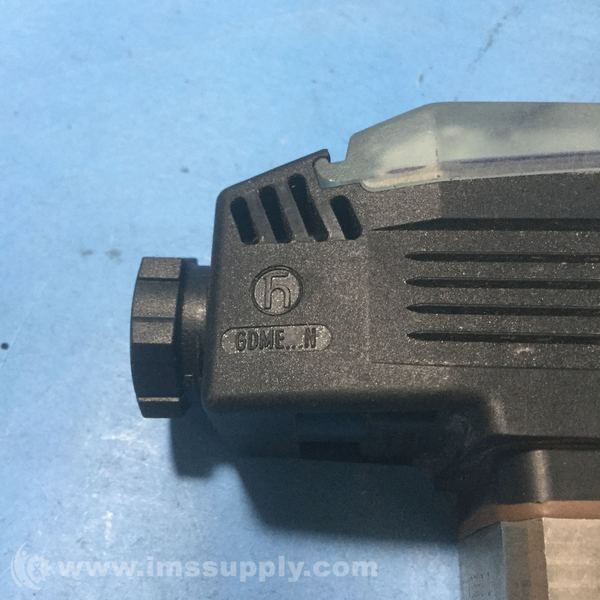

Hirschmann 933029-100 Solenoid Valve Connector
A Form A DIN 43650 / ISO 4400 (EN 175301-803) connector with 2 + Ground poles, PG11 cable entry, and screw termination. Black housing with transparent cover.
Specifications
- Housing Color: Black
- Type of Contact: screw termination / cable shoe / cable eye
- Contact Spacing: 18 mm
- Number of Poles: 2 Poles + Ground
- Cable Entry: PG 11 - Accommodates 4.5 mm to 11 mm cable
- Maximum Conductor Size: 1.5 mm2
- Pin Dimensions: 6.3 x 0.8mm, 4.8 x 0.8mm
- Center Screw: M3 x 40
- Rated Current: 16 amps
- Operating Voltage: 400 VAC / 230 VDC
- Operating Temperature: -13 F to +185 F
- Protection Class: IP 65
- Contact Resistance: < / = 10 mOhm
- Insulation Resistance: > 10 ^ 9 Ohm
- Contact Plating: Copper / Tin
- Contact Bearer Material: Glass Fiber Reinforced Polyamide
- Contact Bearer Housing: Glass Fiber Reinforced Polyamide
- Inflammability Class Housing: UL 94 V-0
- Inflammability Class Contact: UL 94 V-0
- Approvals: VDE, SEV, RoHS
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
