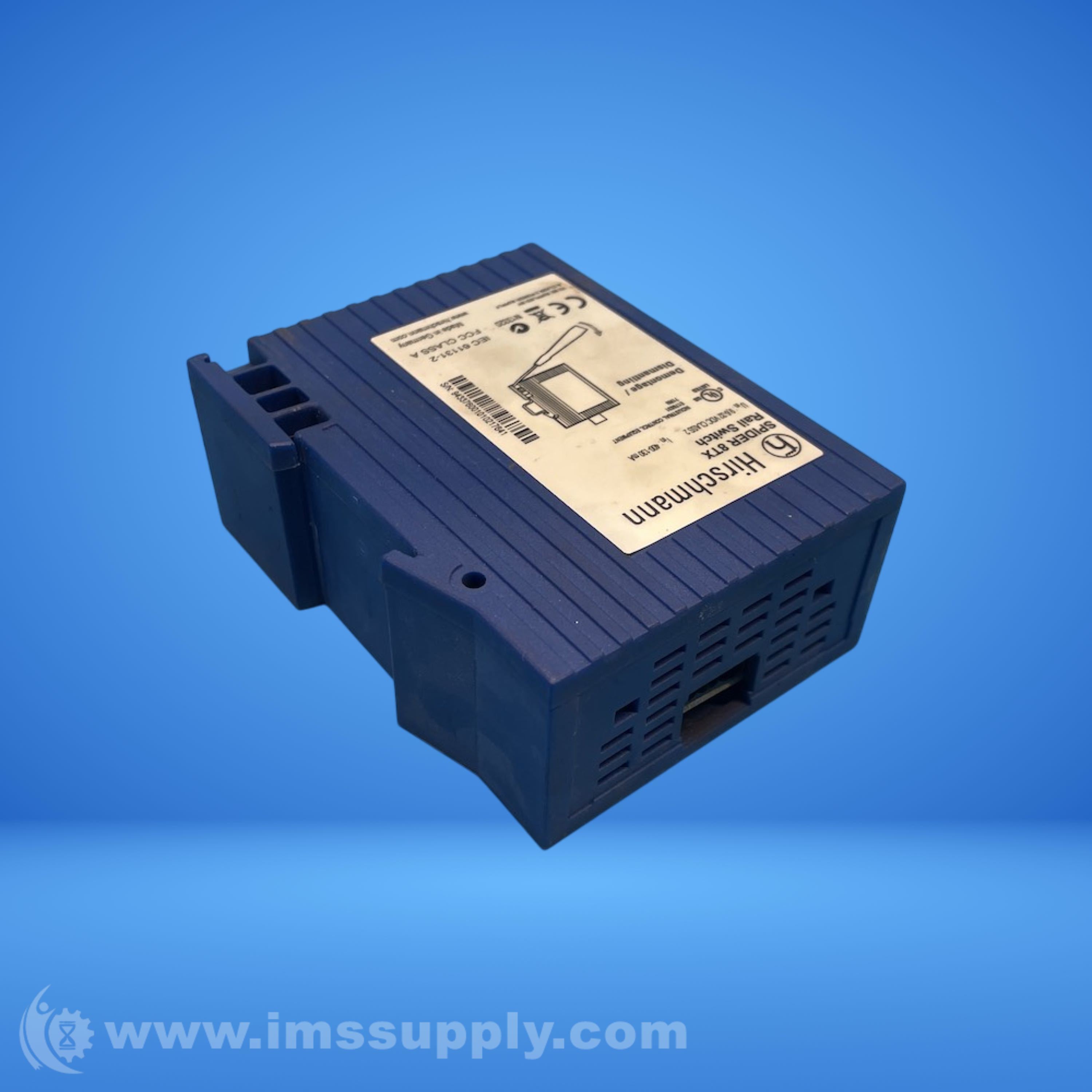

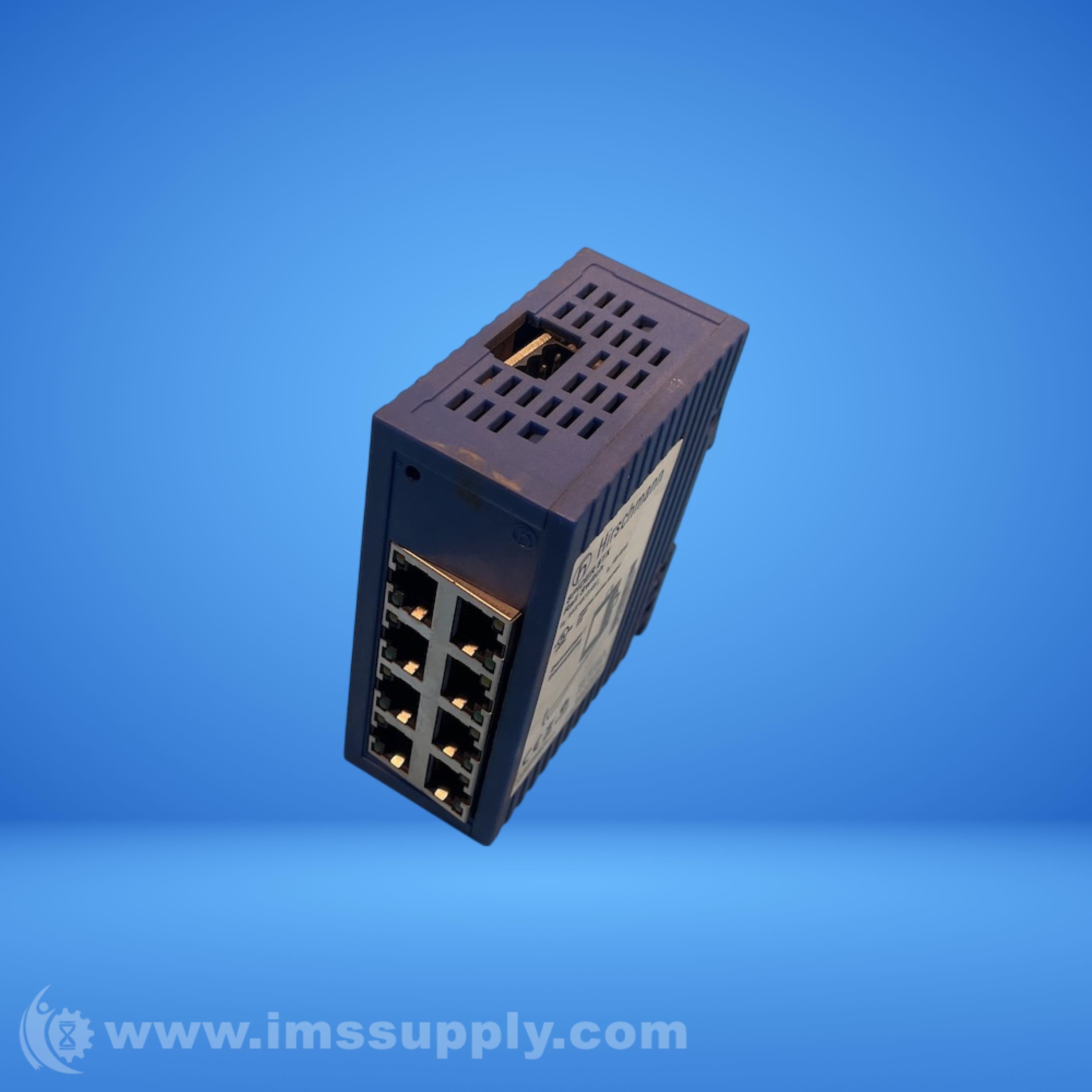

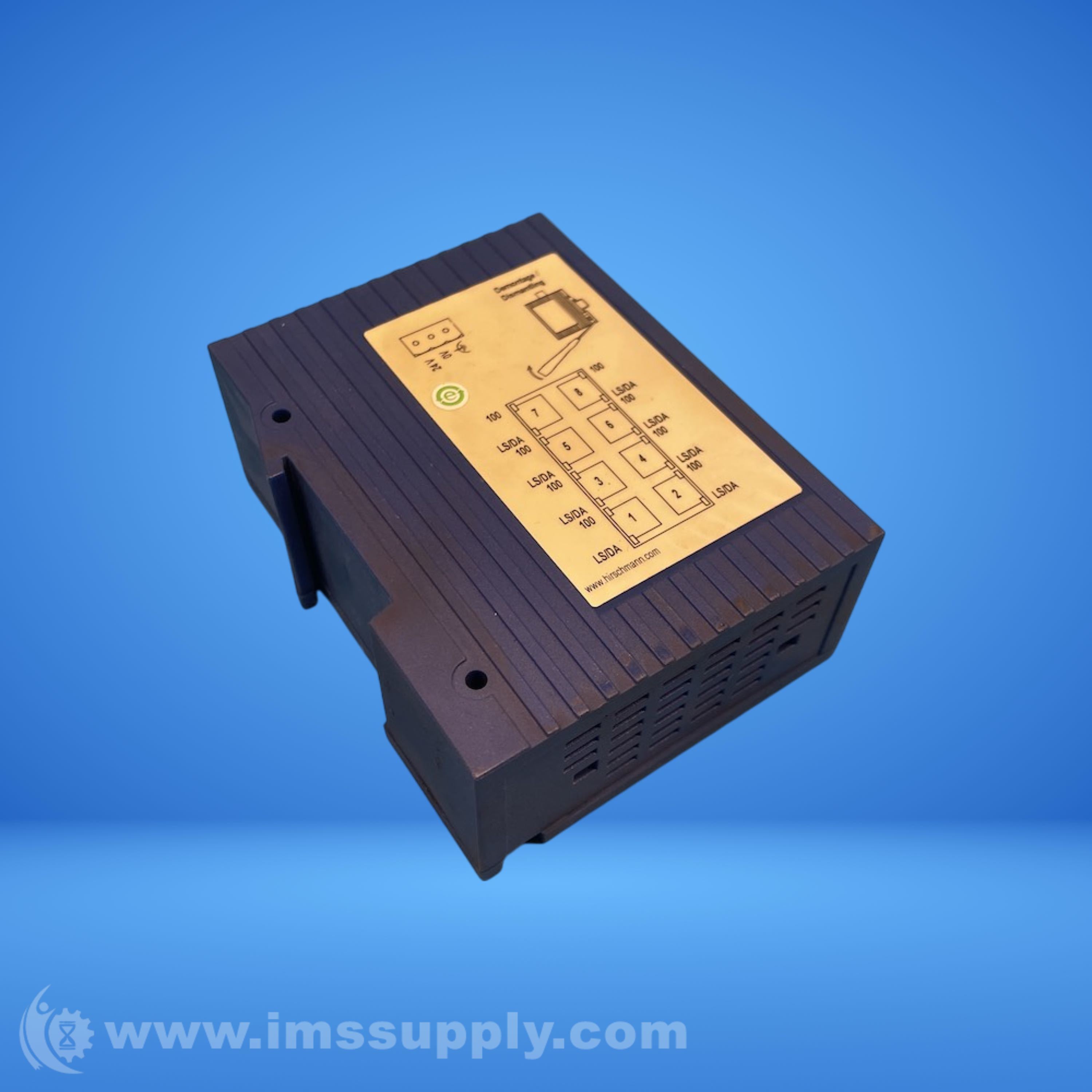

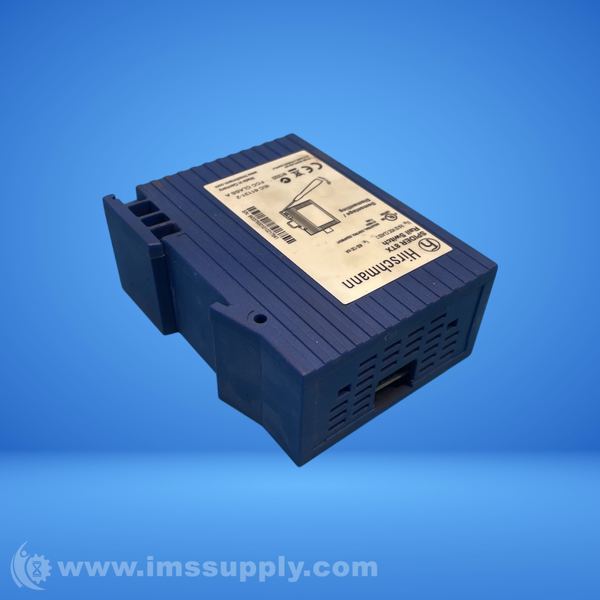

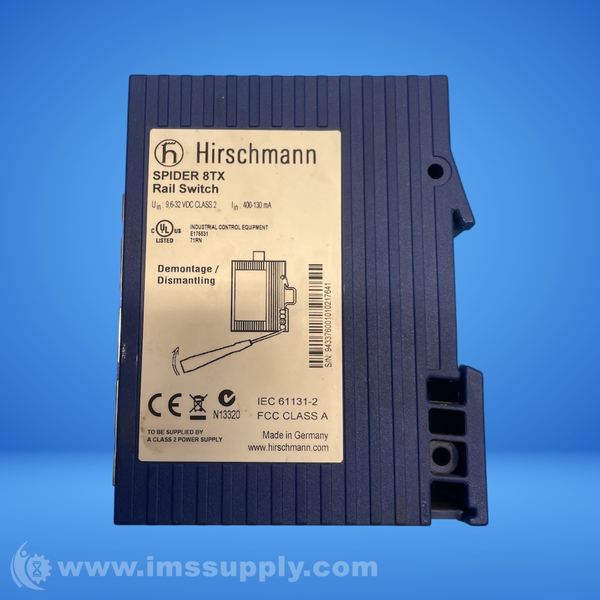

HIRSCHMANN SPIDER 8TX UNMANAGED ETHERNET SWITCH
Quick Overview
Manufactured By: HIRSCHMANN
Manufacturer Part Number: SPIDER 8TX
IMS Product Code: 2150367
Packaging: Sold Individually
Description:
Hirschmann SPIDER 8TX Unmanaged Ethernet Switch
Hirschmann SPIDER 8TX is an unmanaged Industrial ETHERNET Rail-Switch featuring store and forward switching mode, Ethernet and Fast-Ethernet (10/100 Mbit/s), 8 x 10/100BASE-TX, TP-cable, RJ45 sockets, auto-crossing, auto-negotiation & auto polarity.
Specifications
- Power supply/signaling contact: 1 plug-in terminal block, 3-pin, no signal contact
- Network size - Length of cable Twisted pair (TP): 0 - 100 m
- Network size - Cascadibility Line - / star topology: any
- Power requirements Operating voltage: 9.6 VDC - 32 VDC
- Current consumption at 24 V DC: max. 160 mA
- Power consumption: max. 3.9 W; 13.3 Btu(IT)/h at 24 VDC
- Service Diagnostics: LEDs (power, link status, data, data rate)
- Ambient conditions Operating temperature: 0 C to +60 C
- Storage/transport temperature: -40 C to +70 C
- Relative humidity (non-condensing): 10% to 95%
- MTBF: 105.7 years
- Mechanical construction Dimensions (W x H x D): 25 mm x 114mm x 79 mm
- Mounting: DIN Rail
- Weight: 177 g
- Protection class: IP 30
- Mechanical stability IEC 60068-2-27 shock: 15 g, 11 ms duration, 18 shocks
- IEC 60068-2-6 vibration: 3.5 mm, 3 Hz - 9 Hz, 10 cycles, 1 octave/min.; 1g, 9 Hz - 150 Hz, 10 cycles, 1 octave/min.
- EMC interference immunity EN 61000-4-2 electrostatic discharge (ESD): 6 kV contact discharge, 8 kV air discharge
- EN 61000-4-3 electromagnetic field: 10 V/m (80 - 1000 MHz)
- EN 61000-4-4 fast transients (burst): 2 kV power line, 4 kV data line
- EN 61000-4-5 surge voltage: power line: 2 kV (line/earth), 1 kV (line/line), 1 kV data line
- EN 61000-4-6 conducted immunity: 10 V (150 kHz - 80 kHz)
- EMC emitted immunity FCC CFR47 Part 15: FCC CFR47 Part 15 Class A
- EN 55022: EN 55022 Class A
- Approvals Safety of industrial control equipment: cUL 508
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
