HOKUYO UST-05LN SCANNING LASER RANGEFINDER
Quick Overview
Manufactured By: HOKUYO
Manufacturer Part Number: UST-05LN
IMS Product Code: 2165020
Packaging: Sold Individually
Description:

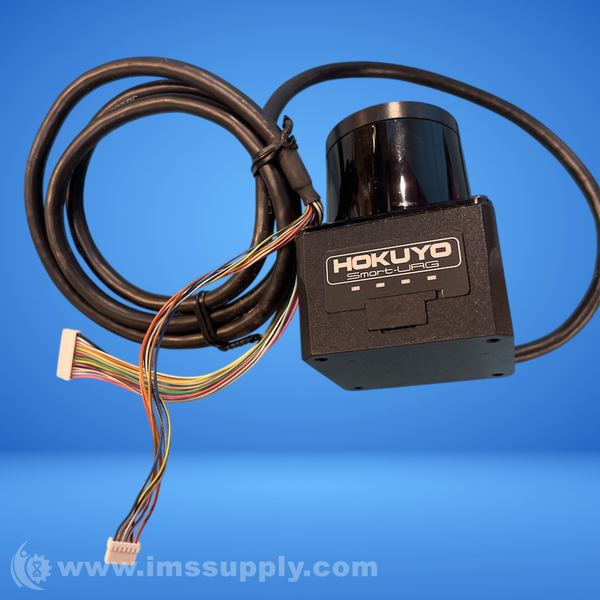

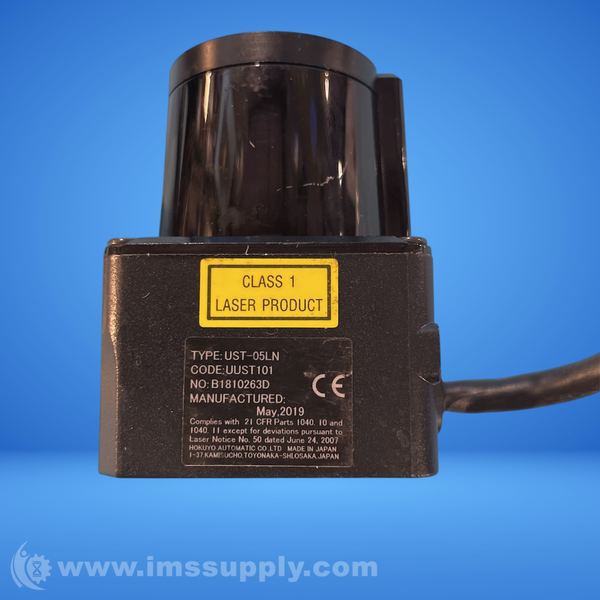

HOKUYO UST-05LN Scanning Laser Rangefinder
The UST-05LN scanning laser rangefinder is a small, accurate, high-speed device for obstacle detection. With a USB interface, the device can be easily programmed to set three area detection output zones with real-time detection in a 270� field of view up to a distance of 5 meters with millimeter resolution.
Specifications
- Light Source: Laser semiconductor (905nm), Laser class 1
- Scanning Range: 0.06m - 5m, 270� (white Kent sheet) 0.06m - 2m, 270� (diffuse reflectance 10% )
- Measuring Accuracy: �40mm
- Angular Resolution: 0.5� (360�/720 steps)
- Scanning Frequency: 40Hz (motor speed 2400rpm)
- Multi Echo Function: N/A
- Communication: USB
- Power Source: DC 12V/DC 24V (operation range 10 to 30V, ripple within 10%)
- Power Consumption: 150mA or less (during start up about 300mA is necessary.)
- Ambient Illuminance: Less than 15,000lx
- Protective Structure: IP65
- Weight: 130g
- Size (W X D X H) MM: 50 � 50 � 70
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
