HONEYWELL AP5210-30 PRESSURE SENSING SWITCH
Quick Overview
Manufactured By: HONEYWELL
Manufacturer Part Number: AP5210-30
IMS Product Code: 1877073
Packaging: Sold Individually
Description:

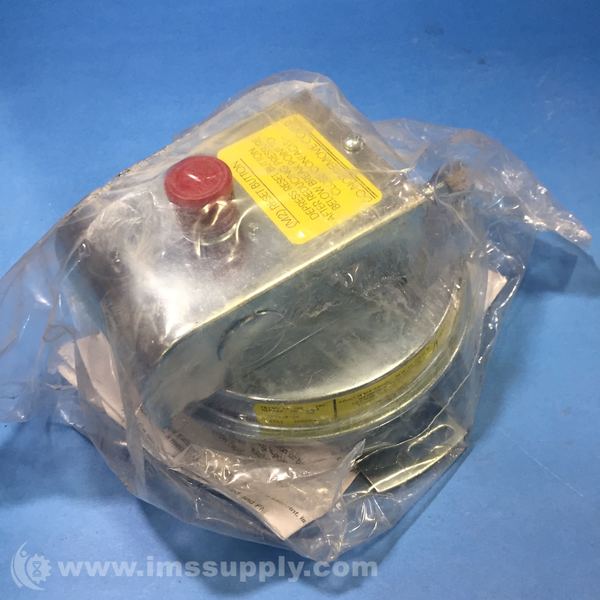

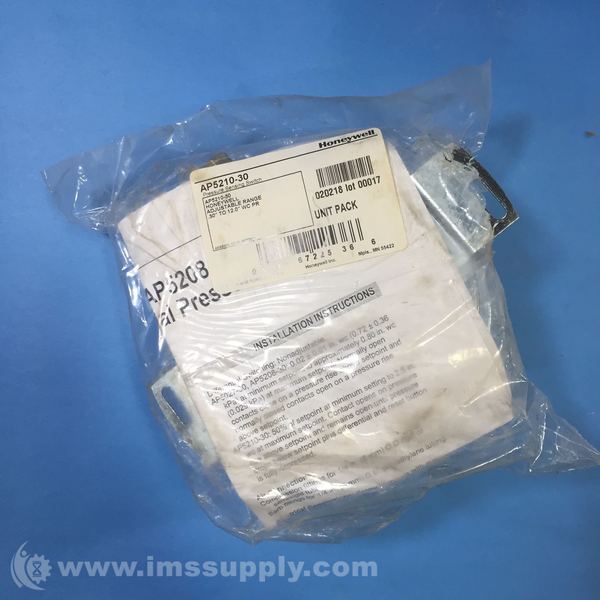

Honeywell AP5210-30 Pressure Sensing Switch
Adjustable pressure switch with manual reset, SPNC configuration, and 0.3 to 12.0 inches WC setpoint range.
Specifications
- Adjustable Range: .30" To 12.0" WC
- Setpoint Range: 0.30 to 12.0 WC (0.0108 to 2.98 KPA)
- Switching Configuration: SPST N.C.
- Reset Function: Manual Reset
- Type: Adjustable Differential
- Operator Type: Diaphragm
- Operating Pressure Rating: 0.5 PSI
- Differential Pressure Rating: 0.5 PSI
- Pressure Media: Air
- Contact Configuration: SPNC 2 Circuit
- Contact Rating: 278 Volt Amp 24 Volt AC, 300 Volt Amp 120 to 277 Volt AC
- Connection Type: 1/4 Inch Compression
- Enclosure Material: Metal
- Approval: UL, CSA, FM
- Overall Dimension: 5 Inch Diameter x 3.1 Inch Depth x 5.55 Inch Height
- Temperature Rating: -40 to 190 Deg F
- Electrical Connection: #8-32 Screw Terminal with Cup Washer
