HONEYWELL BZ-2RW822-A2 SNAP ACTION SWITCH
Quick Overview
Manufactured By: HONEYWELL
Manufacturer Part Number: BZ-2RW822-A2
IMS Product Code: 1747383
Packaging: Sold Individually
Description:

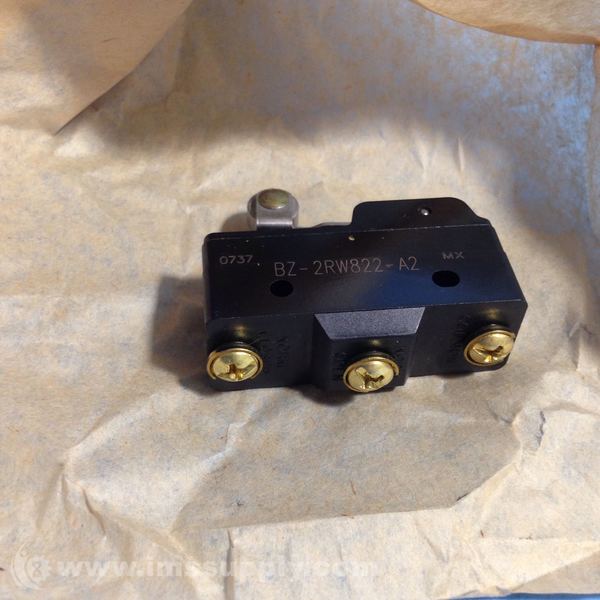

Honeywell BZ-2RW822-A2 Snap Action Switch
Honeywell BZ-2RW822-A2 is a snap action switch with roller lever actuator, SPDT contact configuration, and screw electrical connection. It is part of the BZ Series and has a phenolic body material.
Specifications
- Actuator Style: Roller Lever
- AC Contact Rating: 15 A @ 125 to 480 V
- Body Material: Phenolic
- Body Width: 1.94 in
- Body Height: 0.95 in
- Body Depth: 0.07 in
- Contact Form: 1NO/1NC
- DC Contact Rating: 0.25 A @ 250 V, 0.5 A @ 125 V
- Differential Travel - Maximum: 0.02 in
- Differential Travel - Minimum: 0.003 in
- Electrical Connection: Screw
- Lever Actuator Length: 1.03 in
- Mounting Hole Diameter: 1/8 in
- Operating Force - Maximum: 6 ozf
- Operating Temperature - Maximum: 185 degrees F
- Operating Temperature - Minimum: -67 degrees F
- Over Travel: 0.094 in
- Pre-Travel: 0.078 in
- Release Force: 1.5 ozf
- Standards: CE; CSA; ENEC; UKCA; UL Listed
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
