HONEYWELL DP2020B 5039 DEFINITE PURPOSE CONTACTOR
Quick Overview
Manufactured By: HONEYWELL
Manufacturer Part Number: DP2020B 5039
IMS Product Code: 2163447
Packaging: Sold Individually
Description:

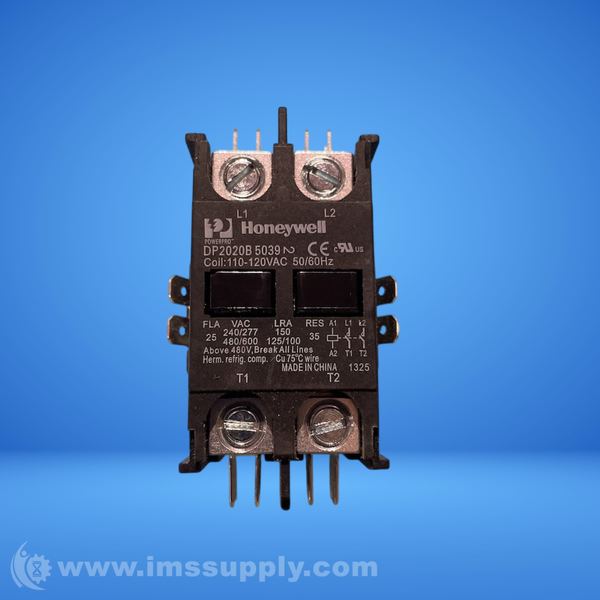

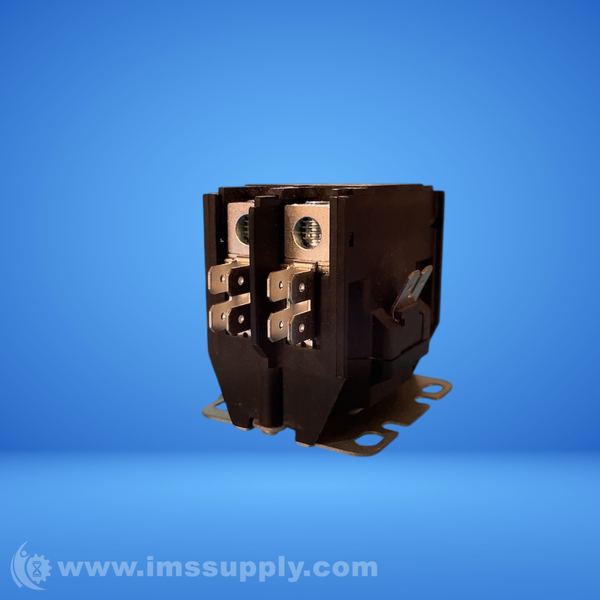

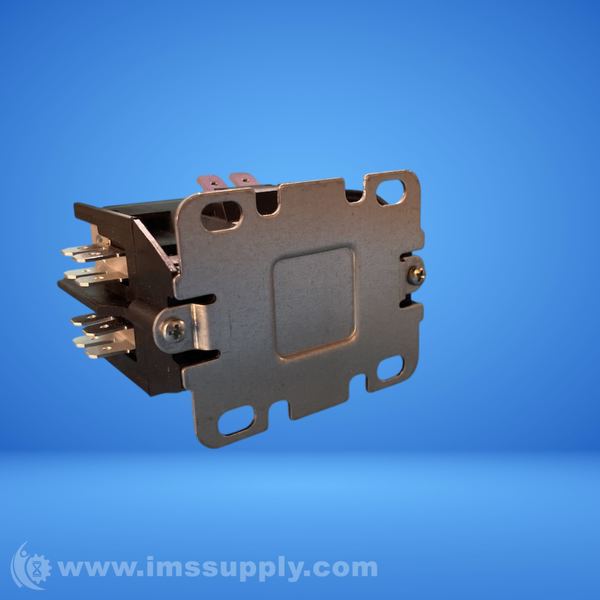

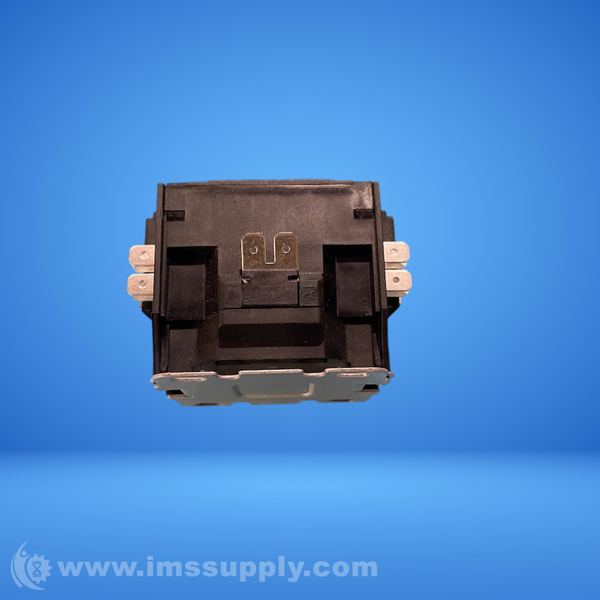

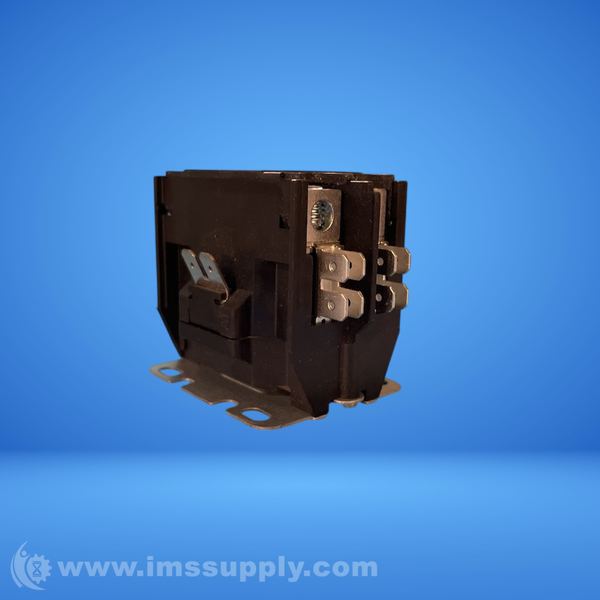

Honeywell DP2020B 5039 Definite Purpose Contactor
2 pole, 20A contactor with 120V coil voltage, used for switching motors and heating loads in HVAC applications.
Specifications
- Manufacturer: Honeywell
- Part Number: DP2020B 5039
- Dimensions: 2.2 in. High x 2.5 in. Wide x 3.31 in. Deep
- Coil Ratings: 120 VAC
- Amps: 20
- Poles: 2
- Type: Contactor
- Voltage: 120
- Item Weight: 0.60 lbs per EA
- Contact Rating: 20 A
- Current Rating: 20 A
- Contact Type: 2 Pole
- Coil Voltage: 120 VAC
- Mount: Surface
- Line Load Terminals: Box lug or dual 0.25" quick connects
- Coil Terminals: Dual 0.25" quick connects
- Auxiliary Contacts: 10A, 1/3 hp @ 120/250 VAC 4A @ 120 VAC for lamp load
- Wire Size: 14-4 AWG
- Operating Temperature: -40 to 149 degrees F (-40 to 65 degrees C)
- Approvals: UL recognized, File #E246810, CE certified
- Weight: 1.5 lbs (0.68 kg)
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
