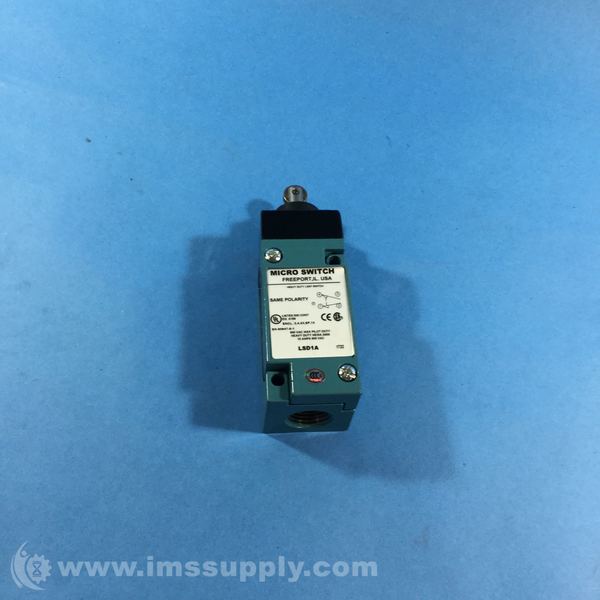

HONEYWELL LSD1A HEAVY DUTY LIMIT SWITCH, ACTUATOR STYLE
Quick Overview
Manufactured By: HONEYWELL
Manufacturer Part Number: LSD1A
IMS Product Code: 1800705
Packaging: Sold Individually
Description:
Honeywell LSD1A Heavy Duty Limit Switch, Actuator Style
Specifications:
- Amps: 10
- Operating Force: 4.00 in.-lb
- Roller Material: Steel
- Actuator Style: Plunger
- Roller Width: 0.19"
- Roller Dia.: 0.50"
- Actuator Location: Top
- IP Rating: 65, 66, 67
- Actuator Length: 2.20"
- Height: 4.20"
- Depth: 1.75"
- Travel: Maximum Pretravel 0.07"
- Minimum Over Travel 0.19"
- Differential Travel 0.015"
- Voltage Rating: 600VAC/250VDC
- AC Contact Rating: 10A @ 600V
- DC Contact Rating: 10A @ 250V
- Item: Heavy Duty Limit Switch
- Movement: Linear
- Standards: UL, CSA, CE, CCC
- NEMA Rating: 1, 3, 4, 4X, 6, 6P, 12, 13
- Operating Temp. Range: 10 Degrees to 200 Degrees F
- Contact Form: 1NC/1NO, SPDT
- Number of Poles: 1
- Wiring Entry: 1/2"-14 NPT
- Width: 1.62"
- Electrical Connection: Screw Terminals
- Series: LSD
- Body Material: Zinc Die Cast
