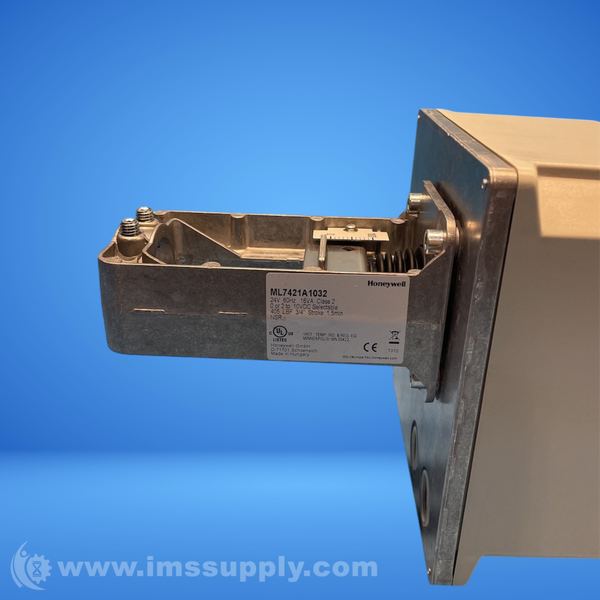

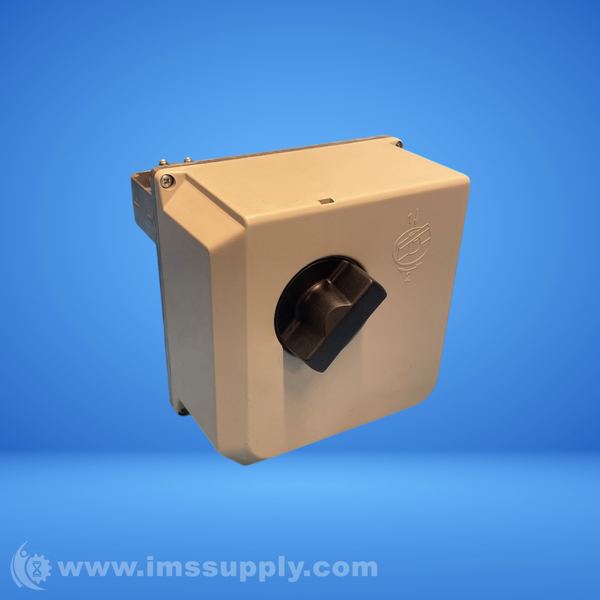

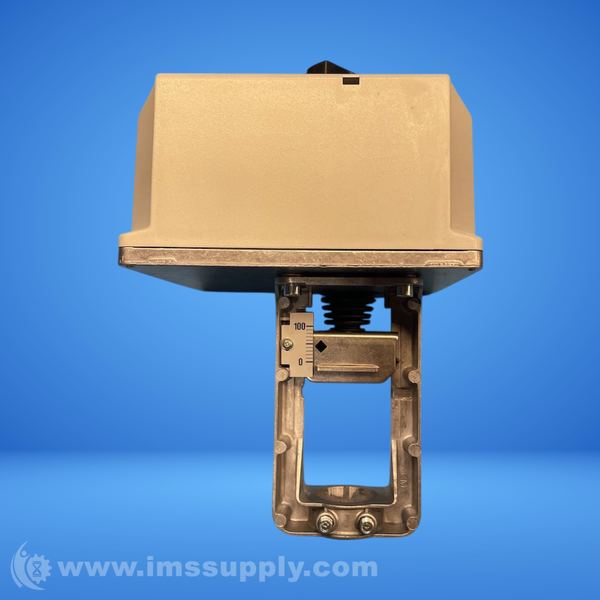

HONEYWELL ML7421A1032 DIRECT COUPLED VALVE ACTUATOR
Quick Overview
Manufactured By: HONEYWELL
Manufacturer Part Number: ML7421A1032
IMS Product Code: 2124070
Packaging: Sold Individually
Description:
Honeywell ML7421A1032 Direct Coupled Valve Actuator
Direct Coupled Valve Actuator Non-Spring Return 3/4 Stroke 24Vac 0-10Vdc or 0/4-20Ma Field Selectable Analog Control Signal. For Use W/Honeywell Globe Valves.
Specifications
- Torque: 405 lbf
- Fail-Safe: Non-Spring Return
- Supply Voltage (Nominal): 24 VAC
- Control Signal: Modulating 0-10 VDC
- Life Expectancy: 50,000 full stroke cycles or 1,000,000 repositions
- Input Impedance: 100 kO for 2-10 VDC input, 500 O for 4-20 mA input
- Operating Temperature: 14 degrees to 122 degrees F (-10 degrees to 50 degrees C)
- Operating Humidity: 5% to 95% RH non-condensing
- Approvals: UL File #E4436, CE
- Run Time: 95 s
- Stroke: 3/4 (20 mm)
- Media Temperature: 300 degrees F
- Manual Operation: Yes
- Net Weight: 4.95 lbs
- Gross Weight: 5.455 lbs
- Insulation: UL94-5V Flame retardant
- Cable Entry: Two knockout holes for 1/2 in. and 3/4 in. conduit
- Electrical Ratings: 24 Vac (+10%/-15%), 60 Hz

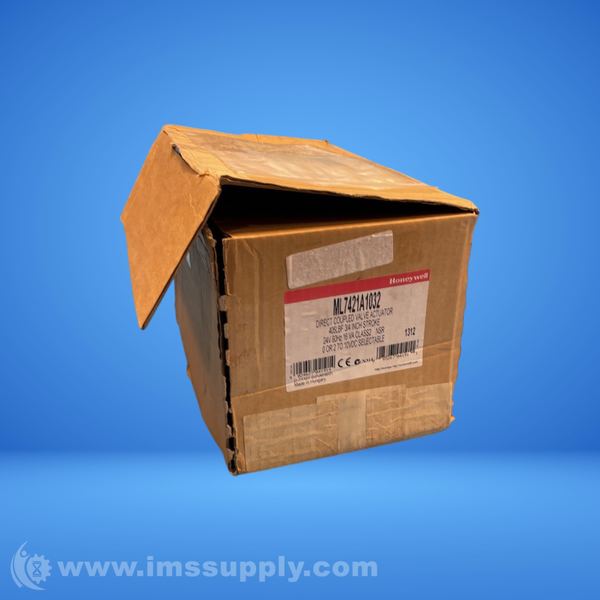

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
