HONEYWELL V7-2B17D8-207 SNAP ACTION SWITCH
Quick Overview
Manufactured By: HONEYWELL
Manufacturer Part Number: V7-2B17D8-207
IMS Product Code: 2129398
Packaging: Sold Individually
Description:

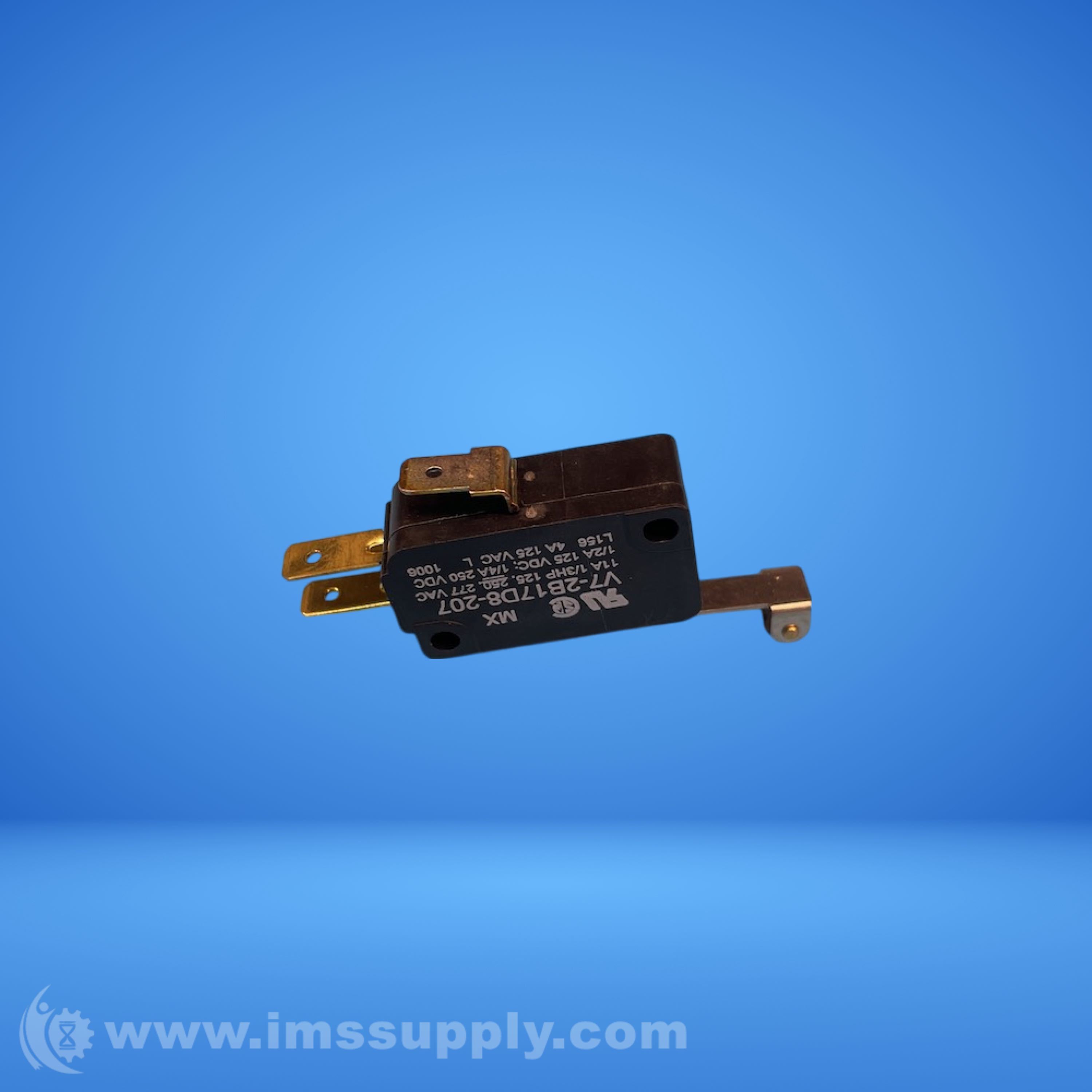

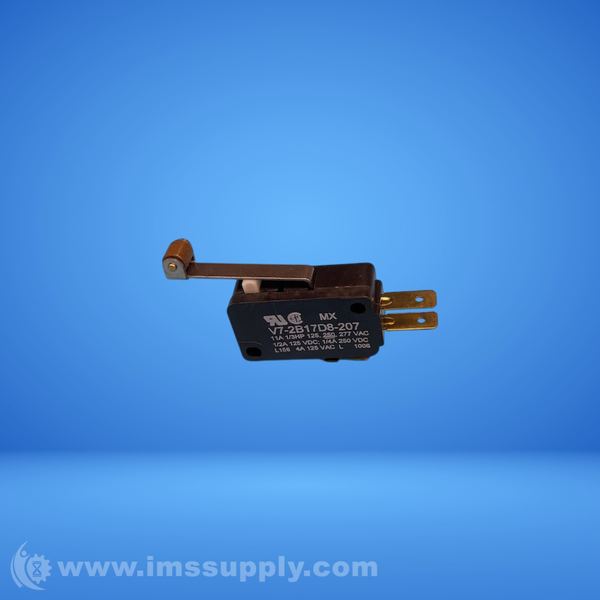

Honeywell V7-2B17D8-207 Snap Action Switch
Snap action switch with roller lever actuator, SPDT configuration, quick connect terminals.
Specifications
- Series: V7
- AC Contact Rating: 11 A @ 277 V
- Actuator Style: Roller Lever
- Body Material: Polyester
- Contact Form: 1NO/1NC
- DC Contact Rating: 0.25 A @ 250 V, 0.5 A @ 125 V
- Differential Travel: 0.025 in
- Electrical Connection: Quick Connect
- Operating Force: 1.6 ozf
- Operating Temperature: -40 °F to 365 °F
- Over Travel: 0.063 in
- Pre-Travel: 0.11 in
- Release Force: 0.1 ozf
- Standards: CSA, ENEC, RoHS, UL Listed
- Configuration: SPDT
- Maximum Current Rating: 11 A
- Maximum AC Voltage Rating: 277 VAC
- Maximum DC Voltage Rating: 250 VDC
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 3 hours and 51 minutes.
