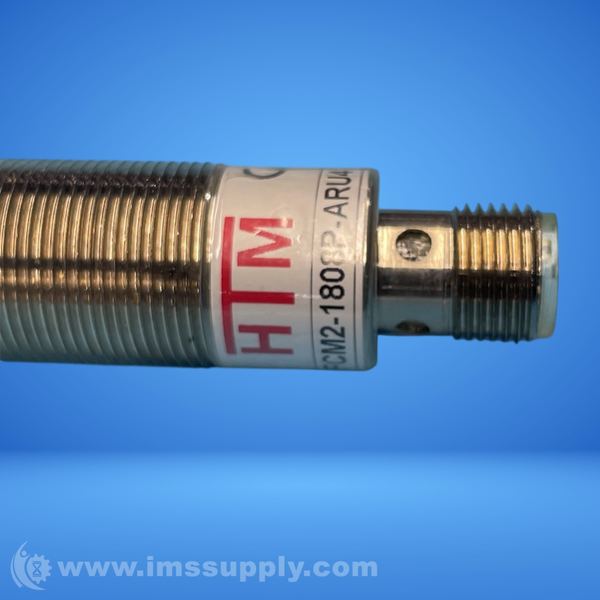

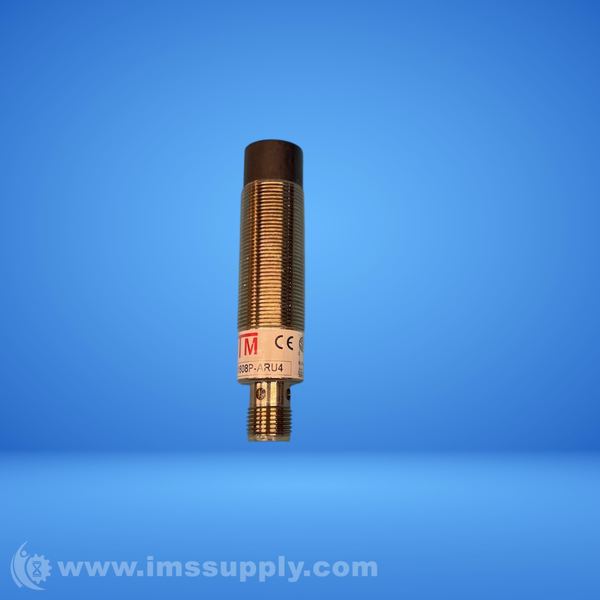

HTM FCM2-1808P-ARU4 INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: HTM SENSORS
Manufacturer Part Number: FCM2-1808P-ARU4
IMS Product Code: 2167298
Packaging: Sold Individually
Description:
HTM FCM2-1808P-ARU4 Inductive Proximity Sensor
Cylindrical inductive proximity sensor with 18mm threaded body, unshielded construction, PNP output, normally open operation, and M12 quick-connect. Features chrome-plated brass housing and PBT plastic sensing face.
Specifications
- Body Length: 79 mm
- Connection: 4 Pin Connector
- Connector: M12x1 Quick Connect
- Current Consumption: 10 mA
- Diameter: 18 mm Threaded
- EMC Rating: RFI>3V/m / EFT>1kV / ESD>4Kv (contact)
- Housing Material: Chrome Plated Brass
- IP Rating: IP67
- Leakage Current: Less Than 0.01 mA
- Max Current: 200 mA
- Mounting Style: Unshielded
- Operating Temperature: -25 C to 70 C
- Operating Voltage: 10 to 30 VDC
- Output Function: Normally Open
- Output Type: PNP
- Overload Trip Point: 220 mA
- Response Time: 0.5 ms
- Reverse Polarity Protected: Yes
- Sensing Face Material: PBT Plastic
- Sensing Range: 8 mm
- Sensing Type: Inductive Proximity Sensor
- Sensor Shape: Cylindrical
- Shock Rating: IEC 60497-5-2, Part 7.4.1&7.4.2
- Short Circuit Protected: Yes
- SpatterGuard: No
- Switching Frequency: 500 Hz
- Weld Field Immune: No
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
