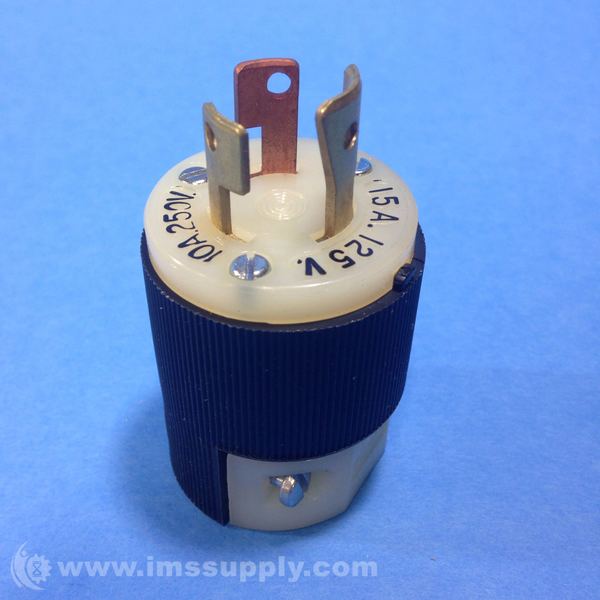

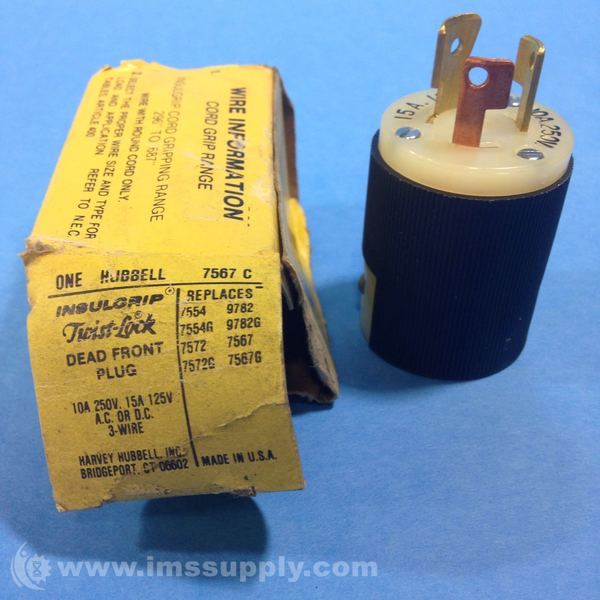

HUBBELL 7567 C PLUG
Quick Overview
Manufactured By: HUBBELL
Manufacturer Part Number: 7567 C
IMS Product Code: 1735131
Packaging: Sold Individually
Description:
Product Item: Plug
Wiring Scheme: 3-Pole, 3-Wire Non-Grounding
Multi-Rating: 10A 250V AC, 15A 125V
Item Style: Insulgrip
Device Color: Black/White
Cord Dia.: .230"-.720" (5.8-18.3)
Blade Holder Material: Natural White Nylon
Terminal Retainer Material: Clear polycarbonate
Housing Material: Black nylon
Cord Clamp Material: Natural (white) nylon
Blade Material: Brass
Terminal Clamp Material: Cold rolled steel-nickel-plated
Terminal Screw Material: #8-32 Brass, Copper plated for terminal identification
Cord Clamp Screw Material: Steel-zinc-plated
Body Holding Screw Material: Steel-zinc-plated
Ratings: Molded In or Stamped On
Dielectric Voltage Withstand: 2,000V minimum
Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of .75.
Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
Terminal Accommodation: 15A #14 AWG
Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
Flammability: HB or better per UL 94 or CSA 22.2 No. 0.6
Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
Moisture Resistance: IP20
