HUBBELL HBL2431SW LOCKING WATERTIGHT SAFETY-SHROUD PLUG
Quick Overview
Manufactured By: HUBBELL
Manufacturer Part Number: HBL2431SW
IMS Product Code: 1815547
Packaging: Sold Individually
Description:

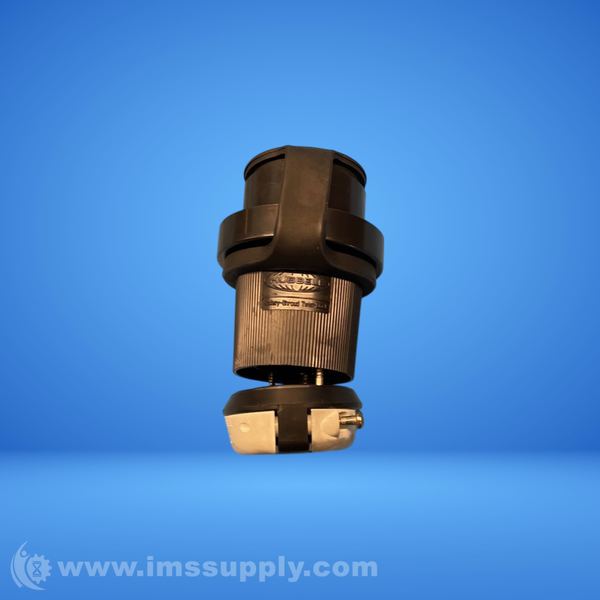

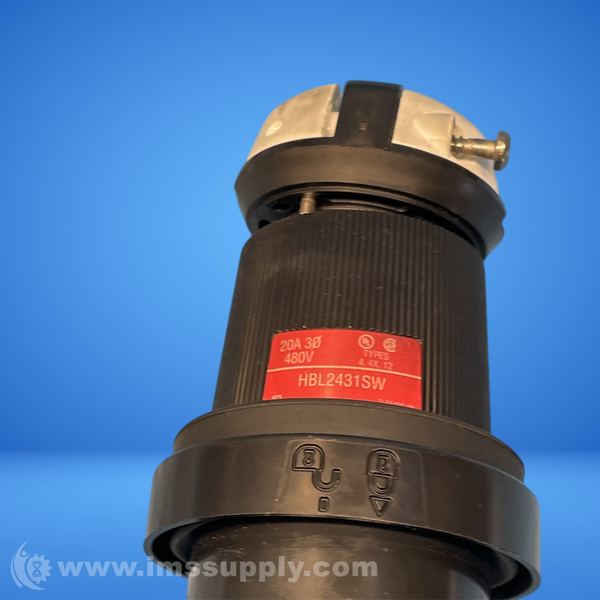

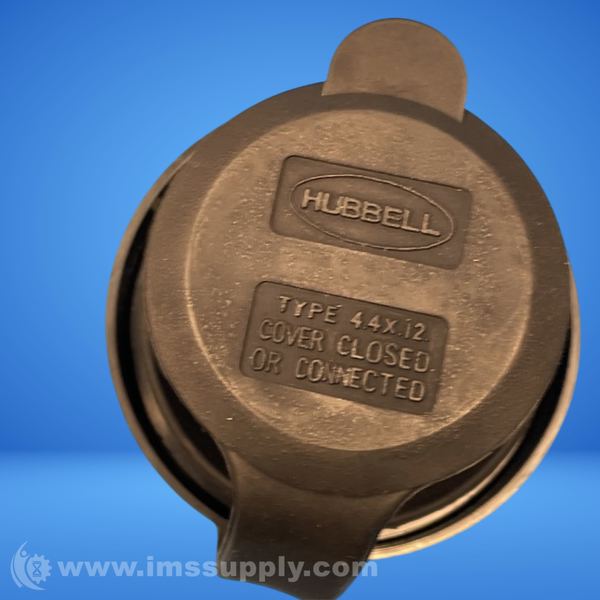

Hubbell HBL2431SW Locking Watertight Safety-Shroud Plug
3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, NEMA L16-20P, Screw Terminal, Black PBT housing, White PBT clamps
Specifications
- Amperage Rating: 20 A
- Body Material: Valox
- Body Type: Straight
- Cable Range: 0.350 - 1.150 in
- Color: Black, White
- Configuration: L16-20P
- Connection Type: Plug
- Dielectric Strength: Withstands 2,000V minimum
- Dimensions: 2.94 in x 2.94 in x 4.40 in
- Grounding: Grounding
- Material: Composite, Impact Modified PBT
- NEMA Configuration: L16-20P
- Number Of Poles: 3
- Number Of Wires: 4
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
- Phase: Three Phase
- Type: Plugs, Polarized
- Voltage Rating: 480 V
- Watertight: Yes
- Wire Size: #16 AWG to #8 AWG
Used (Special):
Missing internal parts
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 37 minutes.
