HUBBELL HBL4570C LOCKING PLUG
Quick Overview
Manufactured By: HUBBELL
Manufacturer Part Number: HBL4570C
IMS Product Code: 823821
Packaging: Sold Individually
Description:

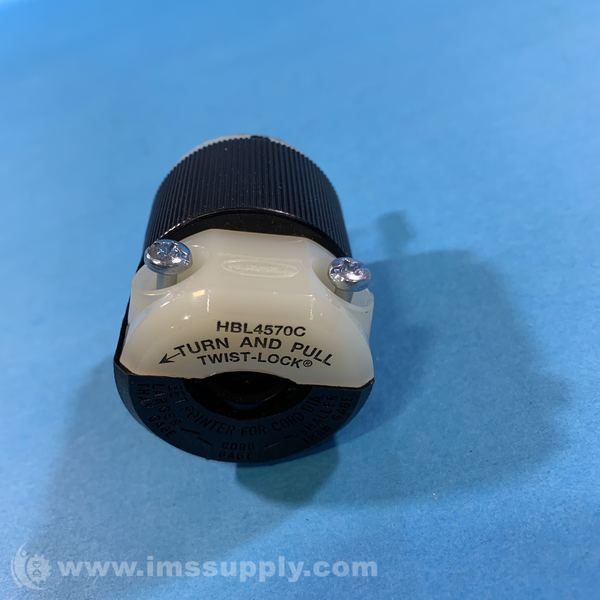

Hubbell HBL4570C Locking Plug
Hubbell Wiring Device-Kellems HBL4570C, Locking Plug, 1-Phase Grounding Cord Mount, L6-15P NEMA Rating, 250 V AC, 15 A, 2 Pole, 3 Wires, Screw Terminal, Nylon, Black/White, 1.53 x 1.53 x 1.97 in Dimensions
Specifications
- Amperage Rating: 15 A
- Blade Material: Brass
- Cable Range: 0.230 - 0.720 in
- Color: Black, White
- Connectivity: Pressure Terminal Screws
- Cord Range: 0.230"-0.720" (5.8-18.3)
- Dielectric Strength: Withstands 2,000V minimum
- Dimensions: 1.53 in x 1.53 in x 1.97 in
- Environmental Conditions: Indoor Dry Unless Protected By Additional Means
- EU RoHS Indicator: Yes
- Grounding: Grounded
- Horsepower - Maximum: 1.5
- Horsepower Rating: 1-1/2 hp
- Housing Color: Black; White
- Housing Material: Nylon
- IP Rating: IP20
- Material: Nylon
- Maximum Operating Temperature: 75 degrees C
- Maximum Wire Size: #8 AWG
- Minimum Operating Temperature: -40 degrees C
- Minimum Wire Size: #16 AWG
- NEMA Rating: L6-15P
- Number Of Poles: 2
- Number Of Wires: 3
- Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
- Phase: Single Phase
- Polarized: Yes
- Resistance Properties: Chemical Resistant; Impact Resistant
- Series: HBL
- Shrouded: No
- Standards: CSA Certified C22.2 No. 42; Federal Specification W-C-596; UL 498
- Type: Plugs
- UL 94 Flammability Rating: HB
- Voltage Rating: 250 V
- Wire Connection Type: Screw Terminals
- Wire Size: #16 AWG to #8 AWG
- Wiring Style: Standard
