HUBBELL HBL4579C TWIST-LOCK CONNECTOR
Quick Overview
Manufactured By: HUBBELL
Manufacturer Part Number: HBL4579C
IMS Product Code: 823823
Packaging: Sold Individually
Description:

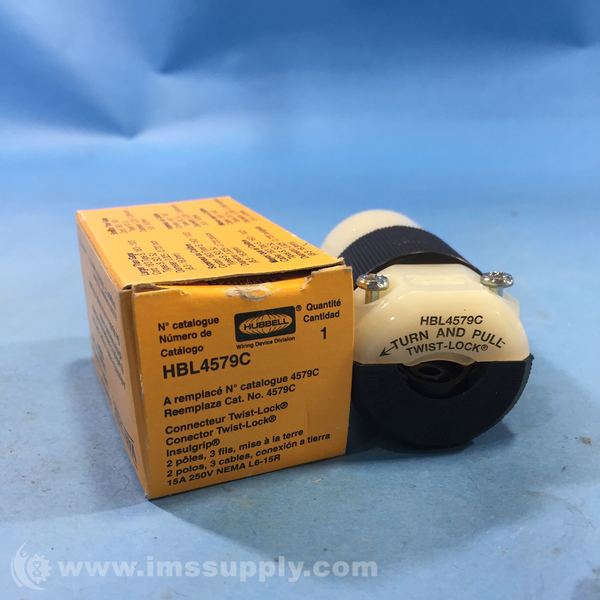

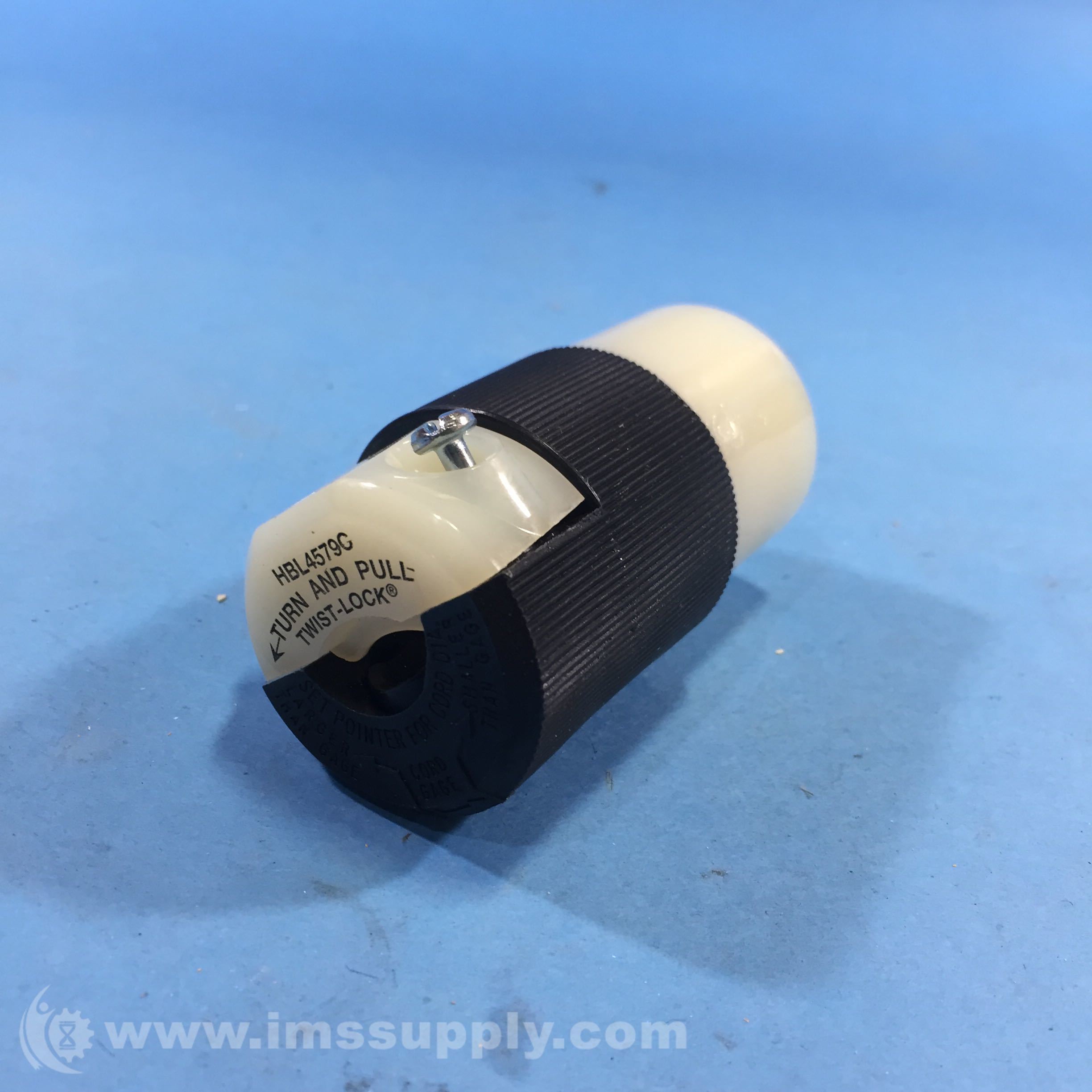

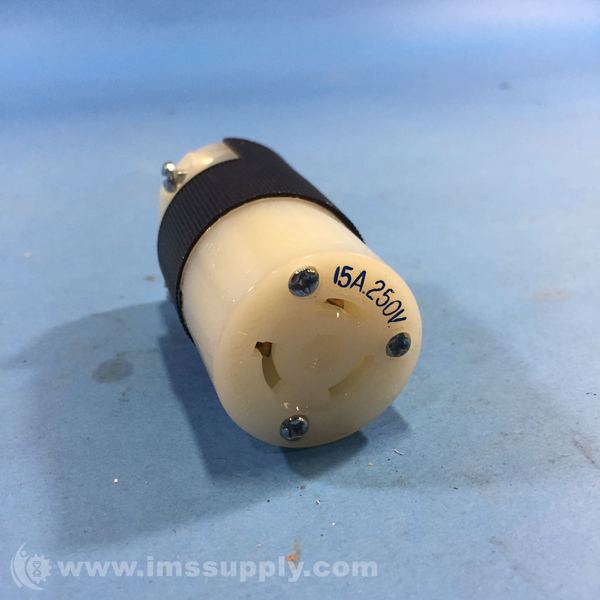

Hubbell HBL4579C Twist-Lock Connector
Female Insulgrip connector body, 15A, 250V, 2-pole 3-wire grounding, NEMA L6-15R configuration, screw terminals, made of black and white nylon.
Specifications
- Amperage Rating: 15 A
- Cable Range: 0.230 - 0.720 in
- Color: Black, White
- Configuration: L6-15R
- Connectivity: Screw Terminals
- Dielectric Strength: Withstands 2,000V minimum
- Dimensions: 1.53 in x 1.53 in x 2.78 in
- Grounding: Yes
- Material: Nylon
- NEMA Configuration: L6-15R
- Number Of Poles: 2
- Number Of Wires: 3
- Operating Temperature: Maximum continuous 75C and minimum -40C
- Type: Connector Body
- Voltage Rating: 250 V
- Wire Size: #18 AWG to #10 AWG
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
