HUBBELL HBL5366C 20A 125V STRAIGHT BLADE PLUG
Quick Overview
Manufactured By: HUBBELL
Manufacturer Part Number: HBL5366C
IMS Product Code: 823888
Packaging: Sold Individually
Description:

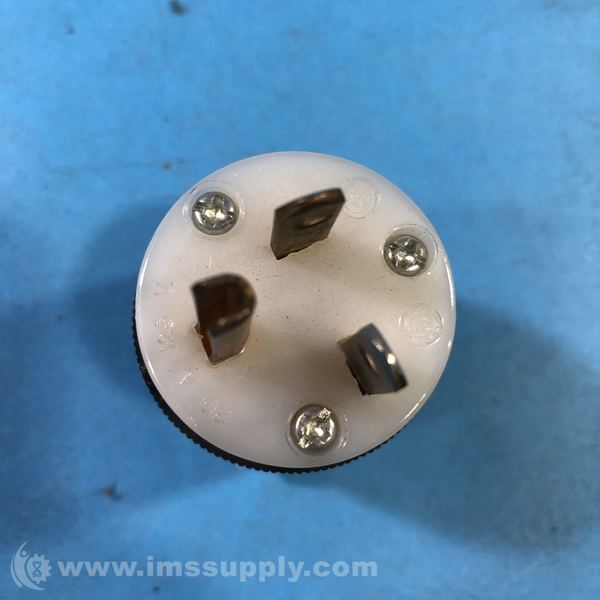

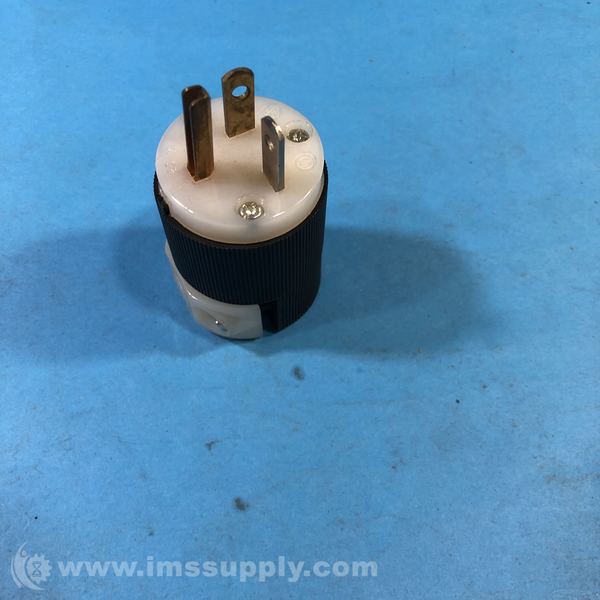

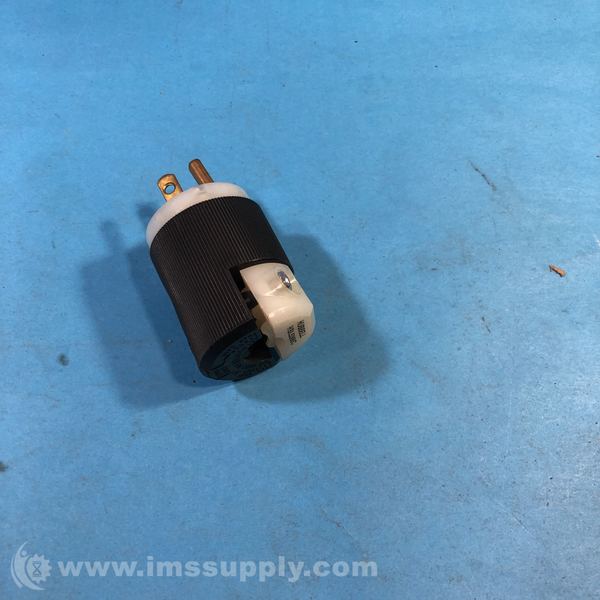

Hubbell HBL5366C 20A 125V Straight Blade Plug
A straight blade plug with 2 poles, 3 wires, and grounding. Rated for 20A at 125V, NEMA 5-20P configuration. Made of polycarbonate and nylon materials, with a black and white color scheme. Features screw terminals and is suitable for industrial and commercial applications.
Specifications
- Amperage Rating: 20 A
- Voltage Rating: 125 VAC
- Number of Poles: 2
- Number of Wires: 3
- NEMA Rating: 5-20P
- Material: Polycarbonate, Nylon
- Color: Black, White
- Dimensions: 1.52 in x 1.52 in x 1.96 in
- Dielectric Strength: Withstands 2,000V minimum
- Operating Temperature: -40°C to 75°C
- Wire Size: #18 AWG to #10 AWG
- Grounding: Grounding
- Approval: UL 498, CSA C22.2
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 9 hours and 50 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 9 hours and 50 minutes.
