HUBBELL HBL5965VY STRAIGHT BLADE PLUG
Quick Overview
Manufactured By: HUBBELL
Manufacturer Part Number: HBL5965VY
IMS Product Code: 2136814
Packaging: Sold Individually
Description:

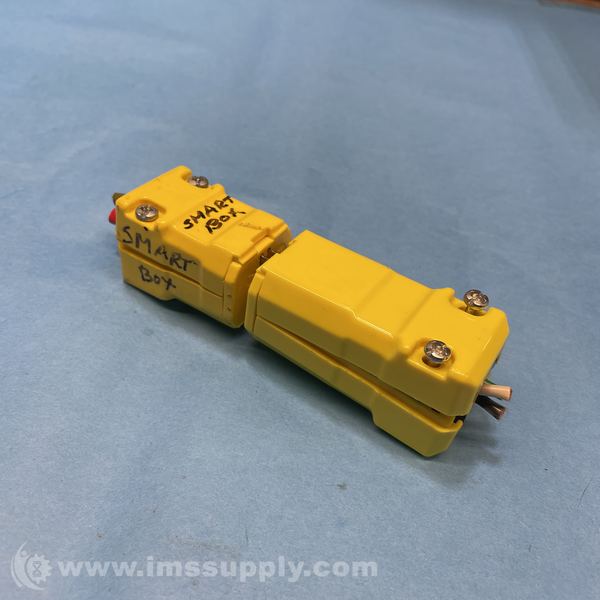

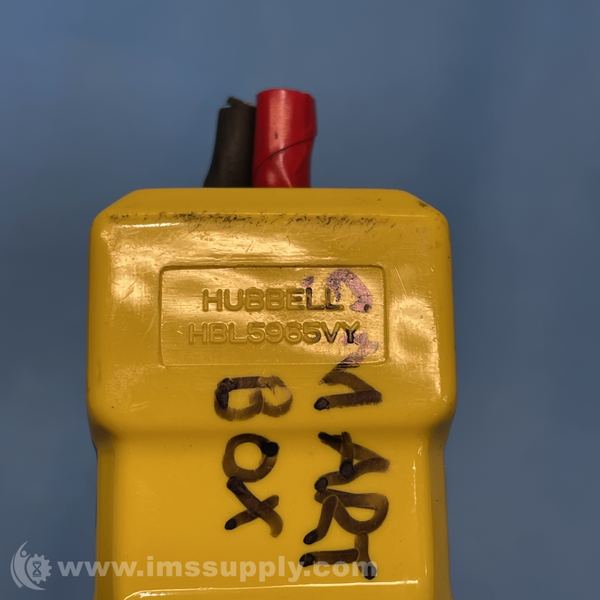

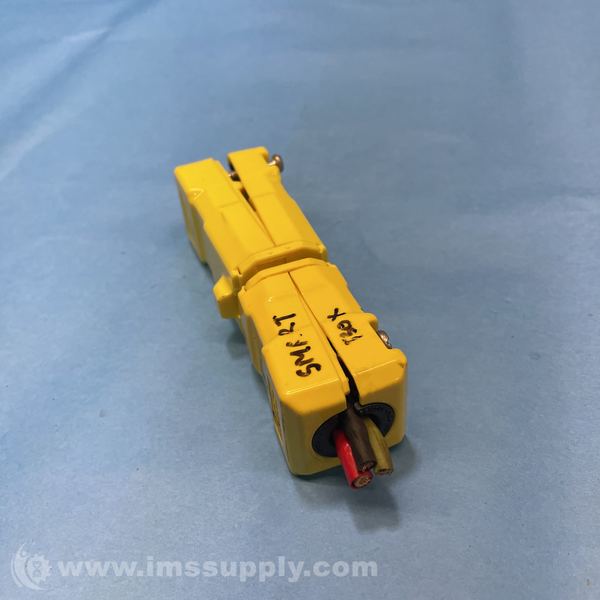

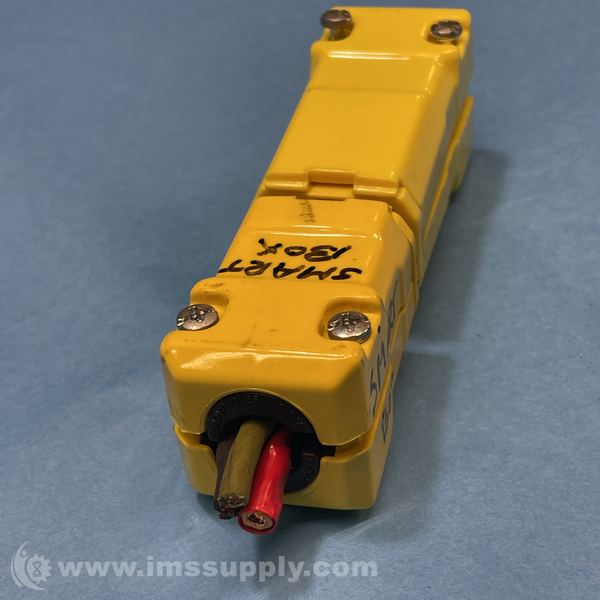

Hubbell HBL5965VY Straight Blade Plug
Hubbell HBL5965VY Valise straight blade male plug, 15 Amp, 125V AC, 2-Pole, 3-Wire, NEMA 5-15P configuration, yellow polycarbonate housing with nylon insulation, screw terminals, and hinged design for quick wiring and assembly.
Specifications
- Current Rating: 15 A
- Voltage Rating: 125V AC
- NEMA Plug Configuration: 5-15P
- Number of Poles: 2
- Number of Blades: 3
- Housing Color: Yellow
- Housing Material: Polycarbonate
- Insulation Material: Nylon
- Wire Connection Type: Screw Terminals
- Wiring Style: Hinged
- Connection Orientation: Straight
- Body Length: 1.88 in
- For Maximum Cable Diameter: 0.66 in
- For Minimum Cable Diameter: 0.22 in
- Maximum Operating Temperature: 167 degrees F
- Minimum Operating Temperature: -40 degrees F
- Maximum Wire Size: 12 AWG
- Minimum Wire Size: 18 AWG
- Polarized: Yes
- UL 94 Flammability Rating: HB
- Dielectric Strength: Withstands 2,000V Minimum
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 33 minutes.
