HUBBELL HBL7411C 20A 3-PHASE LOCKING PLUG
Quick Overview
Manufactured By: HUBBELL
Manufacturer Part Number: HBL7411C
IMS Product Code: 823947
Packaging: Sold Individually
Description:

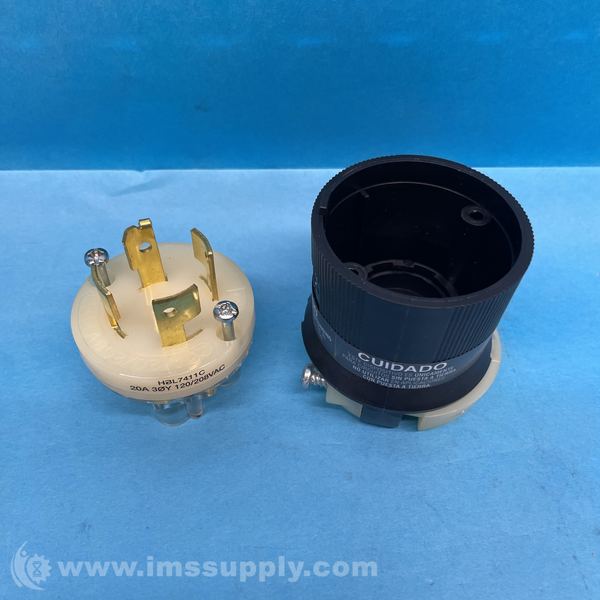

Hubbell HBL7411C 20A 3-Phase Locking Plug
Hubbell HBL7411C non-NEMA nylon 3-phase 4-pole, 4-wire 20A Insulgrip plug.
Specifications
- Amperage Rating: 20 A
- AWG Range: 16 - 8 AWG
- Blade Material: Brass
- Body Material: Nylon
- Cable Range: 0.35 to 1.15 in
- Color: Black/White
- Connection Orientation: Straight
- Dielectric Strength: Withstands 2,000V Minimum
- Face Diameter: 2.21 in
- Grounding: Non-Grounding
- Housing Material: Nylon
- IP Rating: IP20
- Maximum Operating Temperature: 75 degrees C
- Minimum Operating Temperature: -40 degrees C
- NEMA Configuration: Non-NEMA
- Number of Poles: 4
- Number of Wires: 4
- Overall Length: 2.33 in
- Phase: Three-Phase
- Polarized: Yes
- Resistance Properties: Chemical Resistant; Impact Resistant
- Standards: CSA Certified C22.2 No. 42; Federal Specification W-C-596; UL 498
- Type: Extra Heavy Duty
- UL 94 Flammability Rating: HB
- Voltage Rating: 120/208V AC
- Wire Connection Type: Screw Terminals
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
