HUMPHREY B3E1 SOLENOID VALVE
Quick Overview
Manufactured By: HUMPHREY
Manufacturer Part Number: B3E1
IMS Product Code: 2124638
Packaging: Sold Individually
Description:

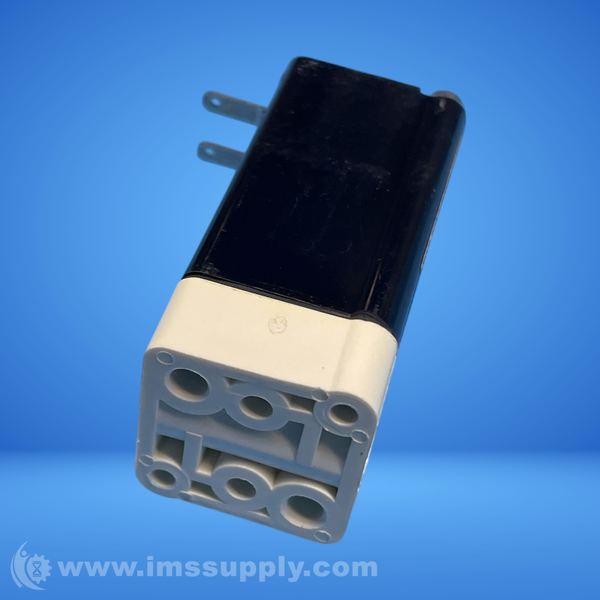

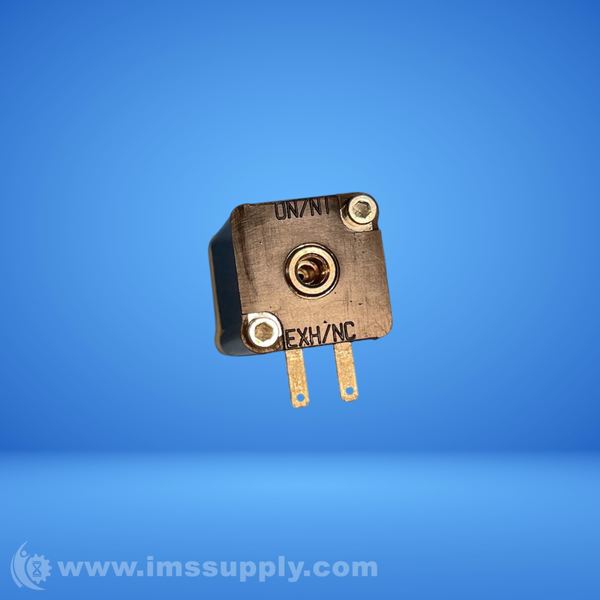

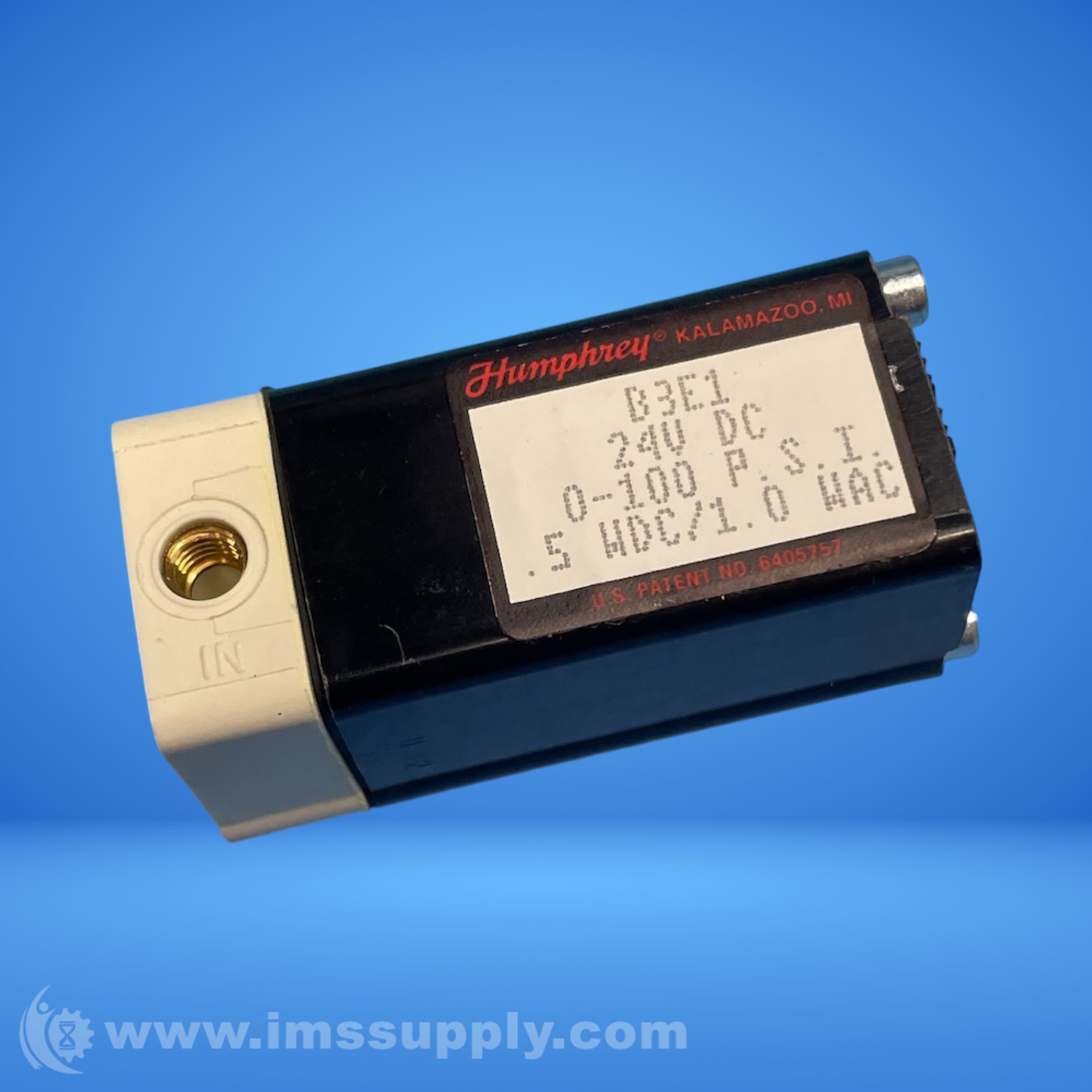

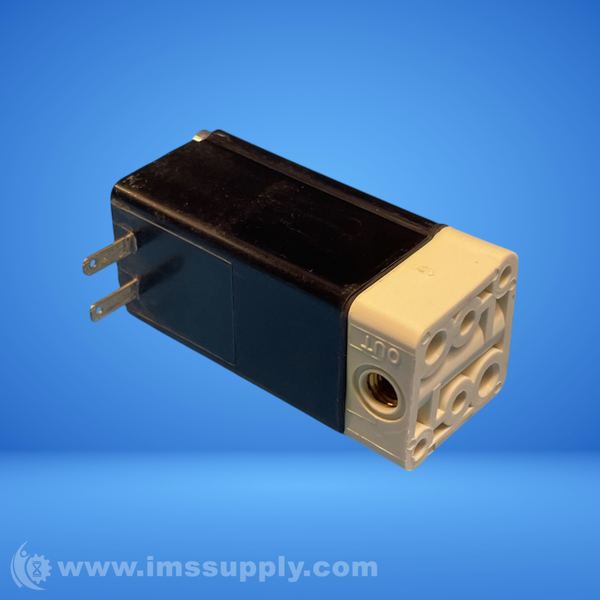

Humphrey B3E1 Solenoid Valve
3-port Mini-Mizer solenoid valve with 24VDC operation, 0-100 PSI pressure range, and 0.5W power consumption
Specifications
- Number of Ports: 3 ports
- Number of Positions: 2 positions
- Valve Function: Single Solenoid, Normally Closed
- Piping Type: Inline, Direct Piping
- Approx Size (in) HxWxD: 2 x 0.88 x 0.88
- Media: Air, Inert Gas
- Type of Operation: Direct Acting Type
- Flow Capacity (Cv): 0.01
- Port Size: 10-32 UNF
- Lubrication: Not Required
- Pressure Range (psi): 0-100
- Response Time per Step (ms): 5/6
- Operating Speed (cycles/min): 600
- Ambient Temperature Range: 0~150 degrees F
- Wetted Materials: SST, Nickel plated steel, Brass, Buna N
- Weight: 2.0 oz
- Electrical Entry: Spade Terminals
- Voltage: 24VDC
- Voltage Range: +10%, -15%
- Power Consumption (w): 0.5
- Compliance: RoHS
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
