IDC SELECT AK184H H BUSHING SHEAVE
Quick Overview
Manufactured By: IDC SELECT
Manufacturer Part Number: AK184H
IMS Product Code: 1800402
Packaging: Sold Individually
Description:

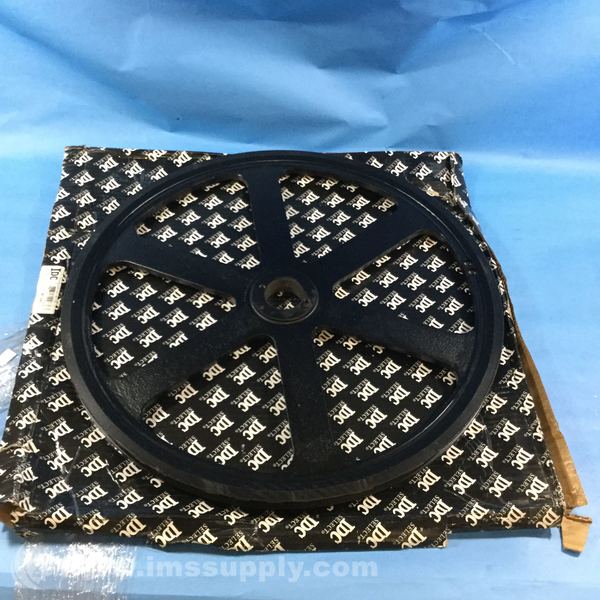

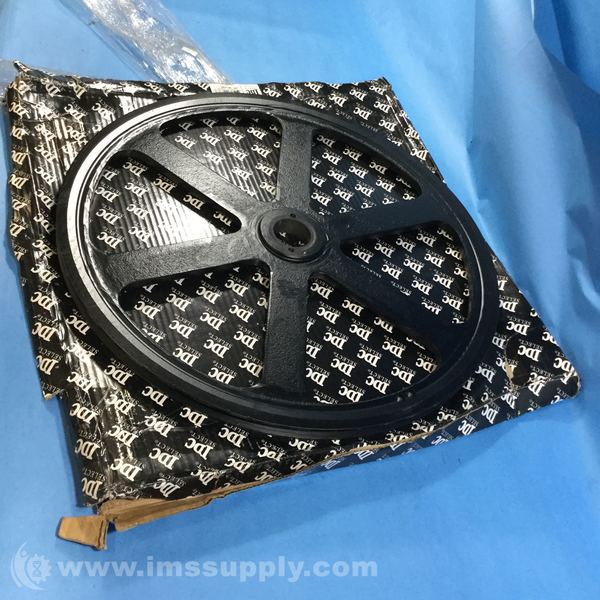

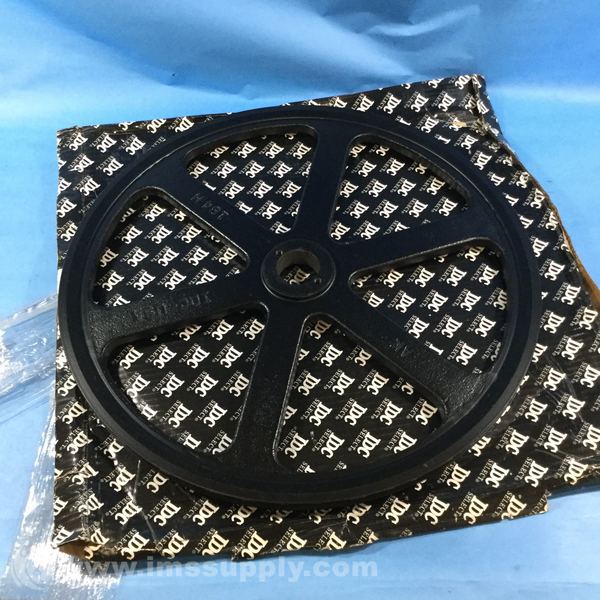

IDC Select AK184H H Bushing Sheave
Cast iron single groove sheave with H bushing for 3L and 4L/A cross section V-belts.
Specifications
- Outside Diameter: 18.25 in
- Pitch Diameter: 17.66 in (3L), 18 in (4L, A)
- Face Width: 3/4 in
- Bushing Type: H
- Material: Cast Iron
- Finish: Baked Enamel
- Balance: Statically Balanced
- Rim Speed: 6500 FPM
- Number of Grooves: 1
- For Belt Trade Size: 3L, 4L, A, AX
- Length through Bore: 1 1/4 in
- Overall Width: 1 5/16 in
- Maximum Bore Diameter: 1 1/2 in
- Minimum Bore Diameter: 3/8 in
- Pulley Construction: Spoked
- Weight: 11.3 lb
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 45 minutes.
