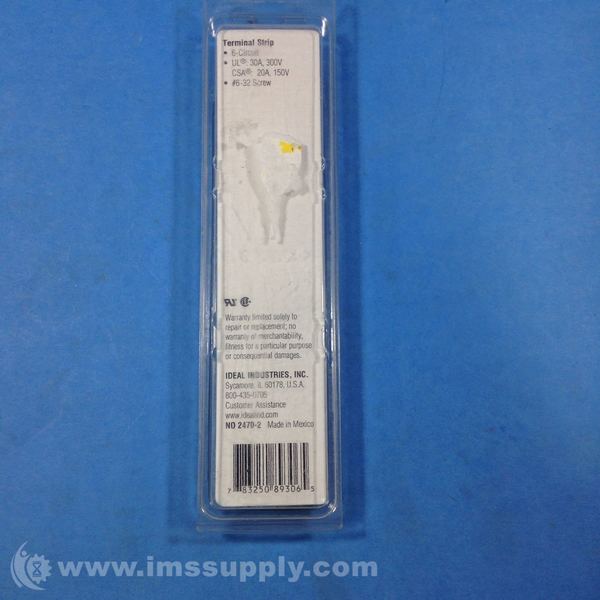

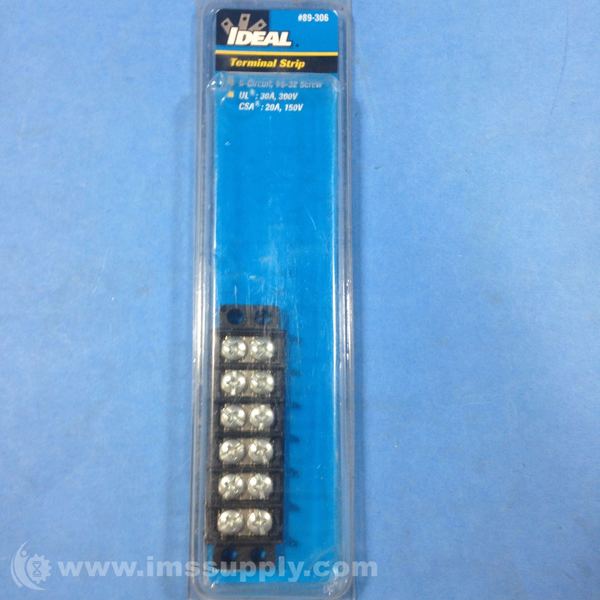

IDEAL IND #89-306 TERMINAL STRIP
Quick Overview
Manufactured By: IDEAL IND
Manufacturer Part Number: 89-306
IMS Product Code: 1743719
Packaging: Sold Individually
Description:
Ideal Ind #89-306 Terminal Strip
6-Circuit terminal strip with surface mounting, #6-32 philslot screw connection, and 22-14 AWG wire size.
Specifications
- Center Spacing: 3/8 in (0.375 in, 9.52 mm)
- Connection Type: #6-32 Philslot Screw
- Dimensions: 2.9 in L x 0.88 in W x 0.41 in H
- Material: Polyester Thermoplastic/Steel
- Mounting Type: Surface Mounting
- Number of Terminals: 6
- Screw Size: #6
- Temperature Rating: -40 to 260 deg F
- Torque Rating: 9 in-lb
- Type: Double Row Terminal Strip
- Voltage Rating: 150 VAC (CSA), 300 VAC (UL)
- Amperage Rating: 20 A (CSA), 30 A (UL)
- Wire Size: 22 to 14 AWG
- Certifications: UL Recognized (E82048), CSA Certified (LR15364)
