IDEC ASW320 SELECTOR SWITCH
Quick Overview
Manufactured By: IDEC
Manufacturer Part Number: ASW320
IMS Product Code: 825204
Packaging: Sold Individually
Description:

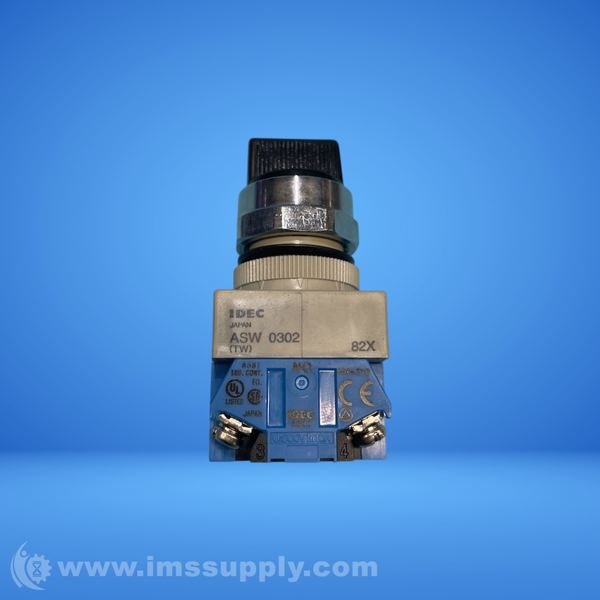

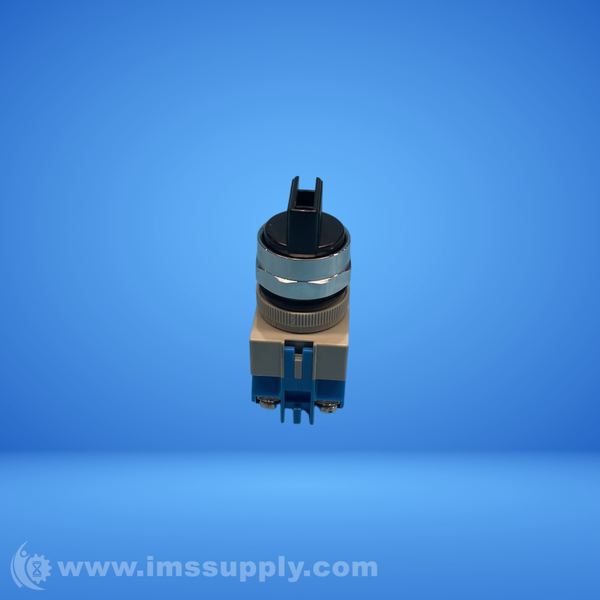

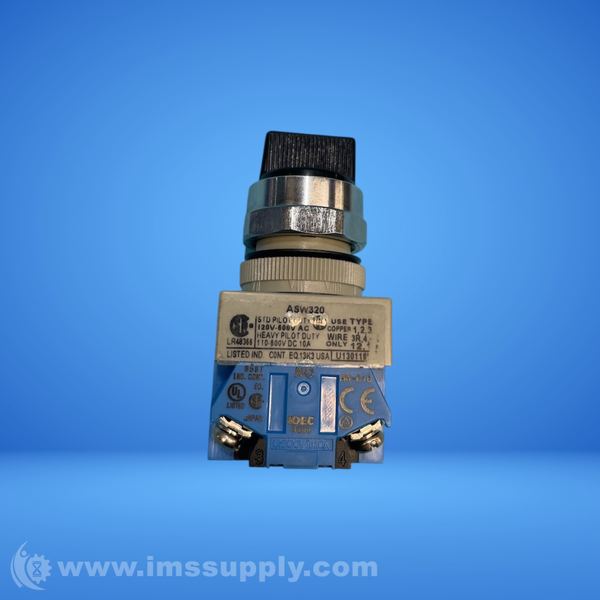

Idec ASW320 Selector Switch
3-position selector switch, 2NO contacts, non-illuminated, 22mm mounting, knob operator, maintained action
Specifications
- Color: Black
- Contact Blocks: 2NO
- Diameter: 22 mm
- Function: Maintained
- Illumination: Non-Illuminated
- Contact Rating: 10A, 600 VAC/VDC max.; 5 mA, 3 VAC/VDC minimum
- Contact Resistance: 50 mO maximum (initial value)
- Contact Material: Silver
- Electrical Life: 500,000 minimum operations
- Protection Rating: NEMA 1, 2, 3, 3R, 4, 4X, 12, 13, IP65
- Applicable Wire Size: Minimum 1 x 22 AWG, Maximum 2 x 14 AWG or 1 x 12 AWG
- Mechanical Life: 500,000 minimum operations
- Mounting: 0.878" (2.23 cm) hole
- Panel Thickness: Panel thickness adjustment ring, 0.04" to 0.24" (0.10 to 0.61 cm)
- Approvals: UL File #E68961; CSA File #LR48366, CE, RoHS
- Product Series: TW
- Number of Positions: 3
- Operator Type: Knob
- Contacts: 2NO
- Max Voltage: 600 VAC, 600 VDC
- Current Rating: 10 A
- Operator Color: Black
- Bezel: Metal Round
- Terminal Type: Screw
- NEMA Rating: NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 5, NEMA 3S
- Protection Rating: IP65
- Net Weight: 0.12 lbs
- Country of Origin: Japan

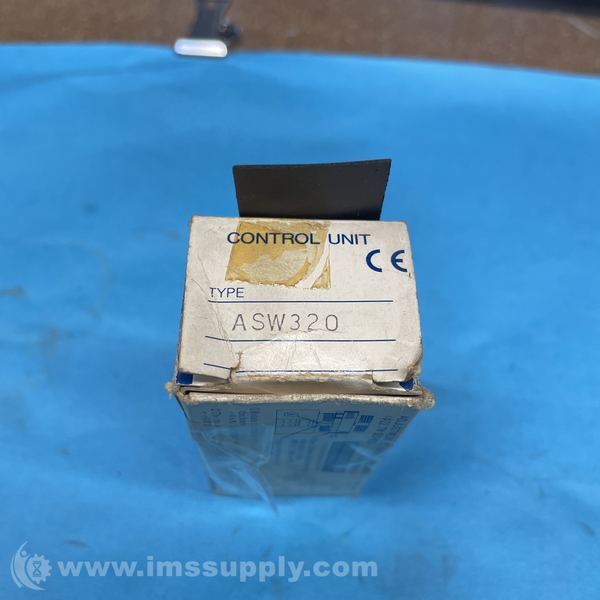

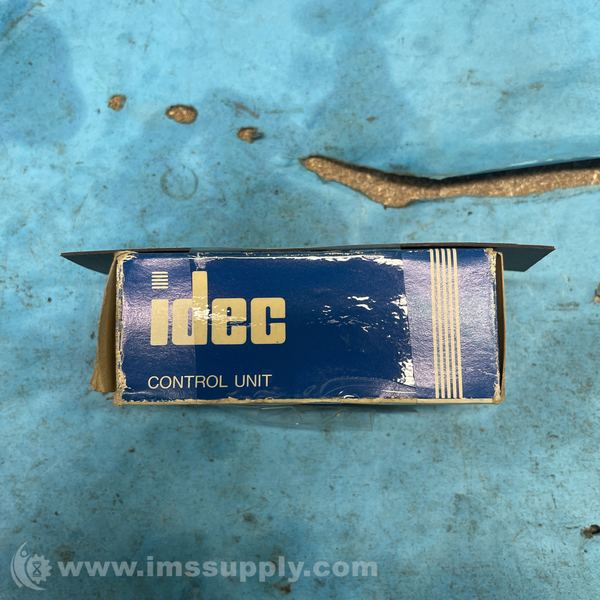

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, November 3, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships on Monday, November 3, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
