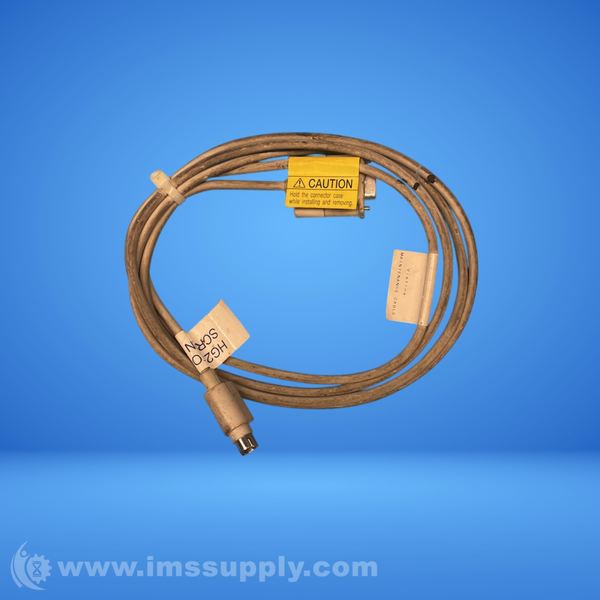

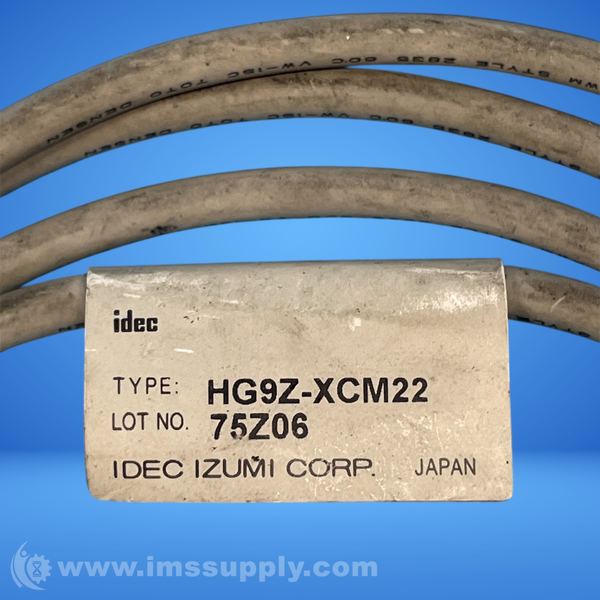

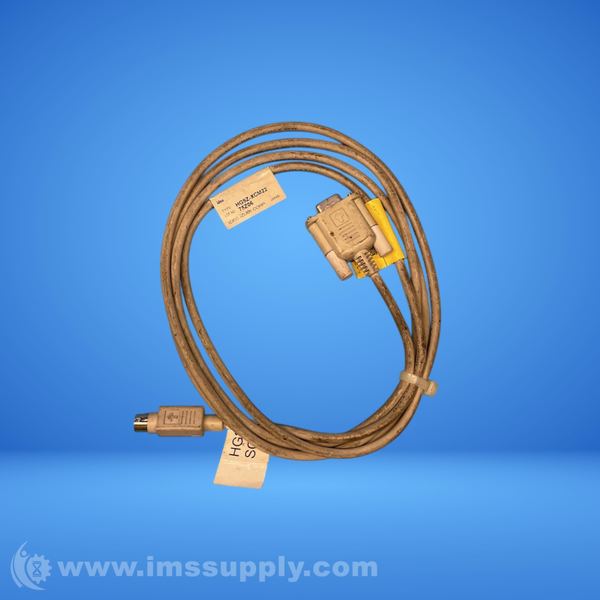

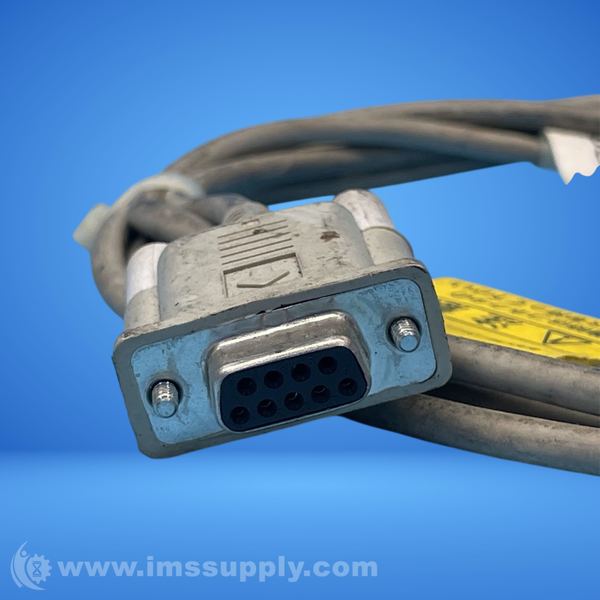

IDEC HG9Z-XCM22 SIGNAL LIGHT & SWITCH
Quick Overview
Manufactured By: IDEC
Manufacturer Part Number: HG9Z-XCM22
IMS Product Code: 2165181
Packaging: Sold Individually
Description:
Idec HG9Z-XCM22 Signal Light & Switch
A panel-mount signal light and switch assembly with LED illumination, momentary switch function, and M3 screw terminals.
Specifications
- Type: LED Signal Light, Pushbutton Switch
- Voltage: 24V AC/DC
- Operating Voltage: 21.6 to 26.4V AC/DC
- Current Consumption: 15mA (24V DC), 23mA (24V AC)
- Power Consumption: 0.36W (24V DC), 0.55W (24V AC)
- Operating Temperature: -20 to +50�C, -20�C to 60�C
- Storage Temperature: -30 to +70�C
- Relative Humidity: 45 to 85% RH
- Lens Material: Polycarbonate
- Lens Color: Red, Green, Yellow, Blue, White
- Degree of Protection: IP65 (front panel)
- Mounting Type: Panel Mount
- Termination: M3 Screw Terminals
- Weight: approx. 45g
- Standards: UL, CSA, CE, RoHS Compliant
- Switch Function: Momentary
- Electrical Life: 1,000,000 cycles
- Mechanical Life: 5,000,000 cycles
- Contact Resistance: 50 mO max
- Insulation Resistance: 100 MO min
- Dielectric Strength: 1,000 VAC for 1 minute
- Operating Force: 1.5 N � 0.5 N
- Release Force: 0.5 N min
- Total Travel: 3.5 mm � 0.5 mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
