IDEC HS1C SAFETY DOOR LOCK SWITCH
Quick Overview
Manufactured By: IDEC
Manufacturer Part Number: HS1C
IMS Product Code: 1922022
Packaging: Sold Individually
Description:

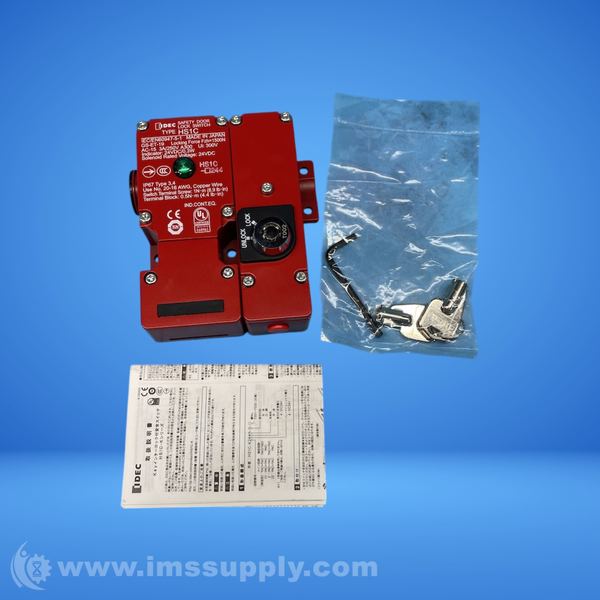

Idec HS1C Safety Door Lock Switch
The HS1C is a full-size interlock switch in a rugged die-cast aluminum housing that includes a locking solenoid. When mounted with the key on a movable door and the switch on a machine body, the door can be mechanically locked when closed. The door is unlocked by a solenoid lock-release signal from a PLC or other source after the machine has stopped. In case of power failure or for machine maintenance, the door can be unlocked using a special tool.
Specifications
- Dimensions: 106x40x125 mm
- Housing Material: Die-cast aluminum
- Locking Mechanism: Solenoid locking (power to unlock)
- Manual Unlocking: Possible with a special tool
- Indicator Options: Red or green LED indicator
- Circuit Configurations: 4 configurations available
- Installation Flexibility: Key can be accessed from two directions
- Compliance: Keys compliant with ISO14119 and EN1088
- Protection Degree: IP67 (watertight)
- B10d Value: 2.0E+06
- IEC/EN60947-5-1
- Locking Force: 1500N
- AC-15 3A/250V A300 Ui:300V
- Indicator: 24VDC/0.3W
- Solenoid Rated Voltage: 24VDC
- Type: 3, 4
- Wire Size: 20-16 AWG, Copper Wire
- Switch Terminal Screw Torque: 1N-m(8.9lb-in)
- Terminal Block Torque: 0.5N-m(4.4lb-in)

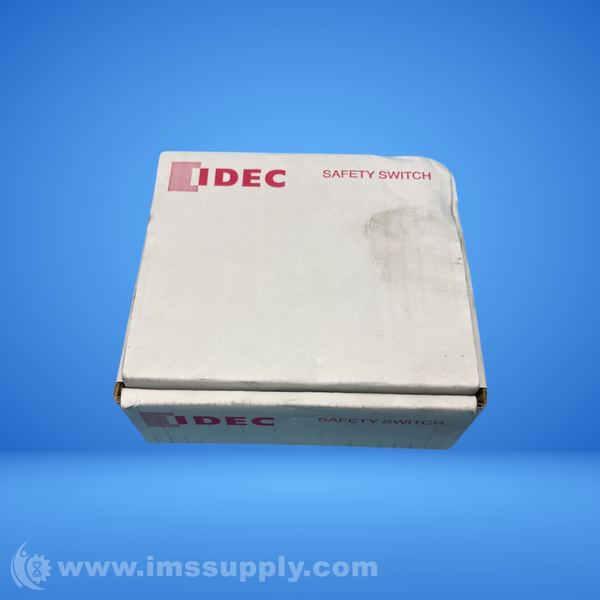

New - Open Box:
