IDEC RH2B-U-AC110-120V POWER RELAY
Quick Overview
Manufactured By: IDEC
Manufacturer Part Number: RH2B-U-AC110-120V
IMS Product Code: 826092
Packaging: Sold Individually
Description:

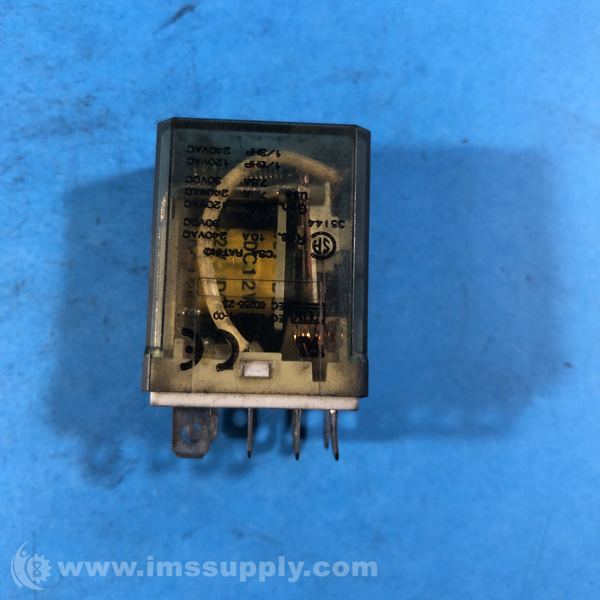

IDEC RH2B-U-AC110-120V Power Relay
Electromechanical power relay with DPDT contacts, 10A current rating, and 120VAC coil voltage. Socket mount with blade terminals.
Specifications
- Contact Configuration: DPDT
- Contact Current: 10A
- Coil Voltage: 120VAC
- Contact Voltage VAC: 110V
- Contact Voltage VDC: 30V
- Product Range: RH Series
- Coil Type: Non Latching
- Relay Terminals: Quick Connect
- Contact Material: Silver Cadmium Oxide
- Coil Resistance: 4170 Ohms
- Contact Resistance: 50 mOhms
- Contact Voltage Rating: 300 VAC
- Dimensions: 0.819 L x 1.07 W x 1.39 D in
- Mounting Type: Socket Mount
- Relay Type: Electromechanical
- Series: RH Series
- Termination: Plug-In
