IDEC RR2P-UAC120V DPDT RELAY
Quick Overview
Manufactured By: IDEC
Manufacturer Part Number: RR2P-UAC120V
IMS Product Code: 1778414
Packaging: Sold Individually
Description:

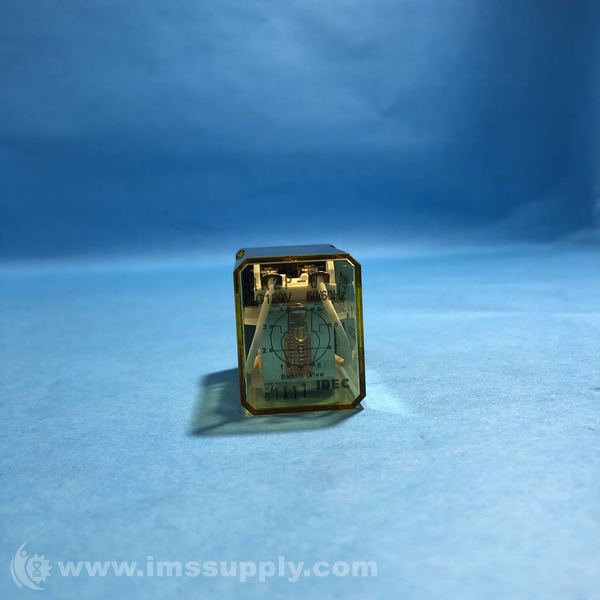

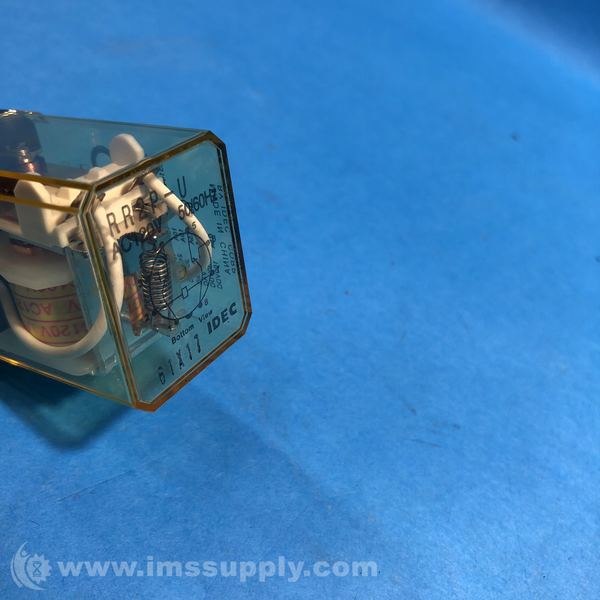

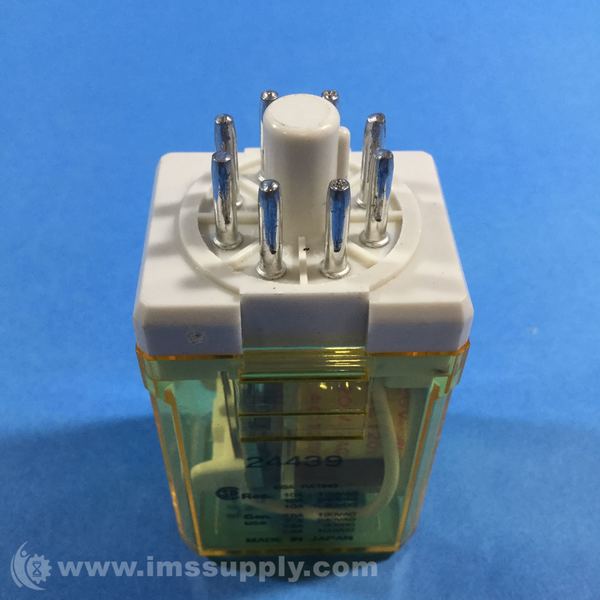

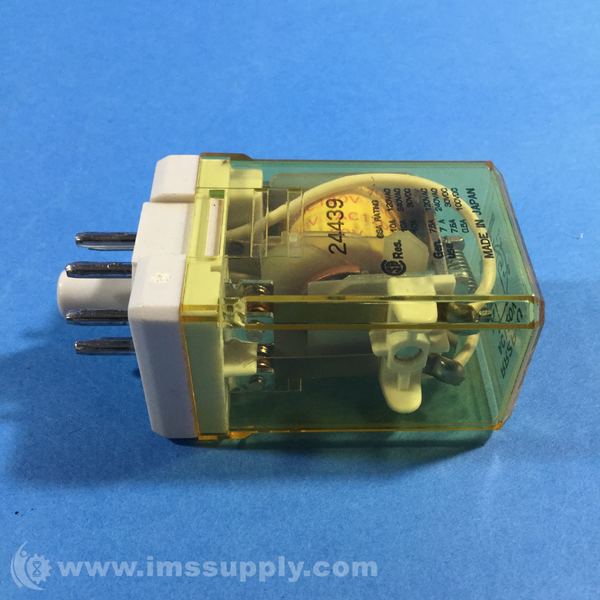

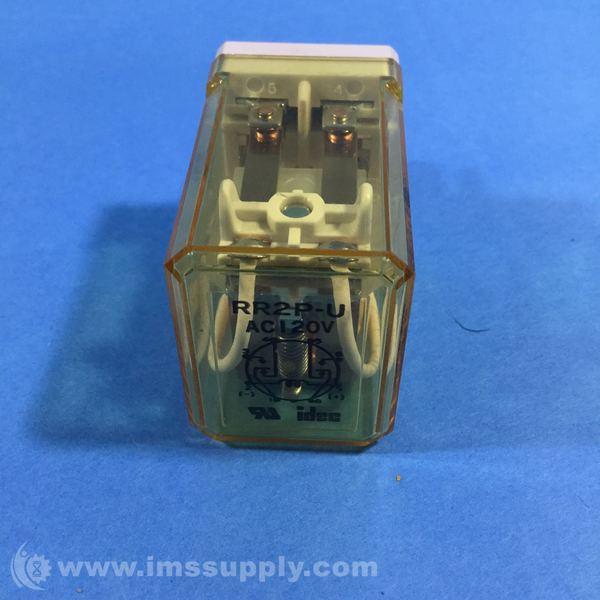

Idec RR2P-UAC120V DPDT Relay
Idec RR2P-UAC120V is a DPDT (Double-Pole Double-Throw) power relay with a 120V AC coil voltage and 10A contact rating. It features a plug-in design with 8 pins and is suitable for panel mounting.
Specifications
- Amperage Rating: 10 A
- Coil Voltage: 120 V AC
- Contact Form: DPDT
- Contact Rating: 110/220 V AC/30 V DC
- Dimensions: 35.6 mm H x 28.6 mm W
- Mounting Type: Panel Mounting, Plug-in
- Number of Poles: 2
- Series: RR Series
- Temperature Rating: -25 to 40 deg C
- Terminal Type: Pin
- Type: Midget Standard
