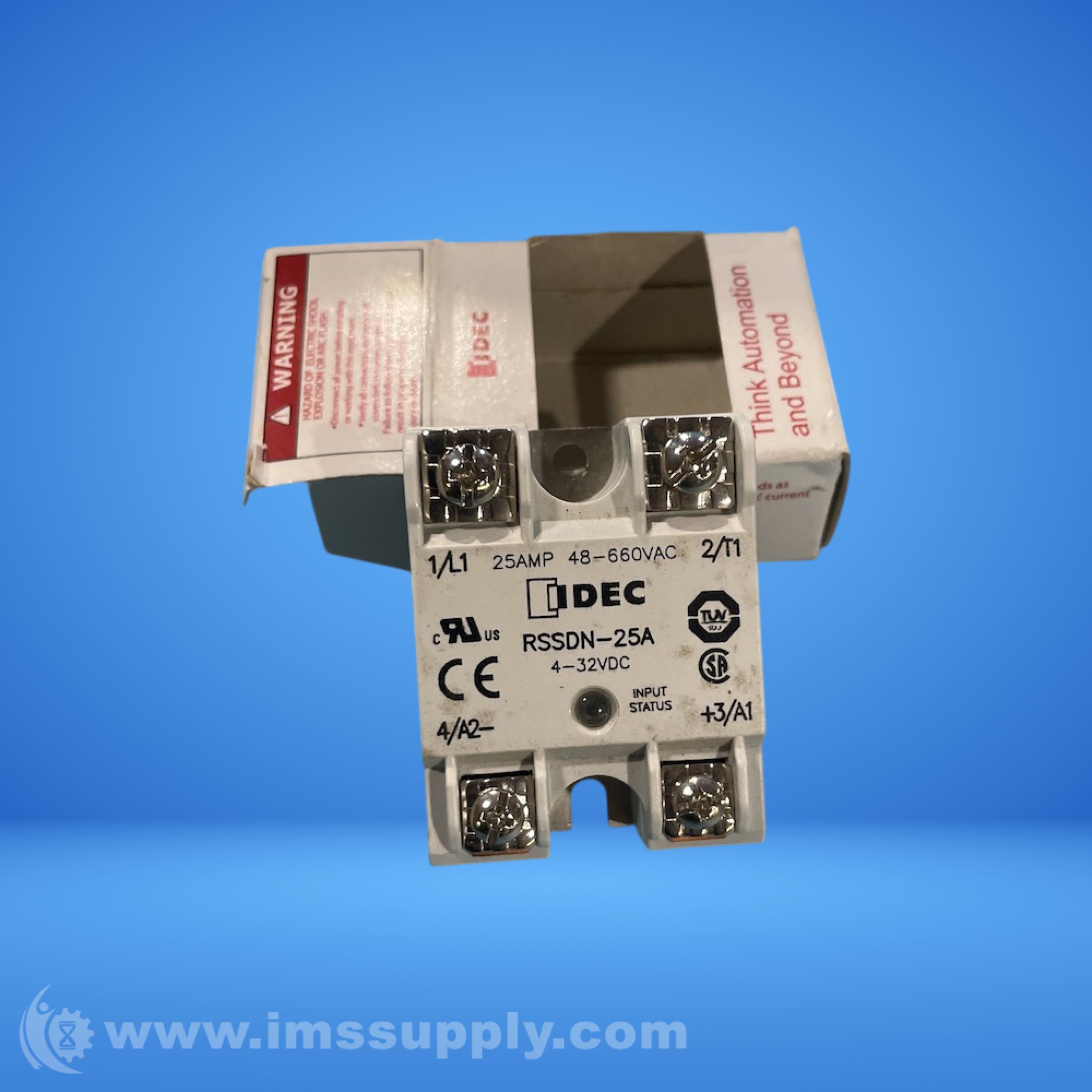

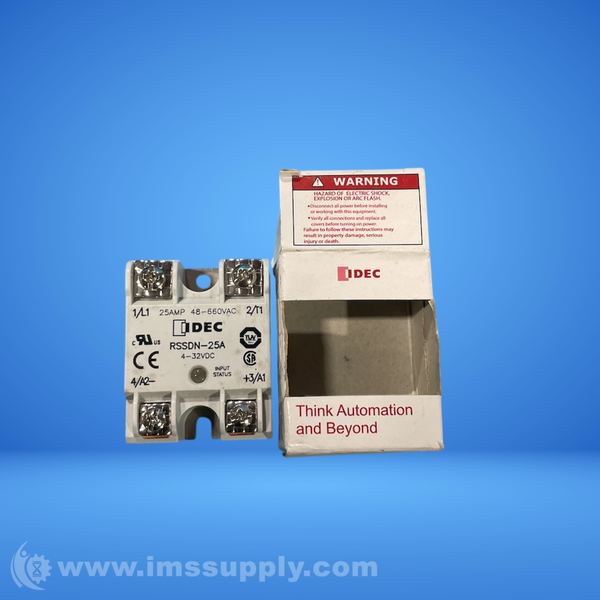

IDEC RSSDN-25A SOLID STATE RELAY
Quick Overview
Manufactured By: IDEC
Manufacturer Part Number: RSSDN-25A
IMS Product Code: 826276
Packaging: Sold Individually
Description:
Idec RSSDN-25A Solid State Relay
Solid State Relay, SPST-NO, 25 A, 660 VAC, Panel Mount, Screw, Zero Crossing
Specifications
- Type: Solid State
- Contact Rating: 25 A
- Current Rating: 25 A
- Supply Voltage (Nominal): 24 VDC
- Coil Voltage: 24 VDC
- Mount: DIN rail,Panel
- Input Current: Regulated 10 mA
- Frequency Range: 47-80 Hz
- Pick Up Voltage: 4 VDC
- Drop Out Voltage: 1 VDC
- Voltage Range: 4-32 VDC
- Contact Type: 1 Form A, SPST-N.O.
- Off State Leakage: 20 mA @ rated voltage (maximum)
- Minimum Current: 50 mA
- Output Voltage: 48-660 VAC
- Over Voltage Rating: 1200 PIV
- Voltage Drop: 1.6V (maximum) @ rated current
- Capacitance: 8 pF
- Dielectric Strength: 4000 rms minimum
- Surge Current: 1-Cyle 150A, 1-Second 30A
- Reverse Voltage Protection: Yes (-32 VDC)
- Zero Voltage Switching: Yes
- Turn Off Time: 1/2 cycle @ 60 Hz
- Turn On Time: 1/2 cycle @ 60 Hz
- Dimensions: 2.25" H x 1.75" W x 0.95" D (5.72 x 4.45 x 2.41 cm)
- Approvals: UL-recognized component, File #E194577: CE certified
- Weight: 0.22 lb (0.10 kg)
- Contact Configuration: SPST-NO
- Load Current: 25A
- Operating Voltage Max: 660VAC
- Relay Mounting: Panel Mount
- Relay Terminals: Screw
- Switching Mode: Zero Crossing
- Operating Voltage Min: 48VAC
- Control Voltage Min: 4VDC
- Control Voltage Max: 32VDC
- Product Range: RSS Series
- SVHC: No SVHC (16-Jul-2019)
- Brand: IDEC
- MPN: RSSDN-25A
- Country/Region of Manufacture: Japan
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
