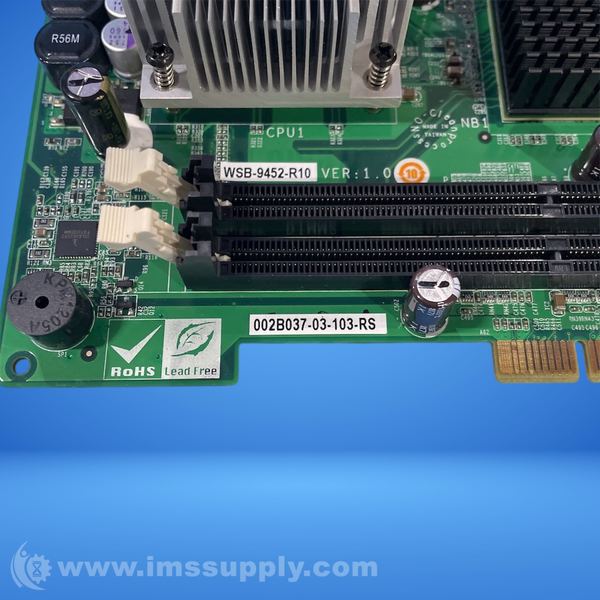

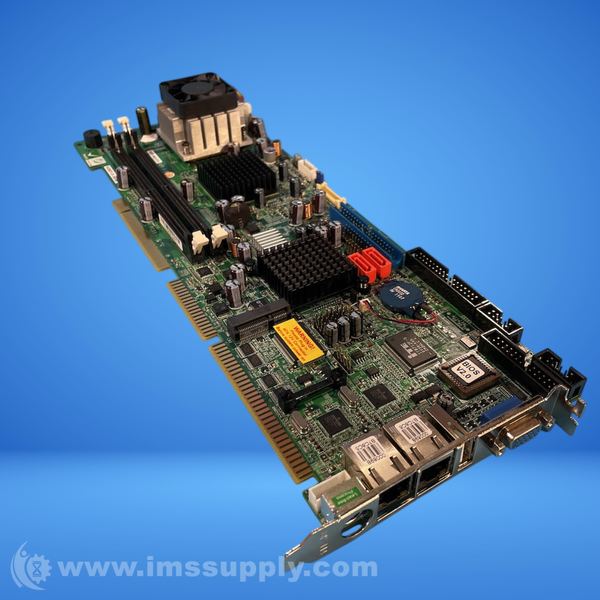

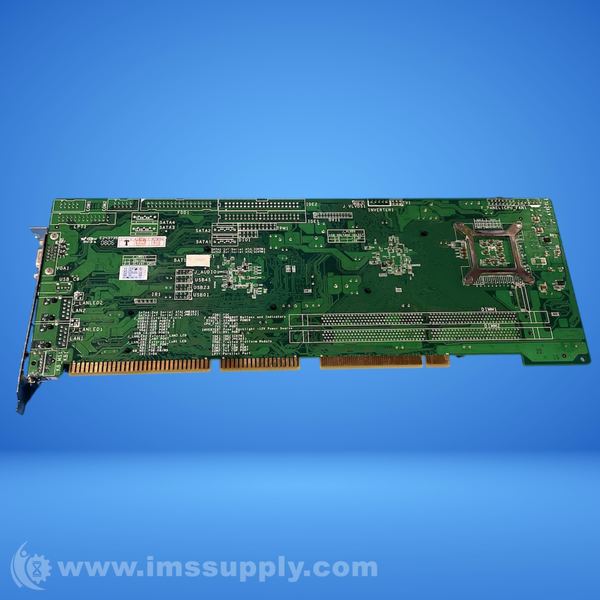

IEI WSB-9452-R10 PICMG 1.0 MOTHERBOARD
Quick Overview
Manufactured By: IEI INTEGRATION CORP.
Manufacturer Part Number: WSB-9452-R10
IMS Product Code: 2154221
Packaging: Sold Individually
Description:
IEI WSB-9452-R10 PICMG 1.0 Motherboard
PICMG 1.0 Industrial motherboard with Intel Core 2 Duo CPU, VGA/DVI/HDTV, Dual PCIe GbE, and SATA II. It features 2 x 240-pin DDRII RAM slots, Dual Broadcom BCM5787 PCI express GbE, and 5.1 Channel Audio with Realtek ALC655.
Specifications
- form factor: PICMG
- system chipset: Intel 945G, Intel 945GM + ICH7M
- video chipset: Intel 945GM
- audio: 5.1 Channel Audio Kit with Realtek ALC655
- bios: AMI Flash BIOS
- cpu: Socket 479 Intel Core2 Duo, Core Duo/Solo with 533/667 MHz FSB
- digital i/o: 8 bit digital I/O, 4 input/4 output
- dimension: 338 mm x 122 mm
- display: VGA integrated in Intel 945GM; DVI
- ethernet: Dual Broadcom BCM5787 PCI express GbE with ASF2.0 remote control support
- humidity: 5% ~ 95% non-condensing
- i/o interface: 2 x RS232; 7 x USB 2.0; 1 x FDD; 1 X LPT; 1 x PCI Express Mini card; 1 x IrDA; 1 x PS/2 for KB/MS; 1 x 20-pin LPC (TPM Module)
- lvds: Dual Channel 18-bit LVDS
- power consumption: 5V@7.15A, +12V@0.14A
- power supply: AT/ATX Power
- system memory: 2 x 240-pin Dual channel DDRII 400/533/667 MHz up to 2GB
- temperature: 0 ~ 60 degrees C
- watchdog timer: Software programmable supports 1~255 sec. system reset
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
