IFM EFECTOR IE5318 INDUCTIVE SENSOR
Quick Overview
Manufactured By: IFM EFECTOR
Manufacturer Part Number: IE5318
IMS Product Code: 1861194
Packaging: Sold Individually
Description:

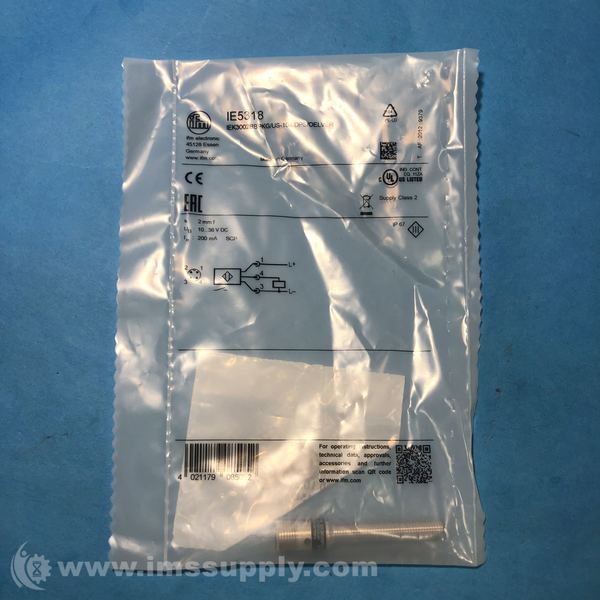

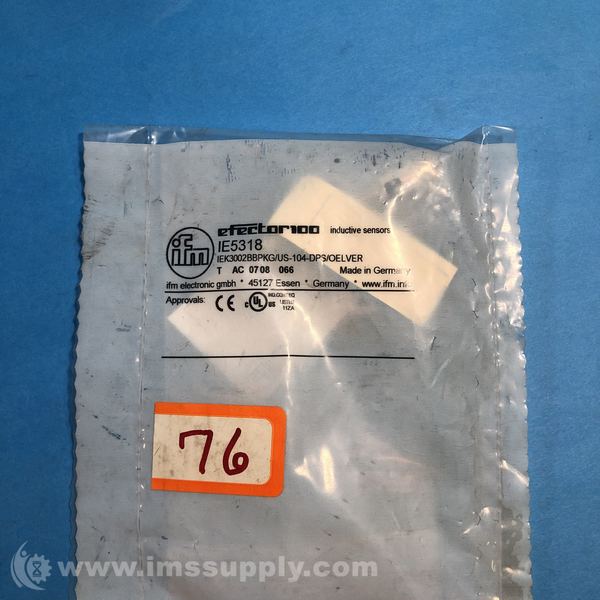

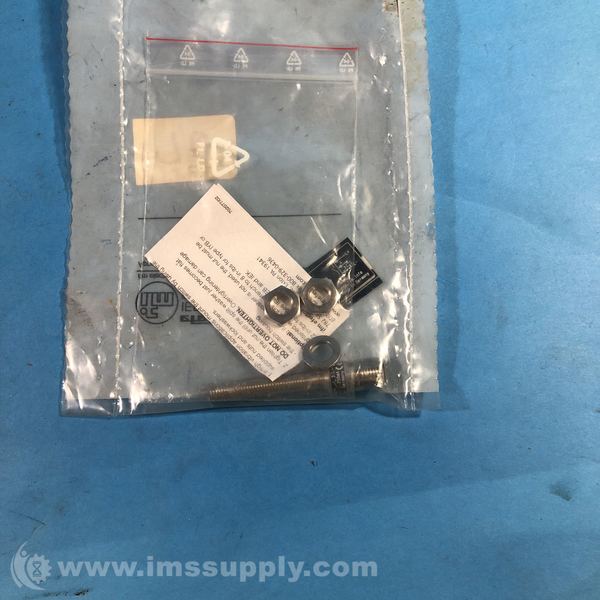

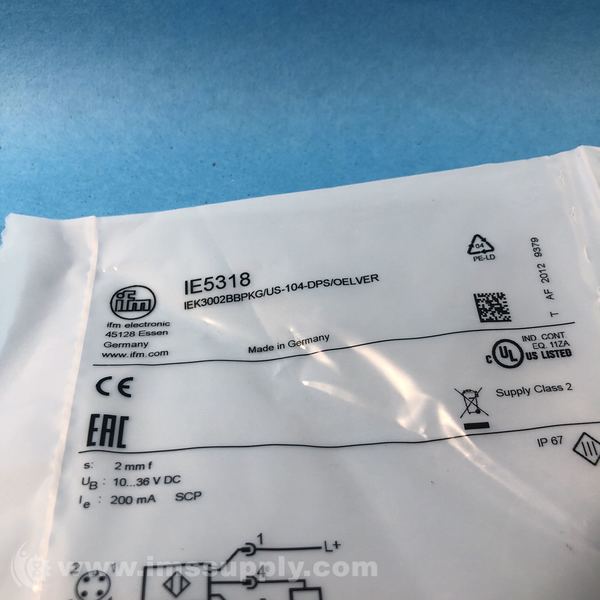

IFM Efector IE5318 Inductive Sensor
Inductive sensor with threaded type housing, PNP output, normally open function, 2mm sensing range, 10-30V DC operating voltage, and IP67 protection.
Specifications
- Electrical design: PNP
- Output function: normally open
- Sensing range [mm]: 2
- Housing: Threaded type
- Dimensions [mm]: M8 x 1 / L = 60
- Operating voltage [V]: 10...30 DC
- Current consumption [mA]: < 10
- Protection class: III
- Reverse polarity protection: yes
- Max. voltage drop switching output DC [V]: 1.6
- Permanent current rating of switching output DC [mA]: 100
- Switching frequency DC [Hz]: 800
- Short-circuit protection: yes
- Overload protection: yes
- Real sensing range Sr [mm]: 2 ± 10 %
- Operating distance [mm]: 0...1.62
- Increased sensing range: yes
- Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
- Hysteresis [% of Sr]: 1...20
- Switch-point drift [% of Sr]: -10...10
- Ambient temperature [°C]: -25...70
- Protection: IP 67
- MTTF [years]: 1379
- Mounting: flush mountable
- Thread designation: M8 x 1
- Material: brass white bronze coated; sensing face: LCP orange; LED window: PEI; lock nuts: brass white bronze coated
- Tightening torque [Nm]: A = 5 mm: 1,5 Nm; B: 2 Nm
- Display: Switching status
- Switching status: 4 x 90° LED, yellow
- Connection: Connector: 1 x M12; coding: A
