IFM EFECTOR MK5331 C-SLOT CYLINDER SENSOR
Quick Overview
Manufactured By: IFM EFECTOR
Manufacturer Part Number: MK5331
IMS Product Code: 2131188
Packaging: Sold Individually
Description:
IFM Efector MK5331 C-Slot Cylinder Sensor
C-slot mounting (tall), 3-wire DC PNP
Specifications
- electrical design: PNP
- output function: normally open
- dimensions: 17.5 x 2.8 x 7.7 mm
- operating voltage: 10...30 V DC
- current consumption: < 10 mA
- protection class: III
- reverse polarity protection: yes
- max. power-on delay time: 30 ms
- max. voltage drop switching output DC: 2.5 V
- permanent current rating of switching output DC: 100 mA
- switching frequency DC: 5000 Hz
- short-circuit protection: yes
- type of short-circuit protection: yes (non-latching)
- overload protection: yes
- magnetic sensitivity: 2 mT
- travel speed: > 10 m/s
- hysteresis: 1 mm
- repeatability: < 0.2 mm
- ambient temperature: -25...85 degrees C
- protection: IP 65; IP 67
- MTTF: 2064 years
- weight: 12.2 g
- mounting: non-flush mountable
- cylinder type: C-slot cylinders
- material: housing: PA; Fastening clamp: stainless steel
- tightening torque: < 0.24 Nm
- display: 1 x LED, yellow

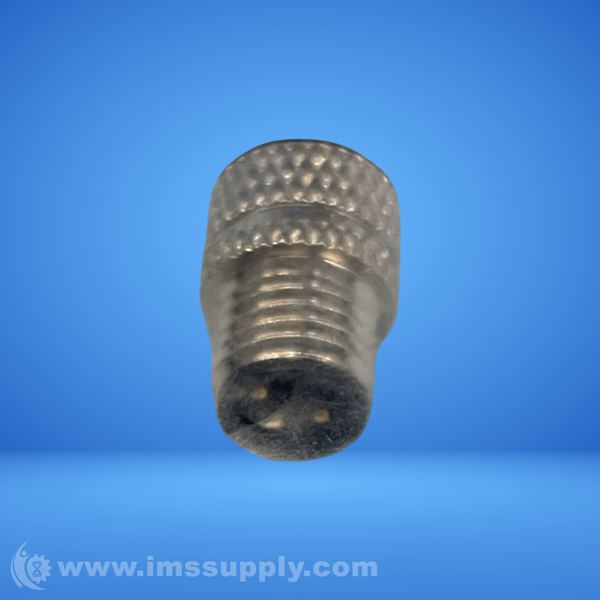

- connection: Cable: 0.3 m, PUR; Connector: 1 x M8; coding: A; Locking: Knurled nut, rotatable

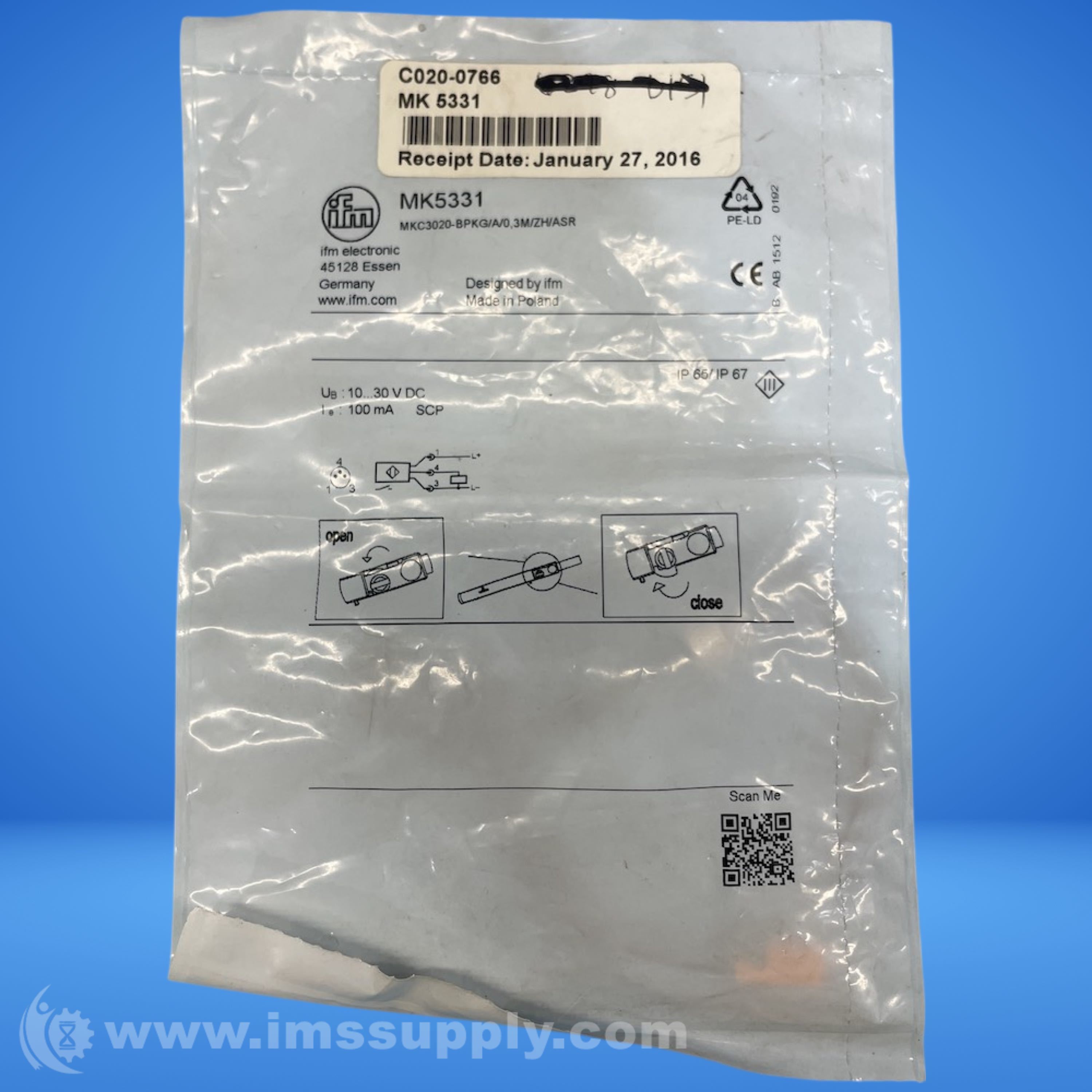

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
