IFM EFECTOR OY050S SAFETY LIGHT CURTAIN SET

MSRP: $2,288.22
Starting At: $1,750.00

Quick Overview

Manufactured By: IFM EFECTOR
Manufacturer Part Number: OY050S
IMS Product Code: 1802096

Description:

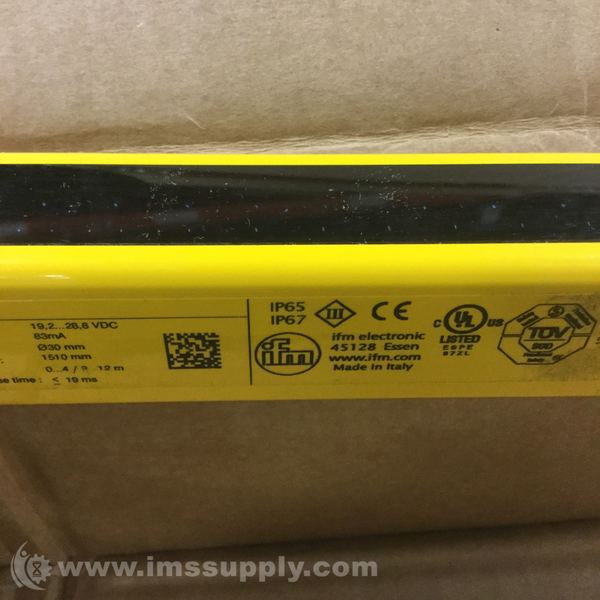

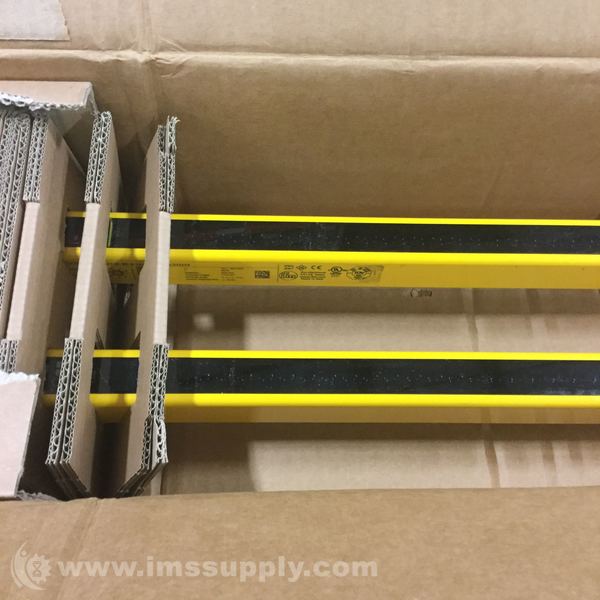

IFM Efector OY050S Safety Light Curtain Set

Specifications:

Application

  • Protective function     access prevention hand protection

Electrical data

  • Operating voltage tolerance [%]     20
  • Operating voltage [V]     24 DC
  • Protection class     III
  • Reverse polarity protection     yes
  • Power-on delay time [s]     < 2
  • Type of light     infrared light
  • Wave length [nm]     950
  • Receiver: Current consumption [mA]     83
  • Transmitter: Current consumption [mA]     42

Outputs

  • Electrical design     PNP
  • Number of OSSD outputs     2
  • Max. current load per OSSD output [mA]     400; (24 V)
  • Short-circuit protection: yes

Detection zone

  • Protected area height [mm]     1510
  • Resolution (detection capacity d) [mm]     30
  • Protection area width (low light intensity) [m]     0...4
  • Protection area width (high light intensity) [m]     3...12

Response times

  • Response time [ms]     18.5

Operating conditions

  • Applications     class C to EN 60654-1 weatherproof application
  • Ambient temperature [°C]     -10...55
  • Storage temperature [°C]     -20...70
  • Max. relative air humidity [%]     95
  • Protection     IP 65; IP 67

Tests / approvals

  • EMC: IEC 61496-1
  • Shock resistance: IEC 61496-1
  • Vibration resistance: IEC 61496-1

Safety Classification

  • ISO 13849-1     category: 4, PL: e
  • IEC 61508     SIL 3
  • IEC 62061     SILCL 3
  • Mission time TM [h]     175200
  • Safety-related reliability PFHD [1/h]     1.8E-08

Mechanical data

  • Weight [g]     4810
  • Dimensions [mm]     1563 x 28 x 30
  • Materials     housing: aluminium; front lens: PC
  • Length L [mm]     1563

Displays / operating elements

  • Display
  • transmitter     1 LED
  • receiver     2 LED

Accessories

  • Accessories (supplied)
  • mounting bracket: 6
  • slot nuts: 6
  • Nuts

Remarks

  • Notes     For 8-pole sockets the core colours are not standardised.; Please note the wiring of the sensor and the sockets (see data sheet).

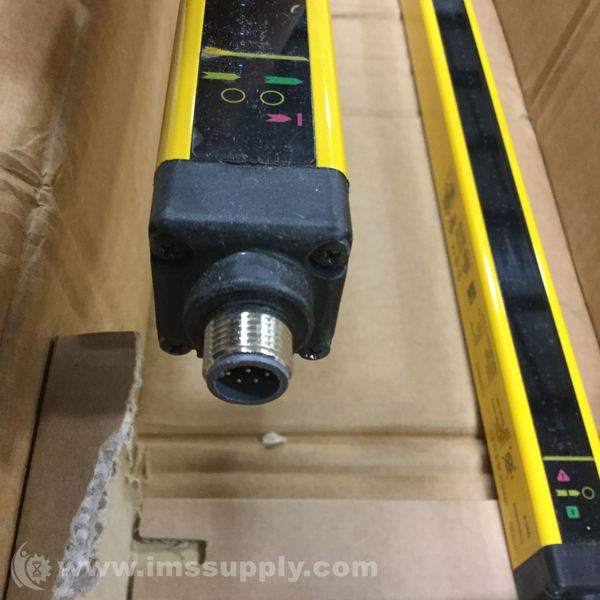

Electrical connection - receiver

  • Connection     Connector: 1 x M12; Maximum cable length: 100 m; for wire cross-section 0.34 mm²

Electrical connection - transmitter

  • Connection     Connector: 1 x M12




New - Open Box:
A new product with open packaging.

Availability: 1 In Stock

Ships today if ordered in the next 7 hours and 35 minutes.

Let IMS Repair Yours:
Connect with IMS engineers who will repair your broken or damaged IFM EFECTOR OY050S SAFETY LIGHT CURTAIN SET. Contact us today for details.

Repair Time Estimates Provided In Quote
