IFM EVC003 FEMALE CORDSET
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: EVC003
IMS Product Code: 1952593
Packaging: Sold Individually
Description:

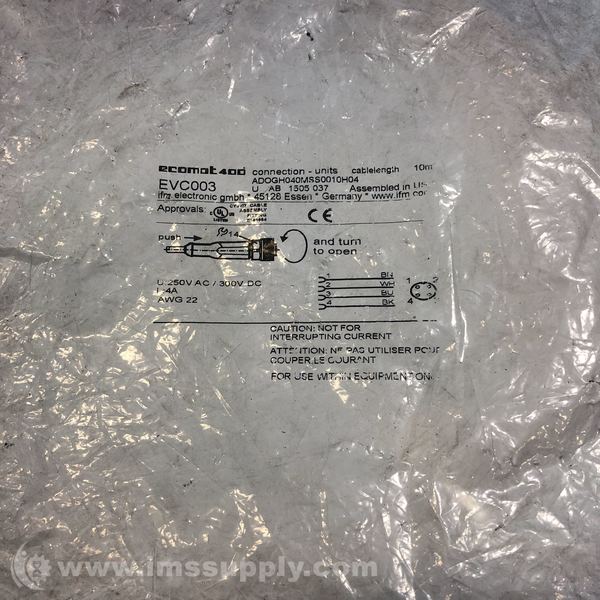

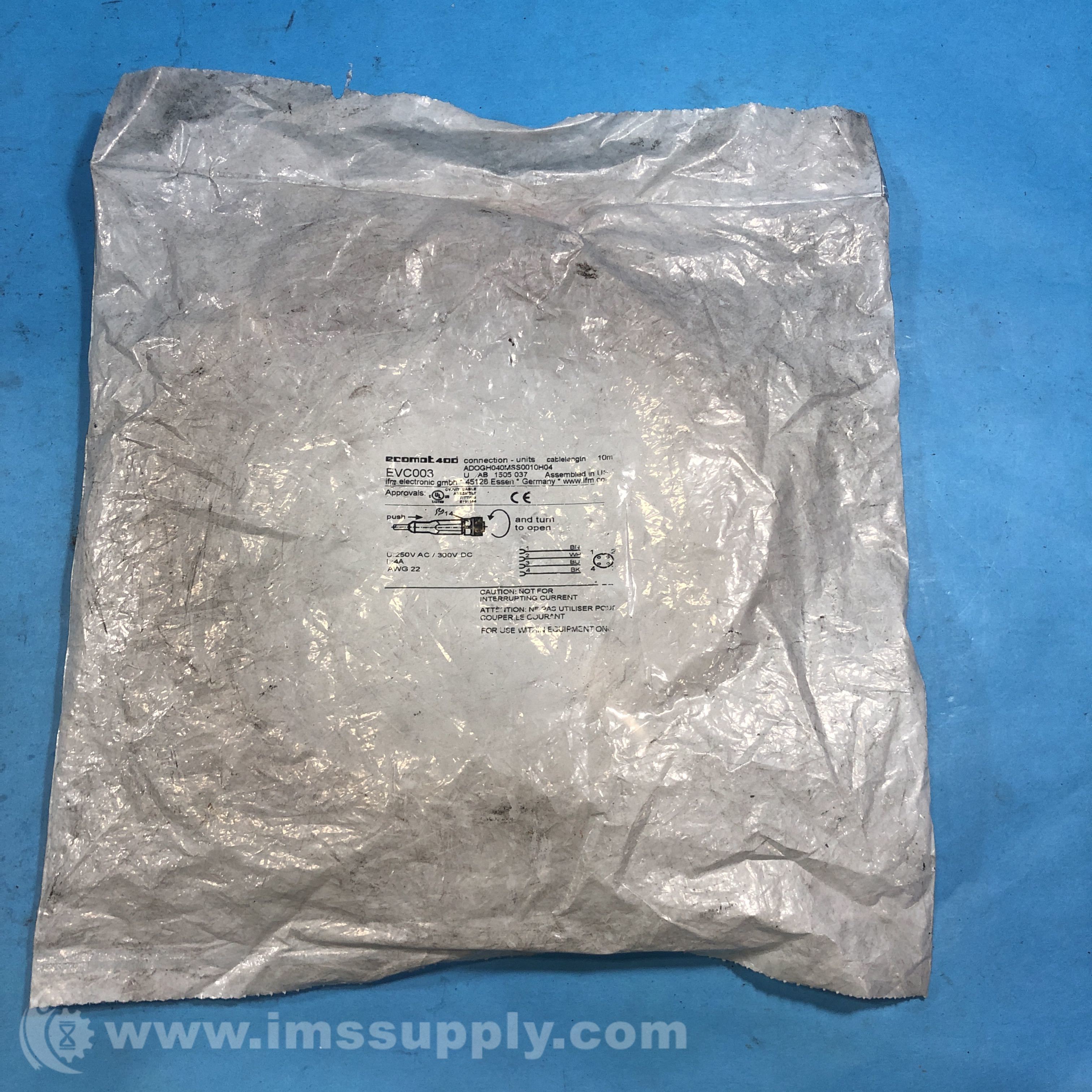

Ifm EVC003 Female Cordset

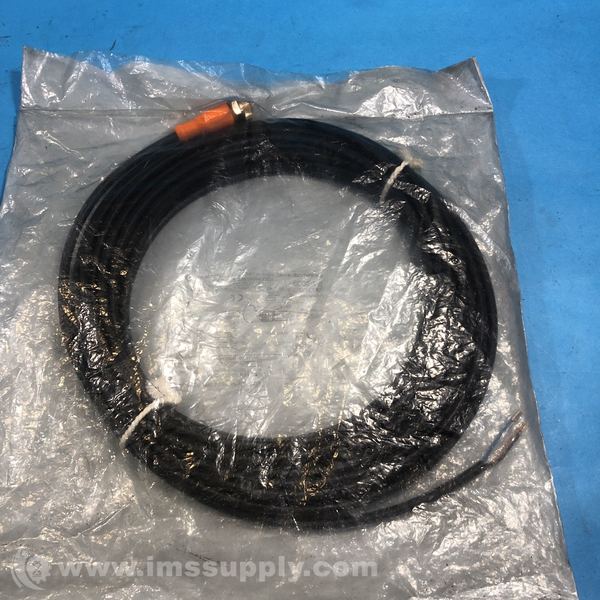

M12 female cordset with 10m PUR cable, 4-pin, straight design, IP65/IP67/IP68/IP69K protection, resistant to oils and coolants.
Specifications
- Operating Voltage: 250V AC / 300V DC
- Current Rating: 4 Amps
- Protection Class: II
- Design: Straight
- Protection: IP 65 / IP 67 / IP 68 / IP 69K
- Material Body: Housing: TPU (Urethane) Orange; Sealing: Viton
- Material Nut: Brass; Nickel-Plated
- Tightening Torque For knurled Nut: 0.6...1.5 Nm
- Bending Radius For Flexible Applications: Min. 10 x Cable Diameter
- Connection: PUR Cable / 10 m; 4 x 0.34 mm² (42 x Ø 0.1 mm); Ø 4.9 mm; Halogen-Free
- Sheath Color: Black
- Core Colors: BK: Black; BN: Brown; BU: Blue; WH: White
- Number of Pins: 4
- Coding: A
