IFM IE5318 INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: IE5318
IMS Product Code: 1845286
Packaging: Sold Individually
Description:

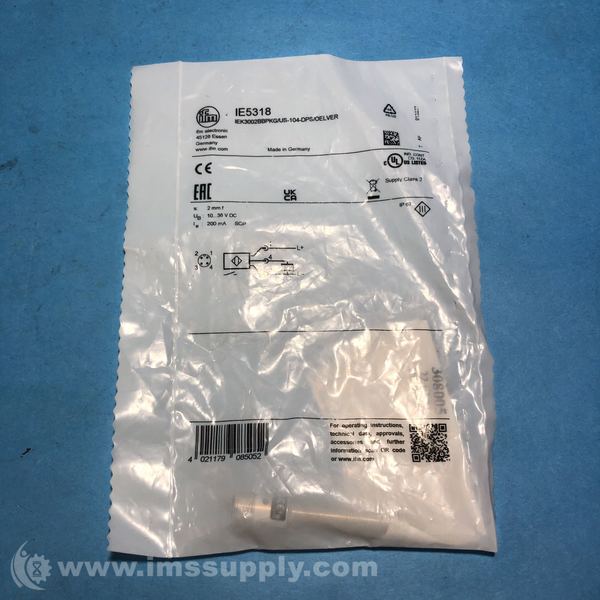

Ifm IE5318 Inductive Proximity Sensor
Inductive sensor for detecting metal objects, threaded type M8 x 1, PNP output, normally open function, sensing range 2 mm.
Specifications
- Electrical design: PNP
- Output function: Normally open
- Sensing range: 2 mm
- Housing: Threaded type M8 x 1
- Operating voltage: 10...30 DC V
- Current consumption: < 10 mA
- Permanent current rating of switching output DC: 100 mA
- Switching frequency DC: 800 Hz
- Protection class: III
- Reverse polarity protection: Yes
- Short-circuit protection: Yes
- Overload protection: Yes
- Hysteresis: 1...20 % of Sr
- Ambient temperature: -25...70 degrees C
- Protection: IP 67
- MTTF: 1379 years
- Material: Brass white bronze coated; sensing face: LCP orange
- Tightening torque: A = 5 mm: 1.5 Nm; B: 2 Nm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 13 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box (Special):
Item comes with a plastic piece that goes around it.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box (Special):

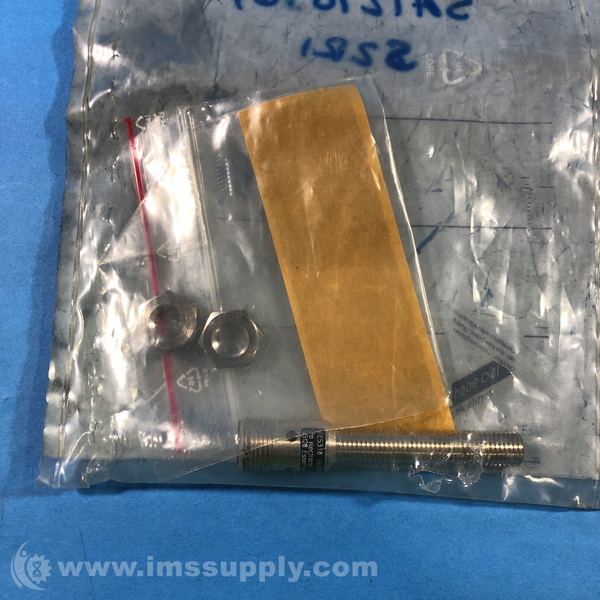

Item comes with two nuts.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
