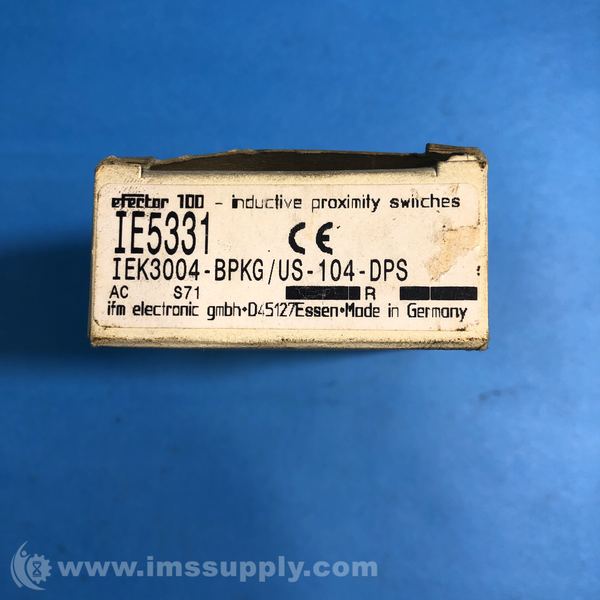

IFM IE5331 INDUCTIVE SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: IE5331
IMS Product Code: 1732364
Packaging: Sold Individually
Description:
Ifm IE5331 Inductive Sensor
Inductive sensor, M8 x 1 / L = 60 mm, Sensing range 4 mm non-flush mountable, normally open, DC PNP, M12 Connector, IP 67, 3-wire, Ambient temperature 0...70 degrees C, Switching frequency 300 Hz
Specifications
- Electrical design: PNP
- Output function: normally open
- Sensing range: 4 mm
- Housing: Threaded type
- Dimensions: M8 x 1 / L = 60
- Operating voltage: 10...30 DC
- Current consumption: < 10 mA
- Protection class: III
- Reverse polarity protection: yes
- Max. voltage drop switching output DC: 2.5 V
- Permanent current rating of switching output DC: 100 mA
- Switching frequency DC: 300 Hz
- Short-circuit protection: yes
- Overload protection: yes
- Real sensing range Sr: 4 ± 10 %
- Operating distance: 0...3.25 mm
- Increased sensing range: yes
- Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.5 / copper: 0.4
- Hysteresis: 1...20 % of Sr
- Switch-point drift: -10...10 % of Sr
- Ambient temperature: 0...70 degrees C
- Protection: IP 67
- MTTF: 1379 years
- Weight: 22.5 g
- Mounting: non-flush mountable
- Thread designation: M8 x 1
- Material: brass white bronze coated; sensing face: LCP orange; LED window: PEI; lock nuts: brass white bronze coated
- Tightening torque: A = 5 mm: 1,5 Nm; B: 2 Nm
- Full-metal housing: no
- Display: Switching status
- Connection: Connector: 1 x M12; coding: A
