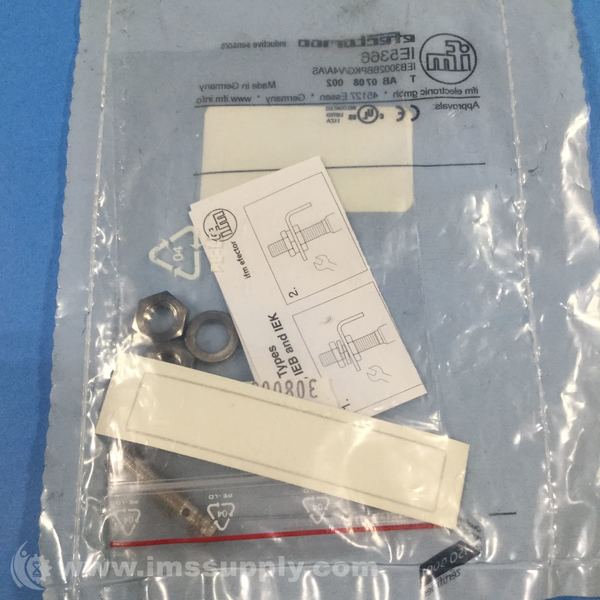

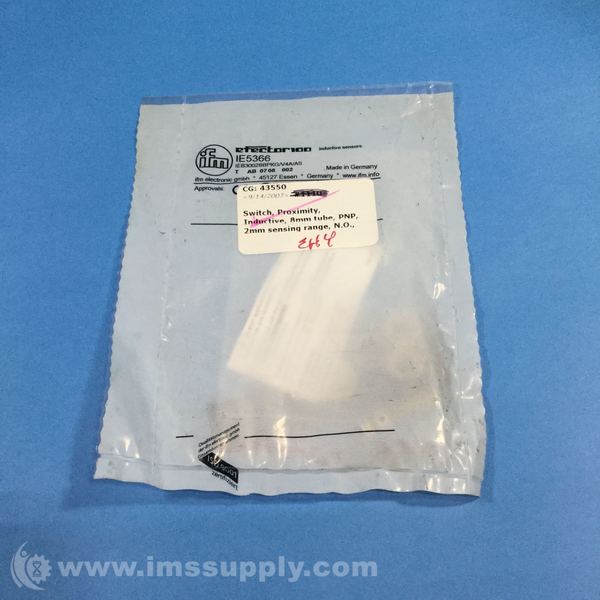

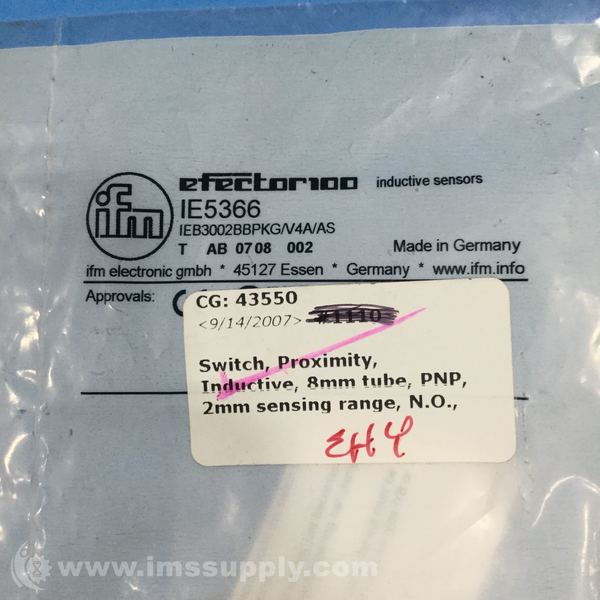

IFM IE5366 INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: IE5366
IMS Product Code: 1824204
Packaging: Sold Individually
Description:
Ifm IE5366 Inductive Proximity Sensor
Inductive sensor with PNP output, 2mm sensing range, M8x1 threaded housing, 30mm length.
Specifications
- Electrical Design: PNP
- Output Function: Normally Open
- Sensing Range: 2 mm
- Housing: Threaded Type
- Dimensions: M8 x 1 / L = 30
- Operating Voltage: 10...30 DC
- Current Consumption: < 10 mA
- Protection Class: III
- Reverse Polarity Protection: Yes
- Max Voltage Drop: 2.5 V
- Permanent Current Rating: 100 mA
- Switching Frequency: 800 Hz
- Short Circuit Protection: Yes
- Overload Protection: Yes
- Real Sensing Range: 2 � 10 %
- Operating Distance: 0...1.62 mm
- Increased Sensing Range: Yes
- Hysteresis: 1...20 % of Sr
- Switch Point Drift: -10...10 % of Sr
- Ambient Temperature: -25...70 degrees C
- Protection: IP 65; IP 67
- MTTF: 1462 years
- Weight: 13.2 g
- Mounting: Flush Mountable
- Thread Designation: M8 x 1
- Material: Stainless Steel (1.4401 / 316)
- Tightening Torque: 2 Nm; 5 Nm
- Display: Switching Status
- LED Indicators: 4 x Yellow LED
- Connection: M8 Connector
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 12 In Stock
