IFM IFC205 INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: IFC205
IMS Product Code: 1845265
Packaging: Sold Individually
Description:

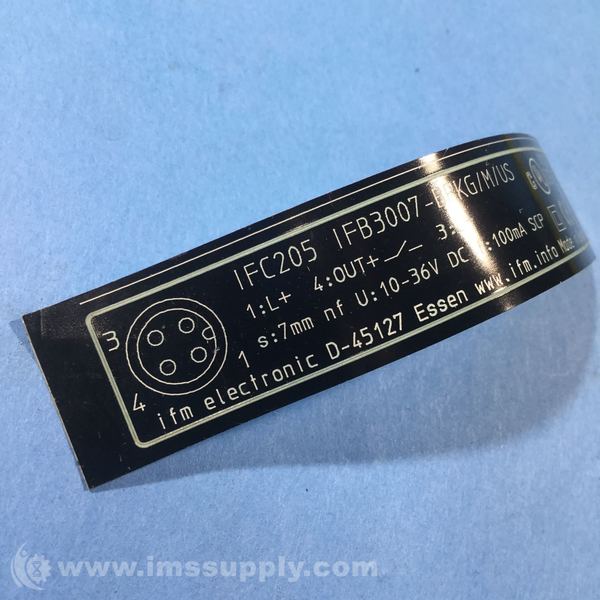

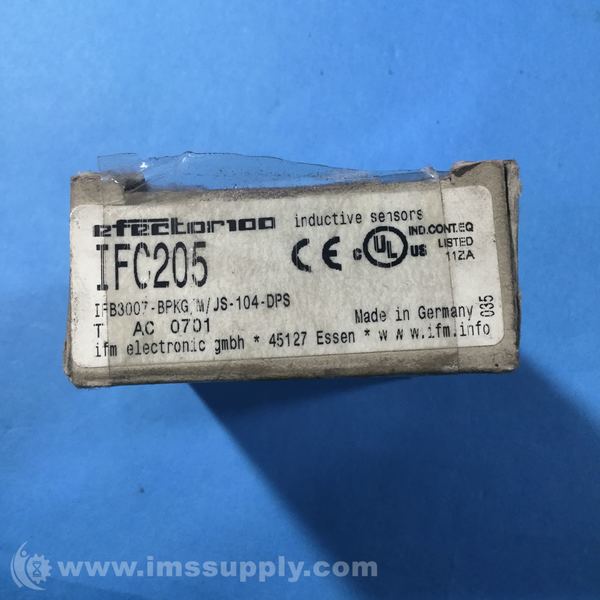

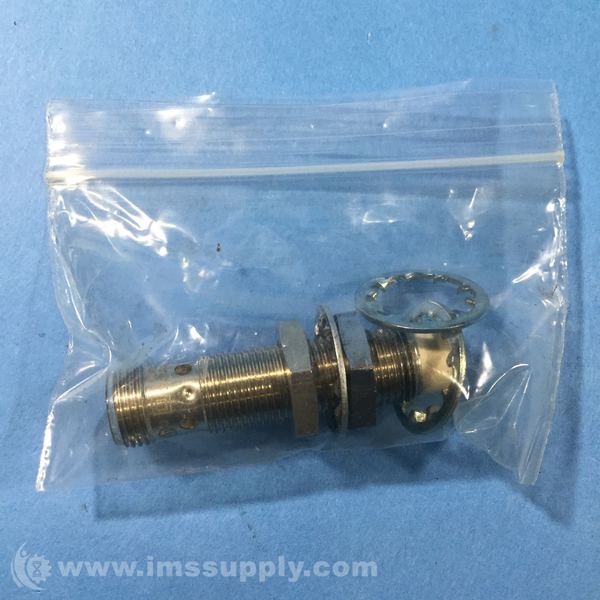

Ifm IFC205 Inductive Proximity Sensor
Inductive proximity sensor for metal working applications with 7mm nonflush range, 12mm diameter metal housing, 3-wire PNP DC, N.O. output, Micro quick disconnect.
Specifications
- type: Inductive proximity sensor
- application: Metal working applications
- sensing range: 7mm
- mounting type: Nonflush
- housing diameter: 12mm
- output type: 3-wire PNP DC
- output configuration: N.O.
- connector type: Micro quick disconnect
- length: 50 mm
- ambient temperature: -25...70 degrees C
- electrical design: DC PNP
- connection: M12 connector
- switching frequency: 700 Hz
- current rating: 100 mA
- protection: IP 68, "Coolant"
- operating voltage: 10...30 V DC
- output status indication: LED 4 x yellow
- housing materials: Brass white bronze coated, active face: LCP white, LED window: PEI, lock nuts: Brass white bronze coated
- mounting: non-flush mountable
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 29 minutes.
