IFM IFT203 INDUCTIVE SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: IFT203
IMS Product Code: 1777100
Packaging: Sold Individually
Description:

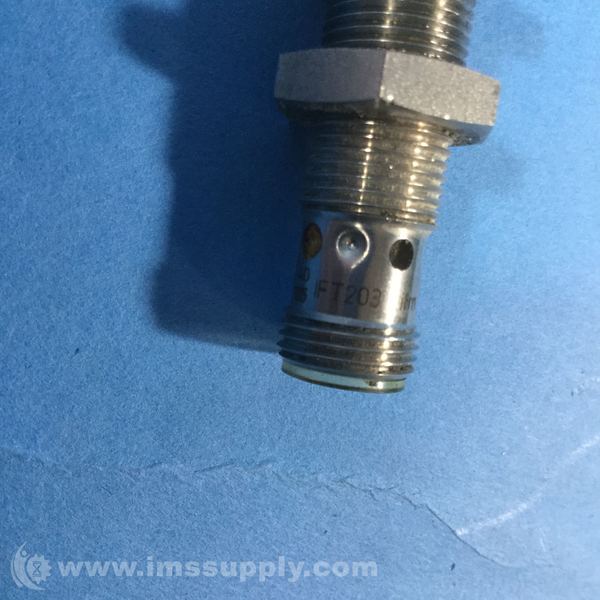

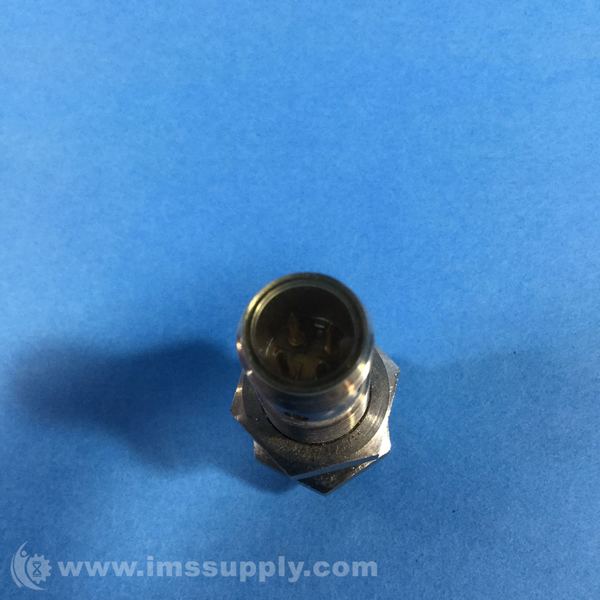

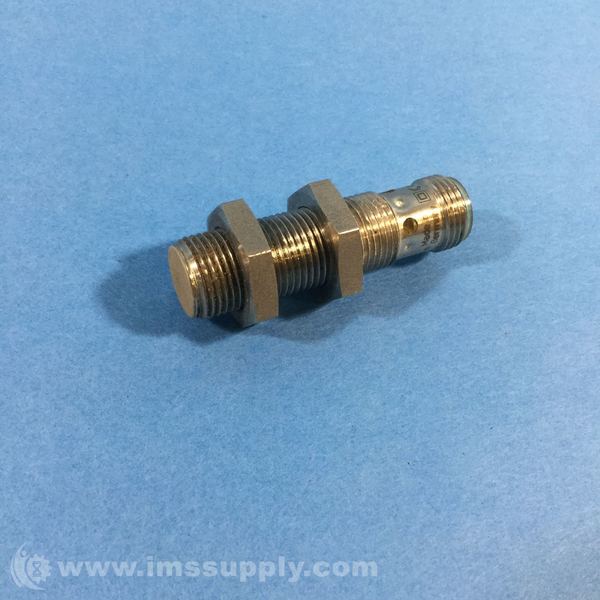

Ifm IFT203 Inductive Sensor
Inductive sensor featuring a wide operating temperature range, temperature shock resistant for frequent temperature fluctuations, and robust stainless steel housing for use in the food and beverage industry. The sensor also offers resistance to high-pressure cleaning with aggressive cleaning agents and a high protection rating for the requirements of harsh industrial environments.
Specifications
- AC/DC: Direct Current
- Power: 10-30V
- Style: PNP
- UNSPSC: 39121500
- Dimensions[mm]: M12 x 1 / L = 45
- Operating voltage[V]: 10...30 DC
- Sensing range[mm]: 4
- Housing: threaded type
- Output function: normally open
- Electrical design: PNP
- Number of Pins: 4
- Current Rating: 10 mA
- Max Operating Temperature: 100 degrees C
- Max Supply Voltage: 30 V
- Min Operating Temperature: 0 degrees C
- Min Supply Voltage: 10 V
- Sensing Distance: 3.24 mm
- Height: 45 mm
- Length: 12 mm
- RoHS: Compliant
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships on Monday, November 17, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
