More Views
IFM IFT245 INDUCTIVE SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: IFT245
IMS Product Code: 1834710
Packaging: Sold Individually
Description:

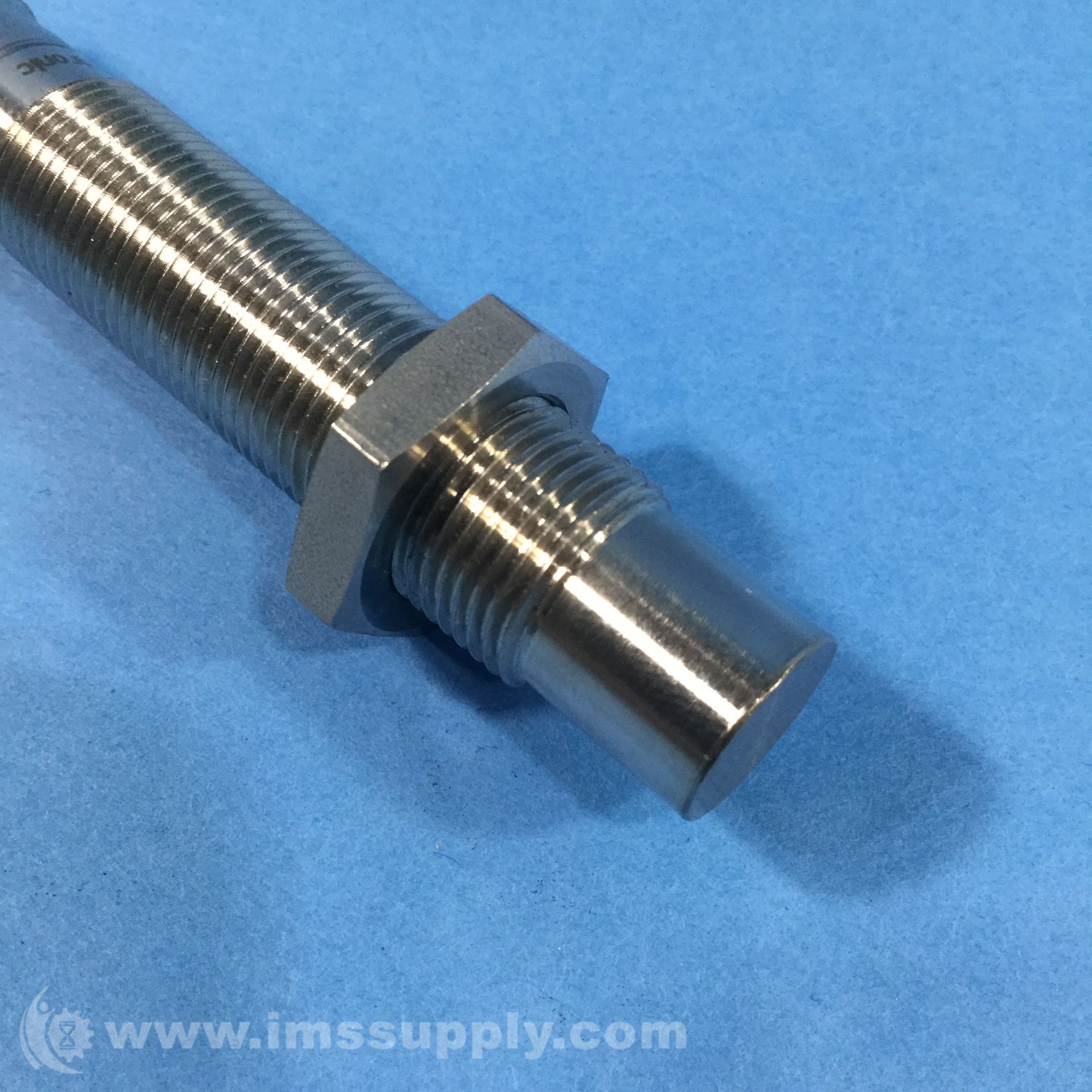

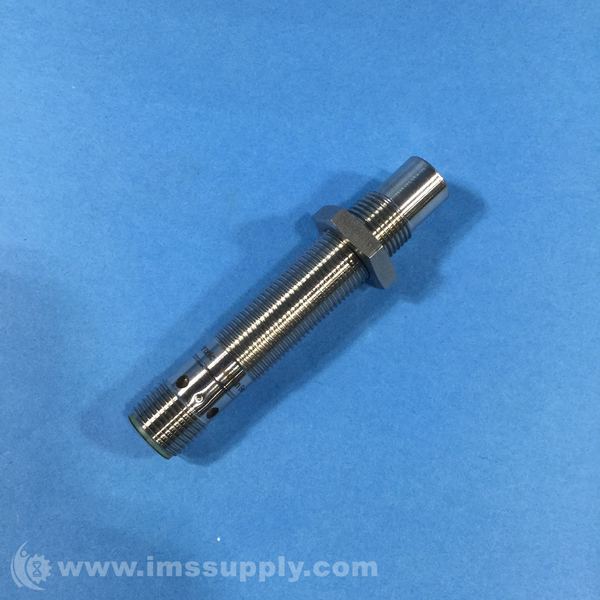

Ifm IFT245 Inductive Sensor
Inductive full-metal sensor with stainless steel housing, M12 x 1 / L = 70 mm, 10-30 V DC, PNP, normally open output, 6 mm sensing range.
Specifications
- Electrical design: PNP
- Output function: normally open
- Sensing range: 6 mm
- Housing: Threaded type
- Dimensions: M12 x 1 / L = 70
- Operating voltage: 10...30 DC
- Current consumption: < 25 mA
- Protection class: III
- Reverse polarity protection: yes
- Max. voltage drop switching output DC: 2.5 V
- Permanent current rating of switching output DC: 100 mA
- Switching frequency DC: 250 Hz
- Short-circuit protection: yes
- Overload protection: yes
- Real sensing range Sr: 6 ± 10 %
- Operating distance: 0...4.9 mm
- Increased sensing range: yes
- Hysteresis: 1...20 % of Sr
- Switch-point drift: -10...10 % of Sr
- Ambient temperature: 0...100 degrees C
- Protection: IP 65; IP 67; IP 68; IP 69K
- MTTF: 1265 years
- Weight: 29.75 g
- Mounting: non-flush mountable
- Material: housing: stainless steel (1.4404 / 316L); sensing face: stainless steel (1.4404 / 316L); lock nuts: stainless steel (1.4404 / 316L)
- Tightening torque: 15 Nm
- Display: Switching status
- Connection: Connector: 1 x M12; coding: A; Contacts: gold-plated
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 6 hours and 31 minutes.
