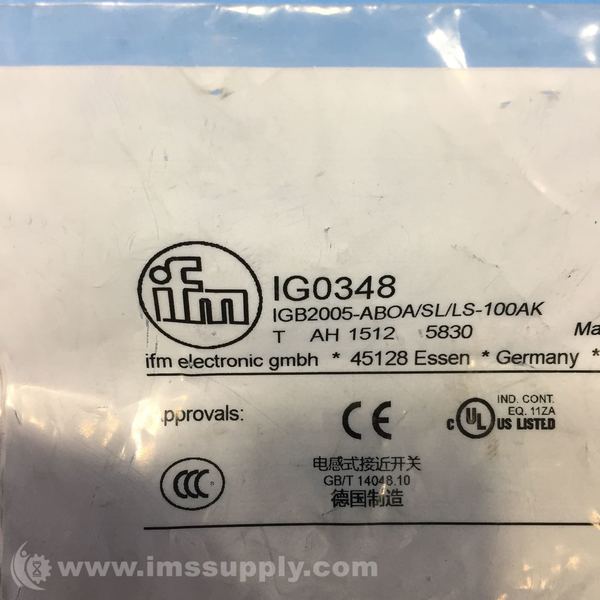

IFM IG0348 INDUCTIVE SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: IG0348
IMS Product Code: 1873276
Packaging: Sold Individually
Description:

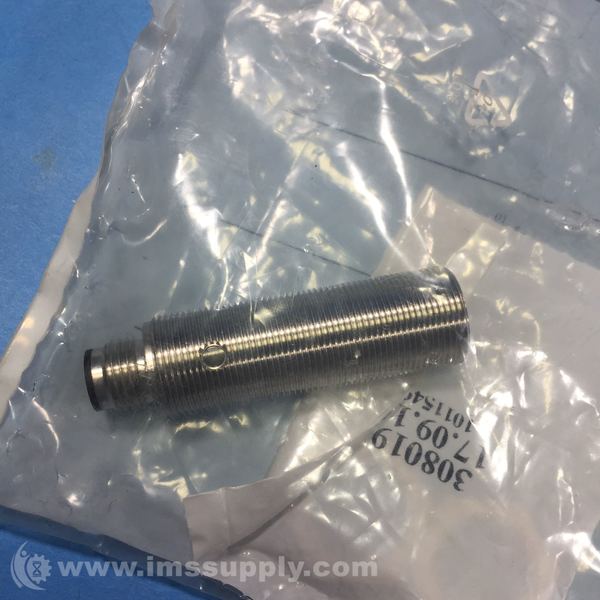

Ifm IG0348 Inductive Sensor
Threaded type inductive sensor
Specifications
- Output function: normally open
- Sensing range: 5 mm
- Housing: Threaded type
- Dimensions: M18 x 1
- Operating voltage: 20...250 AC/DC
- Protection class: I
- Reverse polarity protection: no
- Max. voltage drop switching output DC: 6 V
- Max. voltage drop switching output AC: 6.5 V
- Minimum load current: 5 mA
- Max. leakage current: 2.5 (250 V AC) / 1.3 (110 V AC) / 0.8 (24 V DC) mA
- Permanent current rating of switching output AC: 250; (350 (...50 �C)) mA
- Permanent current rating of switching output DC: 100 mA
- Short-time current rating of switching output: 2200; (20 ms / 0,5 Hz) mA
- Switching frequency AC: 25 Hz
- Switching frequency DC: 100 Hz
- Short-circuit proof: no
- Overload protection: no
- Real sensing range Sr: 5 � 10 % mm
- Operating distance: 0...4.05 mm
- Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
- Hysteresis: 3...15 % of Sr
- Switch-point drift: -10...10 % of Sr
- Ambient temperature: -25...80 �C
- Protection: IP 67
- EMC: EN 60947-5-2
- MTTF: 609 years
- UL approval: Ta: 0...40 �C
- Enclosure type: Type 1
- Weight: 62.6 g
- Mounting: flush mountable
- Material: brass white bronze coated; PC
- Display: Switching status: 1 x LED, red
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 48 minutes.

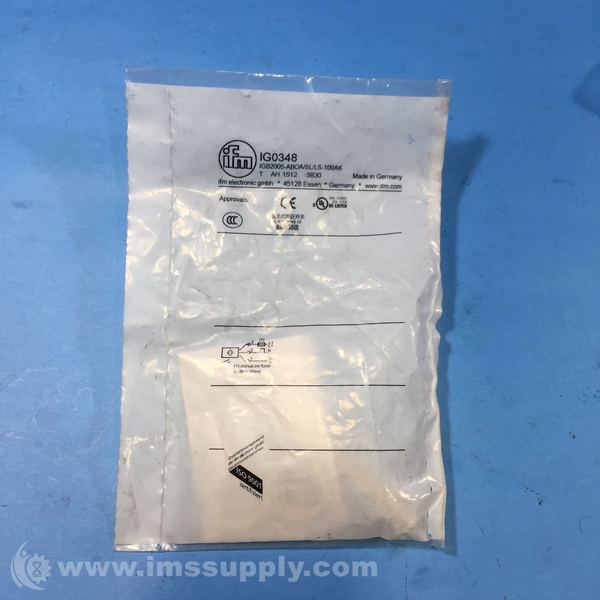

New - Missing Box (Special):
Missing sensor nuts.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 48 minutes.
