IFM IG5793 INDUCTIVE SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: IG5793
IMS Product Code: 1845405
Packaging: Sold Individually
Description:

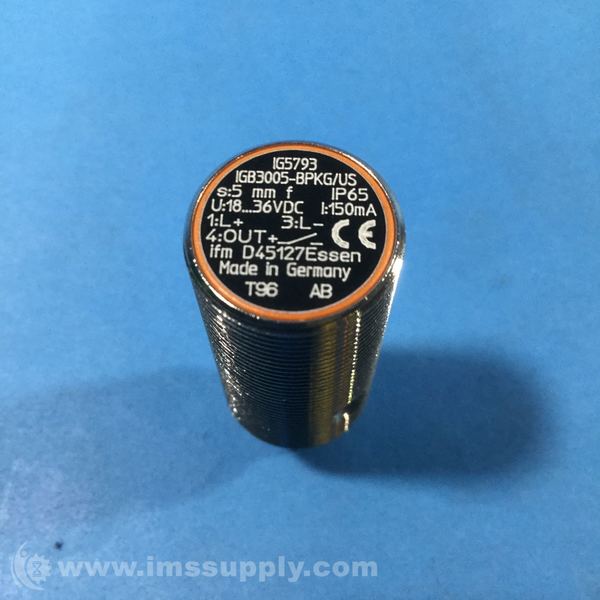

Ifm IG5793 Inductive Sensor
M18 x 1 threaded barrel proximity sensor with PNP output and 5mm sensing range
Specifications
- Electrical design: PNP
- Output function: normally open
- Sensing range: 5 mm
- Housing: Threaded type
- Dimensions: M18 x 1 / L = 50
- Operating voltage: 10...30 DC
- Permanent current rating of switching output DC: 100 mA
- Switching frequency DC: 500 Hz
- Protection class: II
- Reverse polarity protection: yes
- Short-circuit protection: yes
- Overload protection: yes
- Ambient temperature: -25...80 degrees C
- Protection: IP 67
- EMC: EN 60947-5-2
- Material: housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
- Display: Switching status
- Switching status: 4 x LED, red
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 12 hours and 48 minutes.
