IFM IGC204 INDUCTIVE SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: IGC204
IMS Product Code: 1910310
Packaging: Sold Individually
Description:

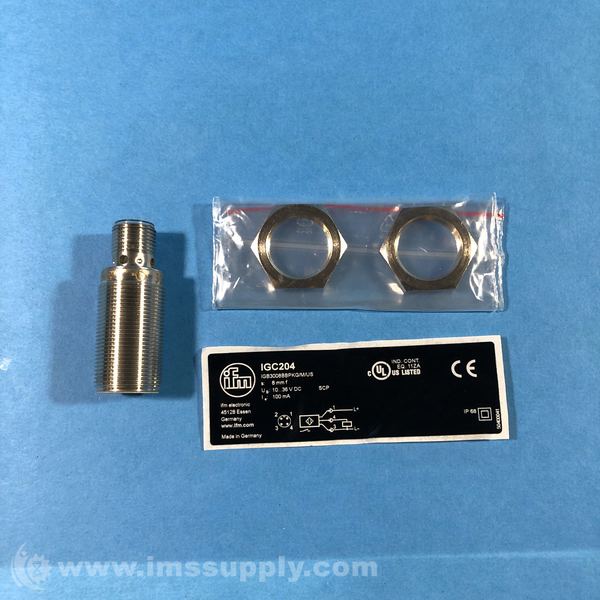

Ifm IGC204 Inductive Sensor
Inductive sensor with PNP output and normally open function, 8mm sensing range.
Specifications
- Electrical design: DC PNP
- Output function: Normally open
- Sensing range [mm]: 8
- Housing: Threaded type
- Dimensions [mm]: M18 x 1 / L = 45
- Operating voltage [V]: 10...30 DC
- Current consumption [mA]: < 10
- Permanent current rating of switching output DC [mA]: 100
- Switching frequency DC [Hz]: 400
- Short-circuit protection: yes
- Overload protection: yes
- Hysteresis [% of Sr]: 3...15
- Ambient temperature [�C]: -25...70
- Protection: IP 68

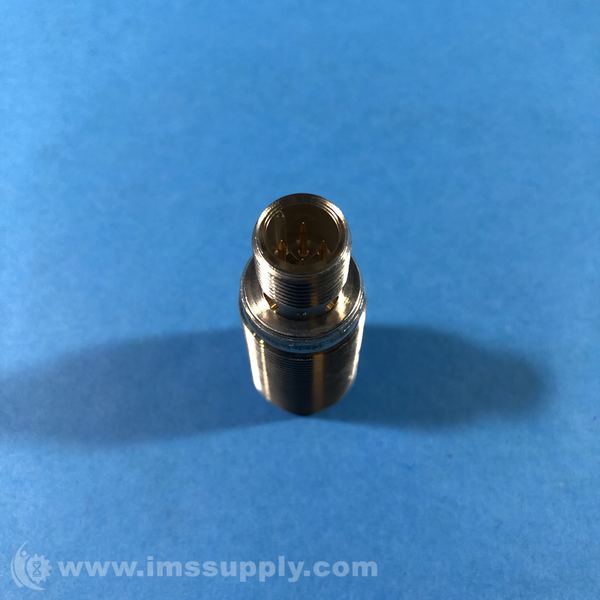

- Connection: M12 connector
- Output status indication: LED yellow (4 x 90�)

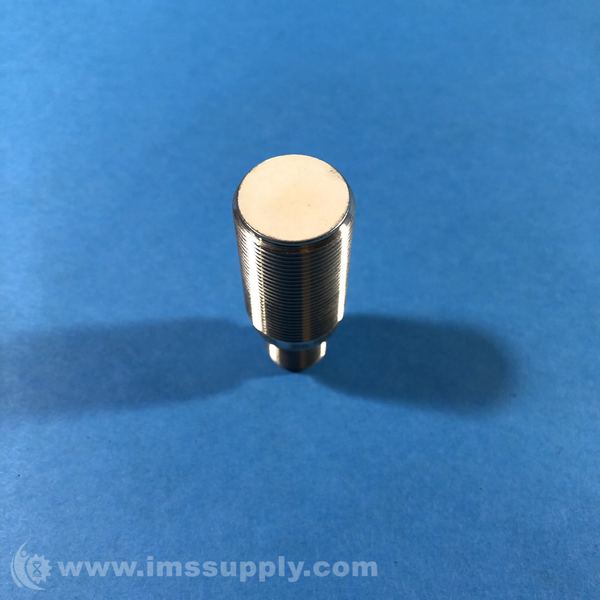

- Housing materials: housing: Brass white bronze coated, active face: LCP
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
