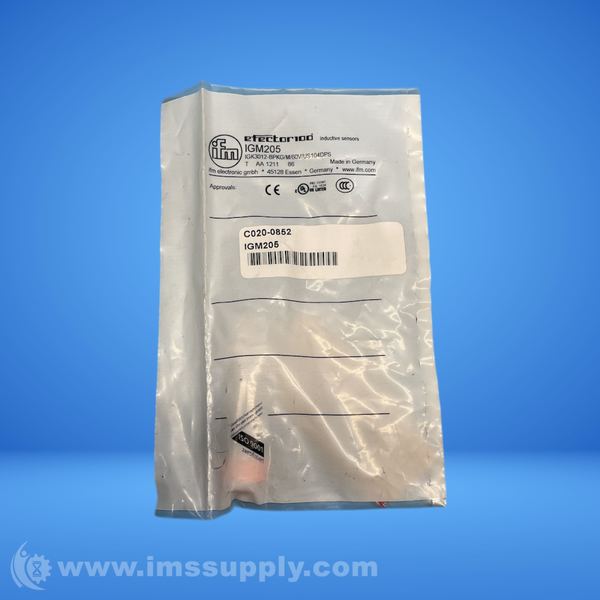

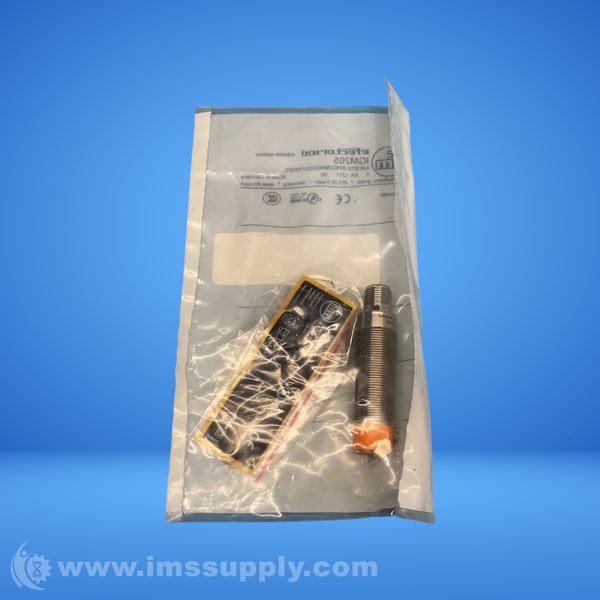

IFM IGM205 INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: IGM205
IMS Product Code: 2131176
Packaging: Sold Individually
Description:
Ifm IGM205 Inductive Proximity Sensor
Inductive proximity sensor for mobile applications with 12mm non-flush sensing range, M18x1 stainless steel housing, 3-wire PNP normally open output, and micro DC quick disconnect.
Specifications
- Electrical design: PNP
- Output function: normally open
- Sensing range: 12 mm
- Housing: Threaded type
- Dimensions: M18 x 1 / L = 70
- Operating voltage: 10...60 DC
- Current consumption: < 10 mA
- Protection class: II
- Reverse polarity protection: yes
- Max. voltage drop switching output DC: 2.5 V
- Permanent current rating of switching output DC: 200 mA
- Switching frequency DC: 200 Hz
- Short-circuit protection: yes
- Overload protection: yes
- Real sensing range Sr: 12 ± 10 %
- Assured operating distance: 0...9.72 mm
- Increased sensing range: yes
- Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.45 / copper: 0.35
- Hysteresis: 1...20 % of Sr
- Switch-point drift: -10...10 % of Sr
- Ambient temperature: -40...85 degrees C
- Protection: IP 67; IP 69K
- MTTF: 1112 years
- Weight: 53 g
- Mounting: non-flush mountable
- Thread designation: M18 x 1
- Material: housing: stainless steel; sensing face: LCP natural; LED window: PEI; lock nuts: brass white bronze coated
- Tightening torque: 50 Nm
- Display: Switching status 4 x 90° LED, yellow
- Type: Inductive proximity sensor
- Application: Mobile applications
- Diameter: 18mm
- Housing Material: Stainless steel
- Output: 3 wire PNP, N.O.
- Connector: Micro DC quick disconnect
New - Open Box (Special):
Missing two (2) lock nuts.
Availability: 1 In Stock
Ships on Monday, October 6, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 4 In Stock
Ships on Monday, October 6, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
