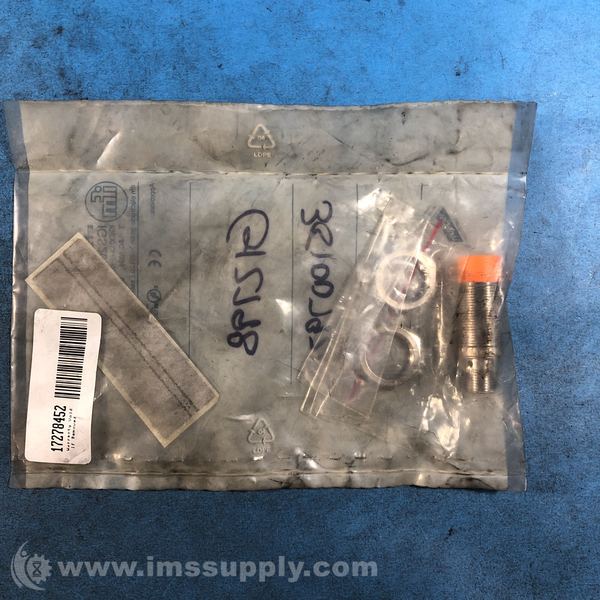

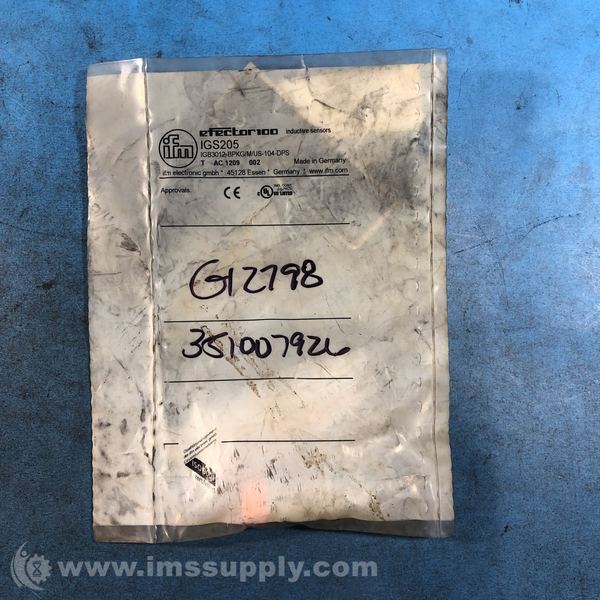

IFM IGS205 INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: IGS205
IMS Product Code: 2011516
Packaging: Sold Individually
Description:
Ifm IGS205 Inductive Proximity Sensor
Inductive Proximity Sensor 12mm Non-Flush 3-Wire NO
Specifications
- Electrical design: PNP
- Output function: normally open
- Sensing range [mm]: 12
- Housing: Threaded type
- Dimensions [mm]: M18 x 1 / L = 50
- Operating voltage [V]: 10...30 DC
- Current consumption [mA]: < 10
- Protection class: II
- Reverse polarity protection: yes
- Max. voltage drop switching output DC [V]: 2.5
- Permanent current rating of switching output DC [mA]: 100
- Switching frequency DC [Hz]: 300
- Short-circuit protection: yes
- Overload protection: yes
- Real sensing range Sr [mm]: 12 ± 10 %
- Operating distance [mm]: 0...9.72
- Increased sensing range: yes
- Correction factor: steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.4 / copper: 0.3
- Hysteresis [% of Sr]: 3...15
- Switch-point drift [% of Sr]: -10...10
- Ambient temperature [degrees C]: -25...70
- Protection: IP 67
- MTTF [years]: 1134
- Weight [g]: 41.8
- Mounting: non-flush mountable
- Thread designation: M18 x 1
- Material: housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
- Display: Switching status
- Connection: Connector: 1 x M12; coding: A; Contacts: gold-plated
