IFM IGS245 INDUCTIVE PROXIMITY SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: IGS245
IMS Product Code: 1824545
Packaging: Sold Individually
Description:

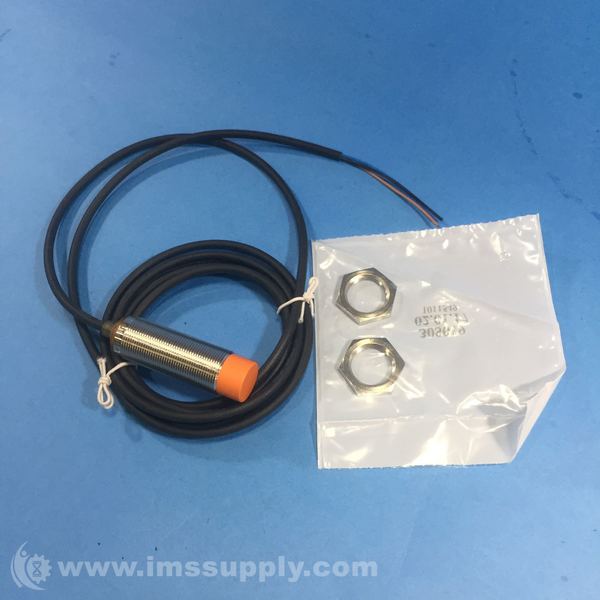

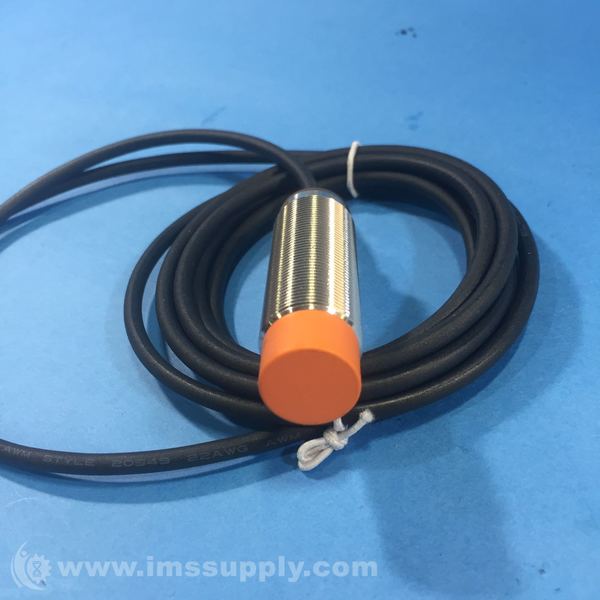

Ifm IGS245 Inductive Proximity Sensor
Cylindrical inductive proximity sensor with PNP output, normally open, 12mm sensing range, unshielded, 10-30V DC supply, 100mA current rating, IP65/IP66/IP67/IP68/IP69K protection, brass body with white bronze coating, 2m PUR cable connection.
Specifications
- Proximity Sensor Style: Cylindrical Proximity Sensor
- Proximity Sensing Method: Inductive
- Proximity Sensor Power Requirement: 10 to 30V DC
- Proximity Sensor Output Circuit Type: 3 Wire PNP
- Output Mode: NO
- Max. Detecting Distance: 12 mm
- Proximity Sensor Electrical Connection: 2m Cable
- Shielded / Unshielded: Unshielded
- Proximity Sensor Operating Frequency: 300 Hz
- Case Material: Brass White Bronze Coated
- Max. Current Load: 100mA
- IP Rating: IP65, IP66, IP67, IP68, IP69K
- Operating Temp. Range: -40 Degrees to 185 Degrees F
- Thread designation: M18 x 1
- Connection: Cable: 2 m, PUR, 3 x 0.34 mm˛
- Operating voltage [V]: 10...30 DC
- Switching frequency DC [Hz]: 300
- Protection class: III
- Reverse polarity protection: yes
- Short-circuit protection: yes
- Overload protection: yes
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 6 hours and 31 minutes.
