IFM LK3124 ELECTRONIC LEVEL SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: LK3124
IMS Product Code: 2146473
Packaging: Sold Individually
Description:

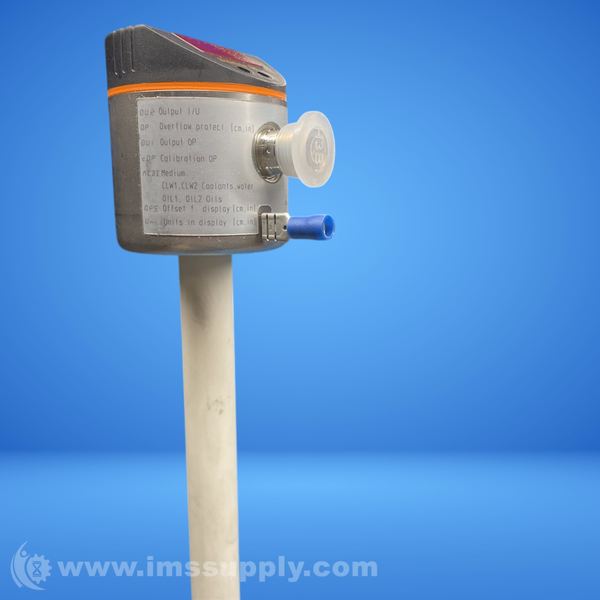

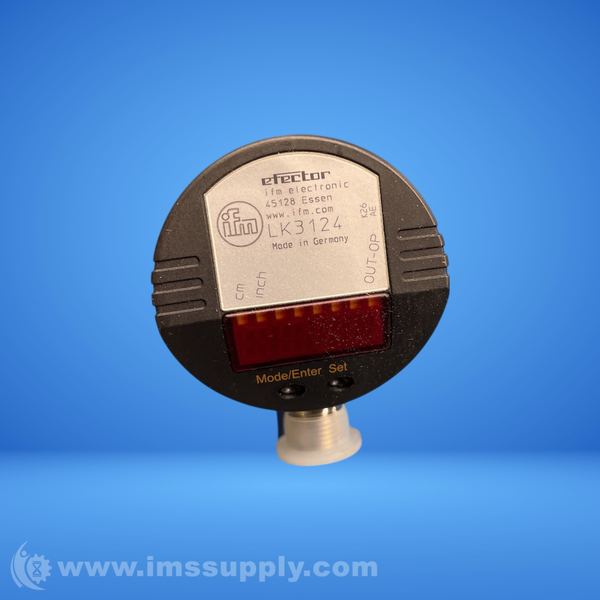

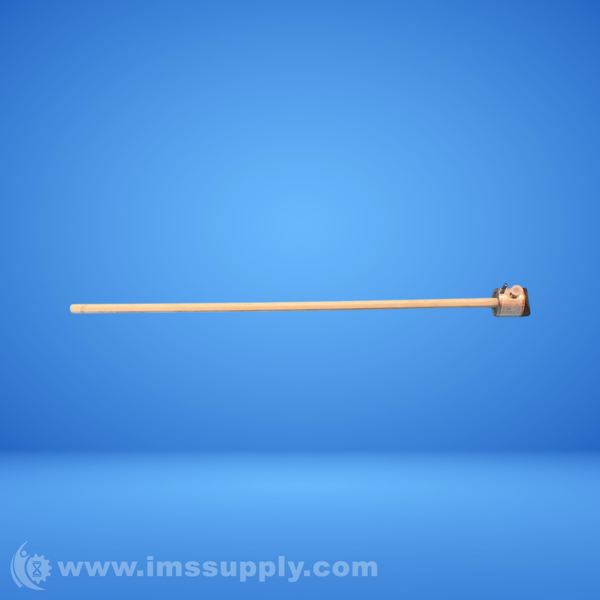

Ifm LK3124 Electronic Level Sensor
Capacitive electronic level sensor with IO-Link interface, DC PNP/NPN output, 728mm probe length, suitable for various media including coolants and oils.
Specifications
- type: Inductive Sensor
- output function: normally open / normally closed
- electrical design: DC PNP
- operating voltage [V]: 10...36 DC
- current rating [mA]: 200
- connection: M12 connector
- number of digital outputs: 1
- number of analog outputs: 1
- probe length L [mm]: 728
- dielectric constant of the medium: > 2
- maximum speed of the change of level [mm/s]: 300
- tank pressure [bar]: 0.5
- medium temperature [°C]: 0...35; (with climate tube E43102: 35...55 degrees C)
- operating voltage [V]: 18...30 DC
- current consumption [mA]: < 50
- protection class: III
- measuring principle: capacitive
- output signal: switching signal; analog signal; IO-Link
- electrical design: PNP/NPN
- output function: normally open / closed; (configurable)
- max. voltage drop switching output DC [V]: 2.5
- permanent current rating of switching output DC [mA]: 200
- analog current output [mA]: 4...20, invertible
- max. load [O]: 500
- analog voltage output [V]: 0...10, invertible
- min. load resistance [O]: 2000
- short-circuit protection: yes
- type of short-circuit protection: thermal, pulsed
- overload protection: yes
- active range A [mm]: 585
- inactive range I1 / I2 [mm]: 104 / 39
- set point SP [mm]: 60...590
- reset point rP [mm]: 50...580
- hysteresis, OP [mm]: 4
- measuring error [% of the final value]: ± 5
- repeatability: ± 2
- resolution [mm]: 5
- zero signal (voltage) [V]: 0
- zero signal (current) [mA]: 4.0
- full signal (voltage) [V]: 10
- full signal (current) [mA]: 20
- communication interface: IO-Link
- transmission type: COM2 (38,4 kBaud)
- IO-Link revision: 1.1
- SDCI standard: IEC 61131-9
- SIO mode: yes
- required master port class: A
- process data analog: 2
- process data binary: 1
- min. process cycle time [ms]: 3.2
- ambient temperature [°C]: 0...60
- storage temperature [°C]: -25...80
- protection: IP 67
