IFM MK5159 T-SLOT CYLINDER SENSOR
Quick Overview
Manufactured By: IFM
Manufacturer Part Number: MK5159
IMS Product Code: 1937960
Packaging: Sold Individually
Description:

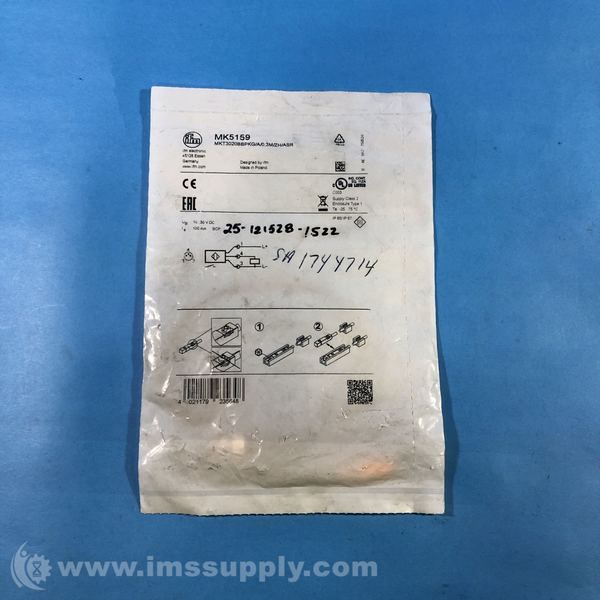

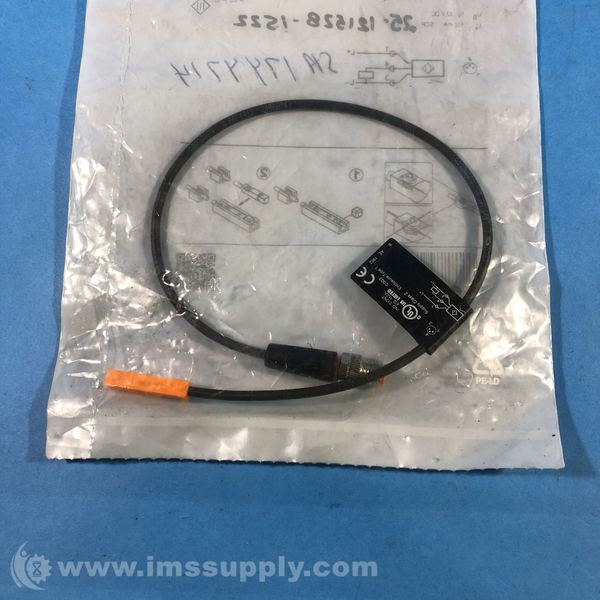

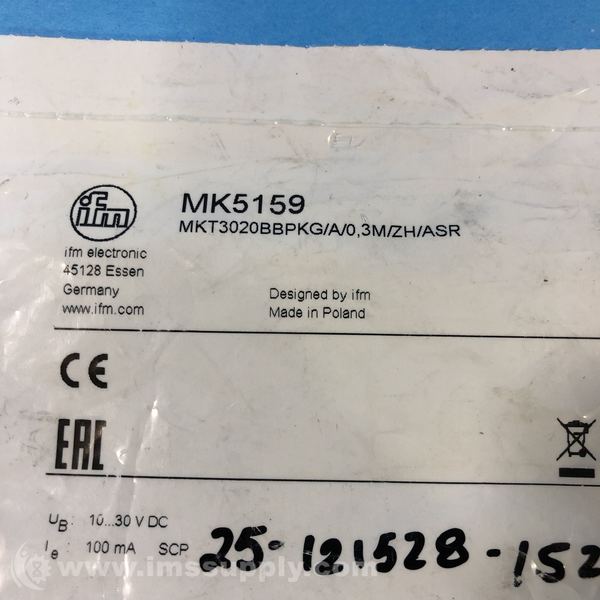

Ifm MK5159 T-Slot Cylinder Sensor
T-Slot Cylinder Sensor, 3-wire DC PNP, N.O. output, 0.3m pigtail M8
Specifications
- Operating voltage: 10...30 V DC
- Output function: normally open
- Dimensions: 25.3 x 5 x 6.5 mm
- Current consumption: < 10 mA
- Protection class: III
- Reverse polarity protection: yes
- Max. power-on delay time: 30 ms
- Max. voltage drop switching output DC: 2.5 V
- Permanent current rating of switching output DC: 100 mA
- Switching frequency DC: 6000 Hz
- Short-circuit protection: yes
- Type of short-circuit protection: yes (non-latching)
- Overload protection: yes
- Magnetic sensitivity: 2 mT
- Travel speed: > 10 m/s
- Hysteresis: 1 mm
- Repeatability: < 0.2 mm
- Ambient temperature: -25...85 degrees C
- Protection: IP 65; IP 67
- MTTF: 2064 years
- Weight: 14.3 g
- Mounting: flush mountable
- Type of mounting: fastening clamp with combined slot / hexagon socket, width across flats 1.5
- Cylinder type: T-slot cylinders
- Material: housing: PA; Fastening clamp: stainless steel
- Display: 1 x LED, yellow
- Connection: Cable: 0.3 m, PUR; Connector: 1 x M8
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 3 In Stock
Ships today if ordered in the next 11 hours and 59 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 59 minutes.
